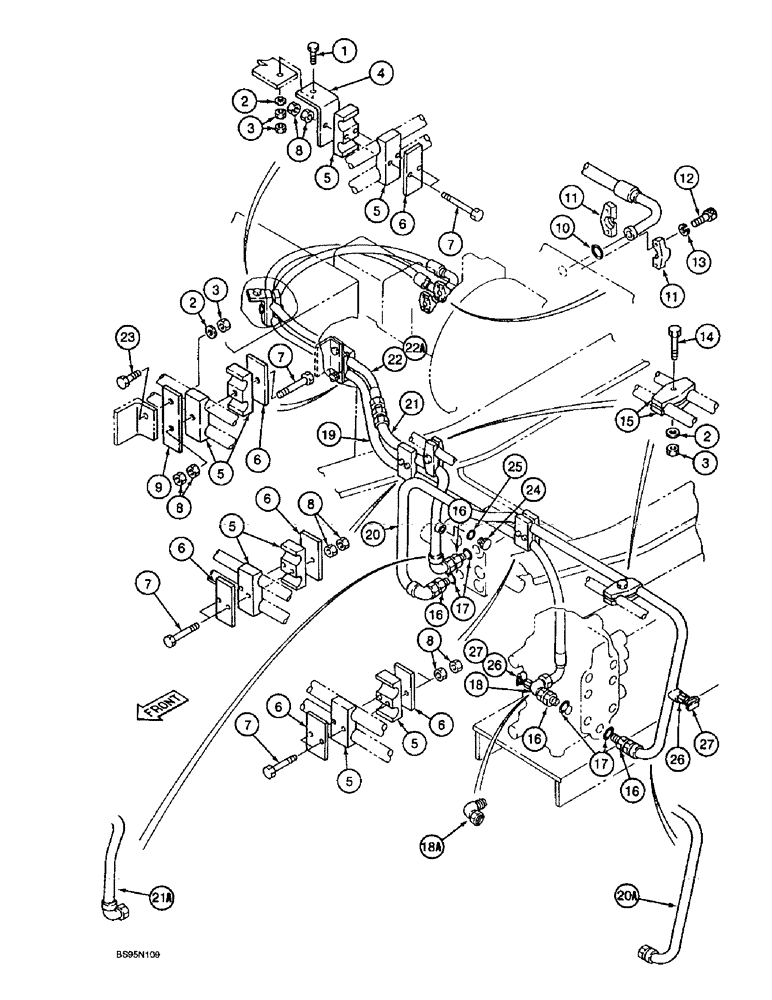

Запчасти Case 9010 (8-08) - BASIC HYDRAULIC CIRCUIT, PUMP TO VALVE (08) - HYDRAULICS

1

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 35 mm, grade 10.9

1шт.

2

150811A1

WASHER

flat, special 12 mm was 150988A1

4шт.

3

829-1312

NUT,M12 x 1.75, Cl 10

hex 12 mm - 1.75, class 10

5шт.

4

152921A1

BRACKET

mounting

1шт.

5

152875A1

HOSE CLAMP

CLAMP double

8шт.

6

152876A1

PLATE, SPACER

PLATE hose clamp

6шт.

7

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

- hex, 10 - 1.5 x 80 mm, class 10.9

8шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

16шт.

9

152994A1

PLATE

hose clamp

1шт.

10

153628A1

O-RING

at pump

2шт.

11

153458A1

FLANGE

split pressure line retaining, at pump

4шт.

12

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

8шт.

13

112309A1

LOCK WASHER

lock, special was 112310A1

8шт.

14

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

hex, 12 - 1.75 x 65 mm, class 10.9

2шт.

15

152742A1

COLLAR

CLAMP tube

4шт.

16

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER straight hydraulic, Includes: Ref. 17

4шт.

17

154503A1

O-RING

adapter

1шт.

18

156641A1

ADAPTER

ELBOW 90 degree with test port, if used

1шт.

18a

150643A1

ELBOW

90 degree without test port, if used

1шт.

19

153252A1

HYDRAULIC HOSE

103-1/8 inch (2620 mm) long - Pump to control valve

1шт.

20

156643A1

TUBE

auxiliary valve to control valve, with test port, if used

1шт.

20a

153264A1

TUBE,1267.6, 353.8 mm Length

auxiliary valve to control valve, without test port, if used

1шт.

21

156642A1

TUBE

at auxiliary valve from pump, with test port, if used

1шт.

21a

156936A1

TUBE

at auxiliary valve from pump, without test port, if used

1шт.

22

153254A1

HOSE ASSY.

HOSE, pump to auxiliary valve, used with ref 21 test ported tube, if used

1шт.

22a

156938A1

HOSE ASSY.

HOSE, 55-1/2 inch (1410 mm) long to auxiliary valve, used with ref 21A tube without test port

1шт.

23

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 30 mm, class 10.9

1шт.

24

153105A1

PLUG

port if used

1шт.

25

154475A1

O-RING

plug, if used

1шт.

26

150499A1

BUSHING

ADAPTER straight 9/16 inch female straight thread x 3/8 inch PT if used

2шт.

27

150290A1

PLUG

oil coupling, if used

2шт.
