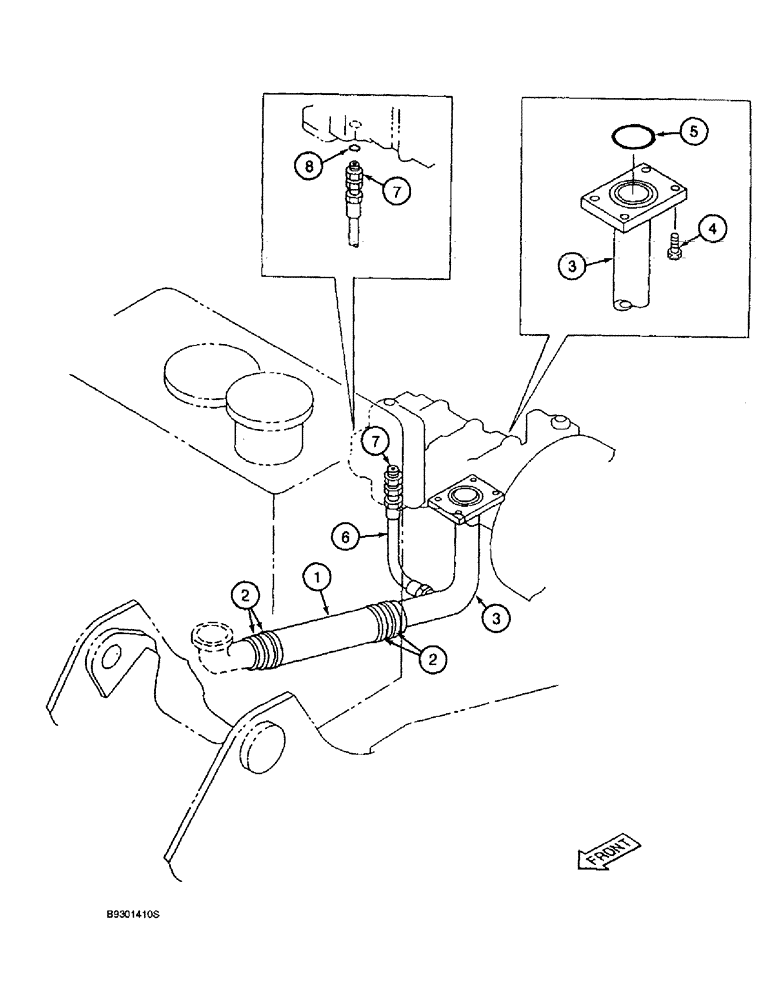

Запчасти Case 9010 (8-06) - BASIC HYDRAULIC CIRCUIT, RESERVOIR TO PUMP (08) - HYDRAULICS

1

152637A1

HOSE,60.50 mm ID x 345.00 mm

- at reservoir 60.50 mm ID x 345.00 mm

1шт.

2

150893A1

CLAMP

adjustable

4шт.

3

153356A1

TUBE

with tapped boss

1шт.

4

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 35 mm, grade 10.9

4шт.

5

154679A1

O-RING

at pump

1шт.

6

151105A1

HYDRAULIC HOSE,450.00 mm

- To pump 450.00 mm

1шт.

7

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER straight, Includes: Ref. 8

1шт.

8

154503A1

O-RING

adapter

1шт.
