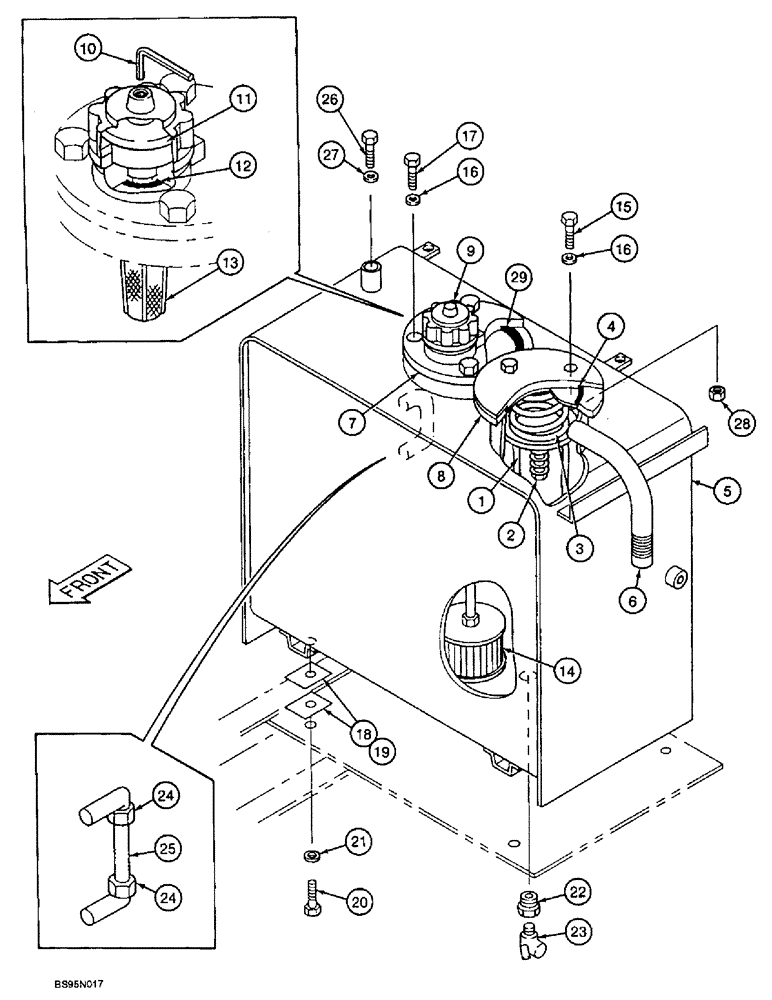

Запчасти Case 9010 (8-02) - HYDRAULIC RESERVOIR (08) - HYDRAULICS

1

153190A1

HYDRAULIC OIL FILTER

ELEMENT filter, return hydraulic oil

1шт.

2

153191A1

VALVE

relief hydraulic reservoir

1шт.

3

151623A1

COMPRESSION SPRING

SPRING compression

1шт.

4

154789A1

O-RING

return filter cover, was 151629A1

1шт.

158861A1

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY hydraulic oil was 153069A1, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

RESERVOIR hydraulic oil

1шт.

6

NSS

NOT SOLD SEPARAT

TUBE weld-on

1шт.

7

153451A1

COVER

air breather

1шт.

8

152597A1

COVER

return filter

1шт.

151665A1

BREATHER

ASSEMBLY air oil fill, Includes: Ref. 9-13

1шт.

9

NSS

NOT SOLD SEPARAT

COVER breather, with screw

1шт.

10

153611A1

CROSS SPANNER

WRENCH allen, 4 mm

1шт.

11

151670A1

FILTER, ENGINE OIL

STRAINER hydraulic oil

1шт.

12

154539A1

O-RING

oil filter

1шт.

13

151673A1

STRAINER ASSY.

SCREEN oil fill

1шт.

14

151620A1

STRAINER ASSY.

STRAINER hydraulic oil lower, suction

1шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

8шт.

17

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

18

150166A1

SHIM

1/32 inch (0.8 mm) thick

1шт.

19

150479A1

SHIM

5/64 inch (2.0 mm) thick

1шт.

20

31141R1

BOLT,Hex, M16 x 2 x 35mm, Grade 10.9

4шт.

21

150991A1

WASHER

flat, special 16 mm

4шт.

22

151073A1

BUSHING

reducer

1шт.

23

150962A1

COCK, DRAIN

VALVE drain reservoir

1шт.

24

150527A1

ELBOW

90 degree, special oil level gauge

2шт.

25

150531A1

TUBE,8 mm ID, 10 mm OD, 122 mm Length

sight gauge oil level

1шт.

26

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 20 mm, class 10.9

1шт.

27

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

28

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

29

154837A1

O-RING

air breather cover

1шт.

15

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.
