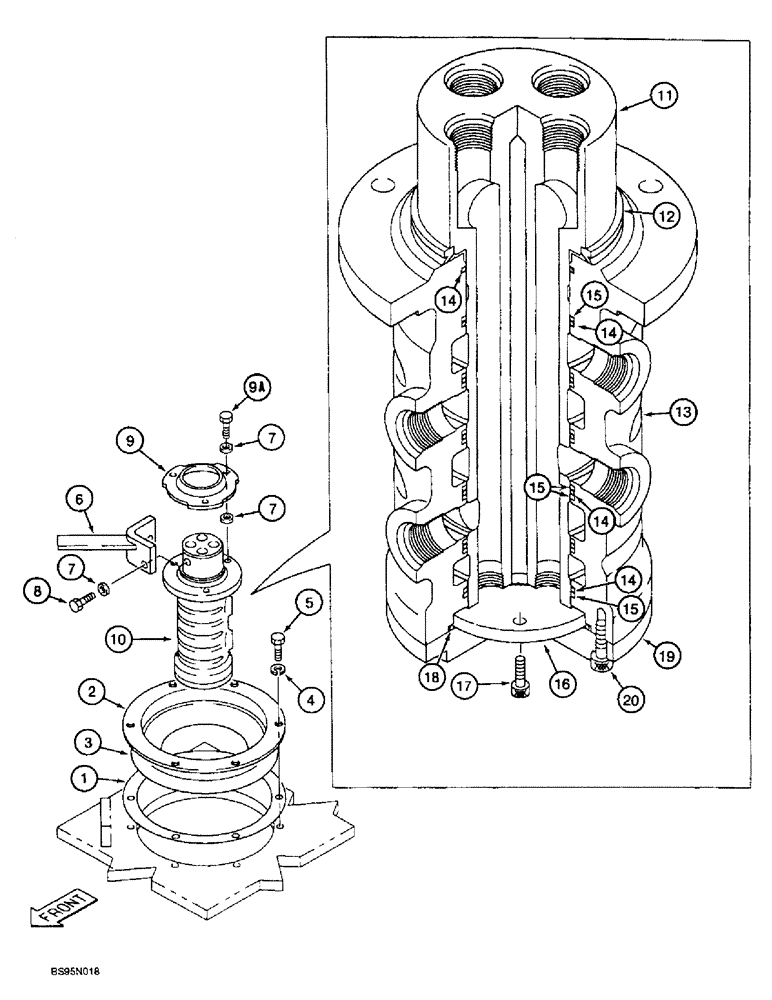

Запчасти Case 9010 (6-16) - HYDRAULIC SWIVEL (06) - POWER TRAIN

1

152596A1

RUBBER SEAL

GASKET rubber

1шт.

2

152635A1

RETAINER

wiper ring

1шт.

3

151009A1

SEALING RING

RINGwiper

1шт.

4

892-10012

LOCK WASHER,M12

WASHER lock, 12 mm

6шт.

5

628-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9

6шт.

6

152950A1

BAR

LEVER lock

1шт.

7

150811A1

WASHER

flat, special 12 mm was 150988A1 (5-8)

5шт.

8

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 30 mm, class 10.9

2шт.

9

151390A1

COVER

swivel

1шт.

9a

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 35 mm, grade 10.9, For models without washer under bolt head

3шт.

9a

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

For models with washer under bolt head Hex, M12 x 40, 10.9, Full Thd

3шт.

10

152945A1

HYDRAULIC SWIVEL

SWIVEL ASSEMBLY hydraulic, Includes: Ref. 11-20

1шт.

11

152990A1

SHAFT

swivel

1шт.

12

151814A1

SEAL,72mm ID x 84mm OD x 11mm Thk

RING swivel shaft

1шт.

13

152947A1

ROTOR

hydraulic swivel

1шт.

14

154689A1

O-RING

to shaft seal

7шт.

15

150598A1

BACK-UP RING

RING back-up, Serial Range: rotor-shaft

10шт.

16

152992A1

PLATE

thrust

1шт.

17

861-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

- hex socket, 6 - 1.0 x 20 mm, class 12.9

4шт.

18

154713A1

O-RING

swivel base

1шт.

19

152949A1

COVER

BASE swivel

1шт.

20

861-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 25 mm, class 12.9

4шт.
