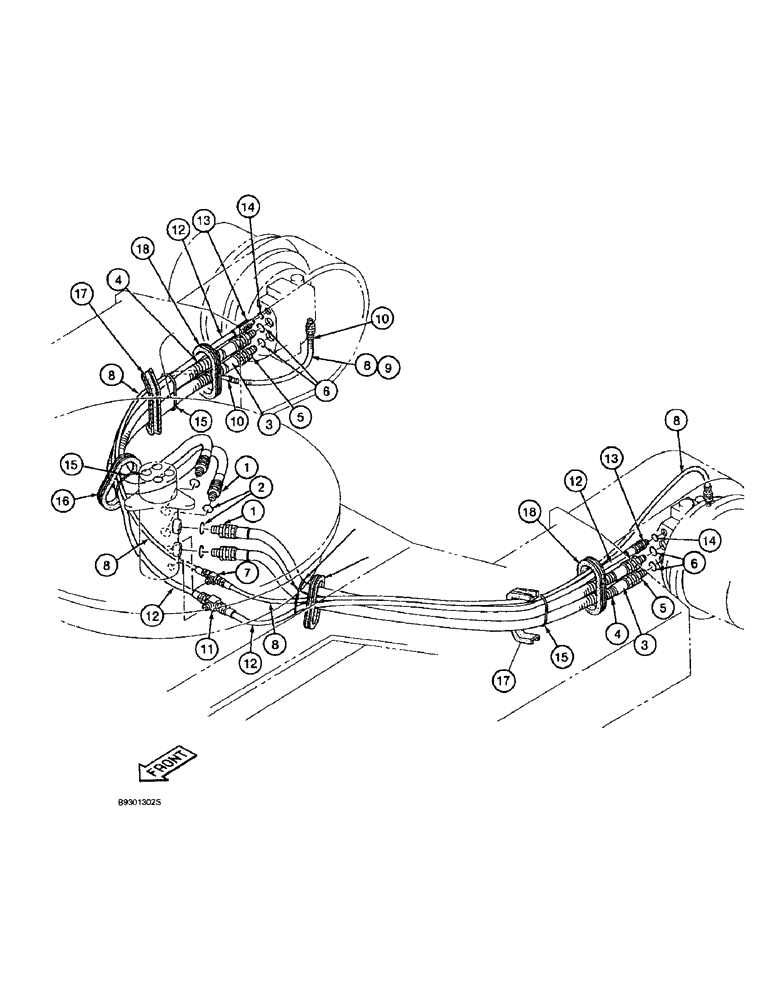

Запчасти Case 9010 (6-14) - TRACK DRIVE HYDRAULIC CIRCUIT, SWIVEL TO TRACK DRIVE MOTORS (06) - POWER TRAIN

1

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER straight at swivel, Includes: Ref. 2

4шт.

2

154503A1

O-RING

, Serial Range: O-RING-swivel

1шт.

3

150961A1

HYDRAULIC HOSE,1680.00 mm

- Side of swivel to track drive motors 1680.00 mm

4шт.

4

151046A1

GUARD

hose

4шт.

5

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER straight to track drive motor, Includes: Ref. 6

4шт.

6

154503A1

O-RING

at track drive motor

1шт.

7

152509A1

TEE

special to lowest rear side port of swivel

1шт.

8

150966A1

HOSE ASSY.

HOSE, 78-3/4 inch (2000 mm) long swivel to track drive motors

2шт.

9

150394A1

PLASTIC-RUBBER TUBE,13 mm ID, 17.5 mm OD, 500 mm Length

SLEEVE corrugated

1шт.

10

150067A1

MOUNTING CLIP

STRAP tie 150 mm long

2шт.

11

152195A1

TEE

special at lower rear side port of swivel

1шт.

12

150963A1

HYDRAULIC HOSE,12.70 mm ID x 1650.00 mm

- Lower rear side of swivel 12.70 mm ID x 1650.00 mm

2шт.

13

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ADAPTER straight at track drive motor, Includes: Ref. 14

2шт.

14

154487A1

O-RING

adapter

1шт.

15

150071A1

MOUNTING CLIP

STRAP tie 365 mm long

4шт.

16

150950A1

CUSHION

GROMMET rubber

2шт.

17

150956A1

CUSHION

GROMMET rubber

2шт.

18

150953A1

RUBBER BLOCK

GROMMET rubber

2шт.
