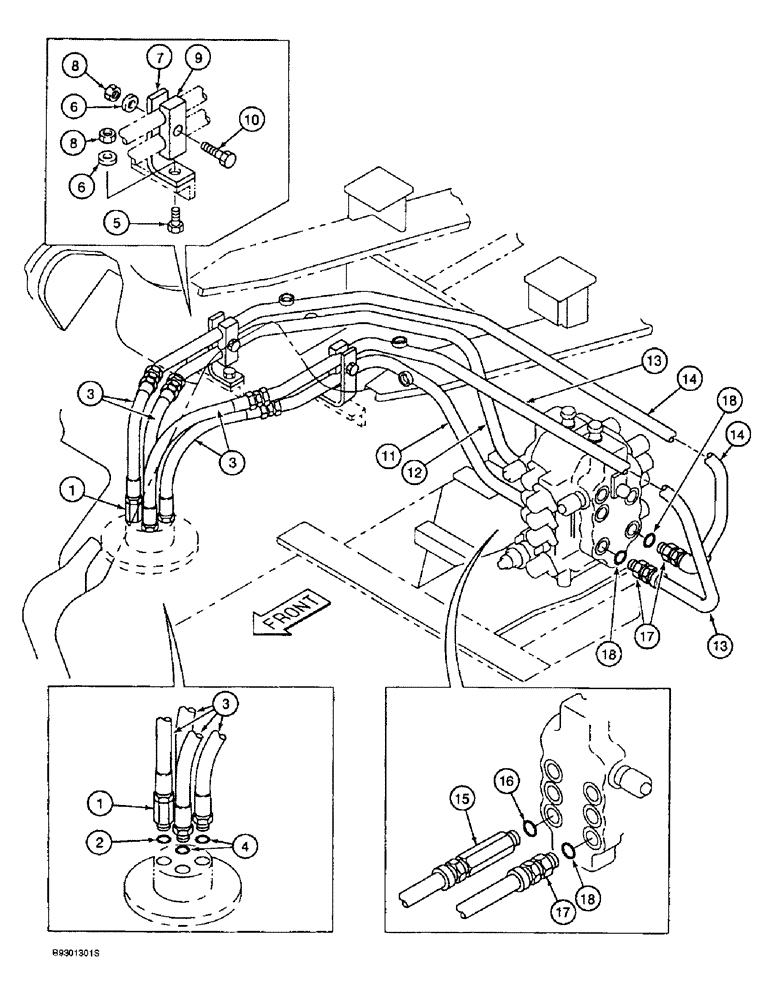

Запчасти Case 9010 (6-12) - TRACK DRIVE HYDRAULIC CIRCUIT, CONTROL VALVE TO HYDRAULIC SWIVEL (06) - POWER TRAIN

1

152012A1

ELEC CONNECTOR

CONNECTOR straight straight, Includes: Ref. 2

1шт.

2

154503A1

O-RING

connector

1шт.

3

152556A1

HYDRAULIC HOSE,19.00 mm ID x 490.00 mm

At swivel, Includes Ref. 4 19.00 mm ID x 490.00 mm

4шт.

4

154503A1

O-RING

, Serial Range: O-RING-swivel

1шт.

5

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 35 mm, class 10.9

2шт.

6

150988A1

WASHER

flat, special 12 mm

4шт.

7

152559A1

BRACKET

mounting

2шт.

8

829-1312

NUT,M12 x 1.75, Cl 10

hex 12 mm - 1.75, class 10

4шт.

9

152085A1

COLLAR

CLAMP tube

2шт.

10

828-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

hex 12 - 1.75 x 65 mm, class 10.9

2шт.

11

152648A1

TUBE

lower R.H. front valve, Serial Range: port-swivel

1шт.

12

152649A1

TUBE,27.2 mm OD, 879.5, 493.8 mm Length

lower R.H. rear valve port to swivel

1шт.

13

152647A1

TUBE,981.5, 503.2 mm Length

lower L.H. front valve port to swivel

1шт.

14

152652A1

TUBE,1305.7, 577.9 mm Length

lower L.H. rear valve port to swivel

1шт.

15

152019A1

ELEC CONNECTOR

ADAPTER straight straight, Includes: Ref. 16

1шт.

16

154503A1

O-RING

adapter

1шт.

17

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER straight straight, Includes: Ref. 18

3шт.

18

154503A1

O-RING

adapter

1шт.
