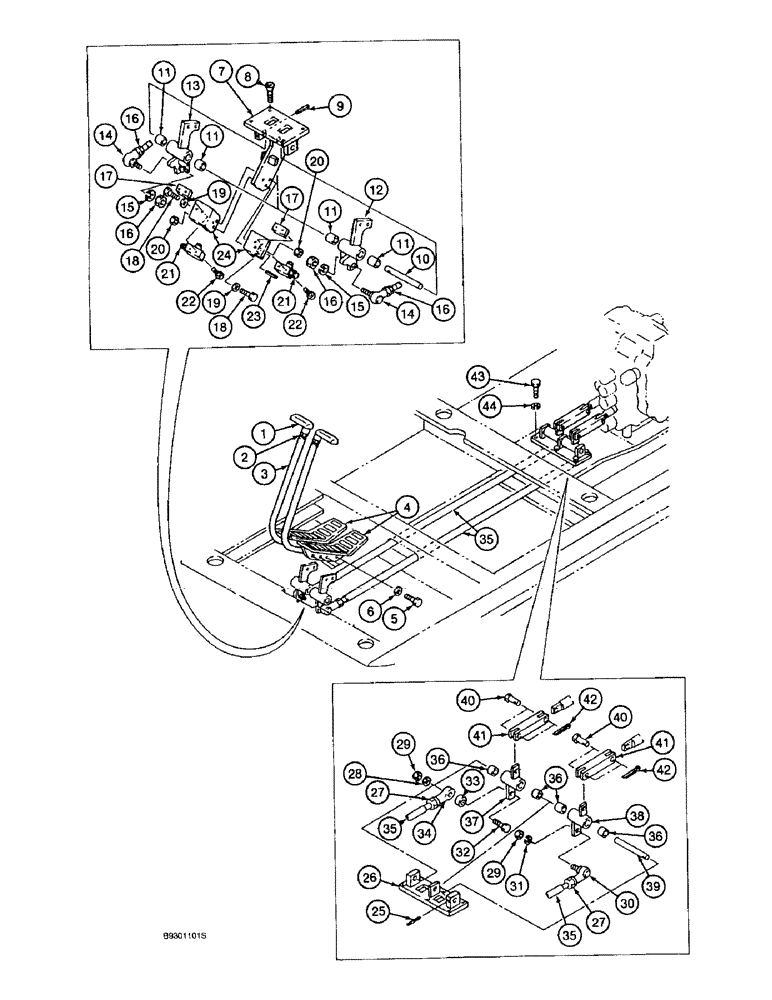

Запчасти Case 9010 (6-10) - TRACK DRIVE CONTROLS (06) - POWER TRAIN

1

150347A1

KNOB

HANDLE control track drive

2шт.

2

150373A1

NUT

hex 12 mm - 1.25, class 12.9 jam, special

2шт.

3

151634A1

LEVER

hand control track drive

2шт.

4

150524A1

PEDAL

foot control

2шт.

5

150555A1

BOLT,High Strength, Hex, M10 x 30mm

BOLT hex 10 - 1.5 x 30 mm, class 10.9 pedal mounting

8шт.

6

150604A1

WASHER

special

8шт.

7

153036A1

BRACKET

linkage mounting

1шт.

8

150403A1

SCREW,Spcl, Flat Hd Csk, M10 x 20mm

hex socket, flat head 10 - 1.5 x 20 mm special

4шт.

9

738-1632

LOCK PIN,M6 x 32, Slotted

PIN roll, 6 x 32 mm

1шт.

10

150516A1

PIN

SHAFT cross, control linkage

1шт.

11

150505A1

BEARING, NEEDLE

BEARING needle bellcrank

4шт.

12

153034A1

LINK ASSY.

BELLCRANK track drive linkage left-hand

1шт.

13

153032A1

WASHER

BELLCRANK track drive linkage right-hand

1шт.

14

151954A1

END

JOINT ball rod end

2шт.

15

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

16

829-1412

NUT,M12, Cl 10.9

hex 12 mm - 1.75, class 10

4шт.

17

151150A1

BRACKET

SPACER limit switch bracket

2шт.

18

827-6030

BOLT,Hex, M6 x 30mm, Cl 10.9

- hex, 6 - 1 x 30 mm, class 10.9

2шт.

19

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

20

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

21

151143A1

SWITCH

limit motion alarm

2шт.

22

151147A1

SET SCREW

SCREW set, special special

4шт.

23

738-1316

LOCK PIN,M3 x 16, Slotted

PIN roll, 3 x 16 mm

1шт.

24

151140A1

BRACKET

switch mounting

2шт.

25

738-1632

LOCK PIN,M6 x 32, Slotted

PIN roll, 6 x 32 mm

1шт.

26

153020A1

BRACKET

linkage mounting at valve

1шт.

27

825-12412

NUT,M12 x 1.75, Cl 8, LH

hex, 12 mm - 1.75, left-hand thread

2шт.

28

150811A1

WASHER

flat, special 12 mm

1шт.

29

829-1412

NUT,M12, Cl 10.9

hex 12 mm - 1.75, class 10

2шт.

30

151970A1

END

JOINT ball rod end

1шт.

31

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

32

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

hex 12 - 1.75 x 50 mm, class 10.9

1шт.

33

152755A1

SPACER

13.7 ID x 21.7 OD x 10 mm, Serial Range: bellcrank-joint

1шт.

34

151051A1

END

JOINT rod end

1шт.

35

152976A1

ROD

linkage track drive

2шт.

36

150505A1

BEARING, NEEDLE

BEARING needle bellcrank

4шт.

37

153015A1

LINK ASSY.

BELLCRANK track drive linkage right-hand, at valve

1шт.

38

153017A1

LINK

BELLCRANK track drive linkage left-hand, at valve

1шт.

39

153311A1

PIN

SHAFT cross linkage

1шт.

40

151420A1

PIN

clevis

4шт.

41

152483A1

YOKE

LINK valve, Serial Range: spool-bellcrank

2шт.

42

153181A1

COTTER PIN

CLIP hair pin

4шт.

43

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

hex, full threads, 10 - 1.5 x 25 mm, class 10.9

6шт.

44

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

6шт.
