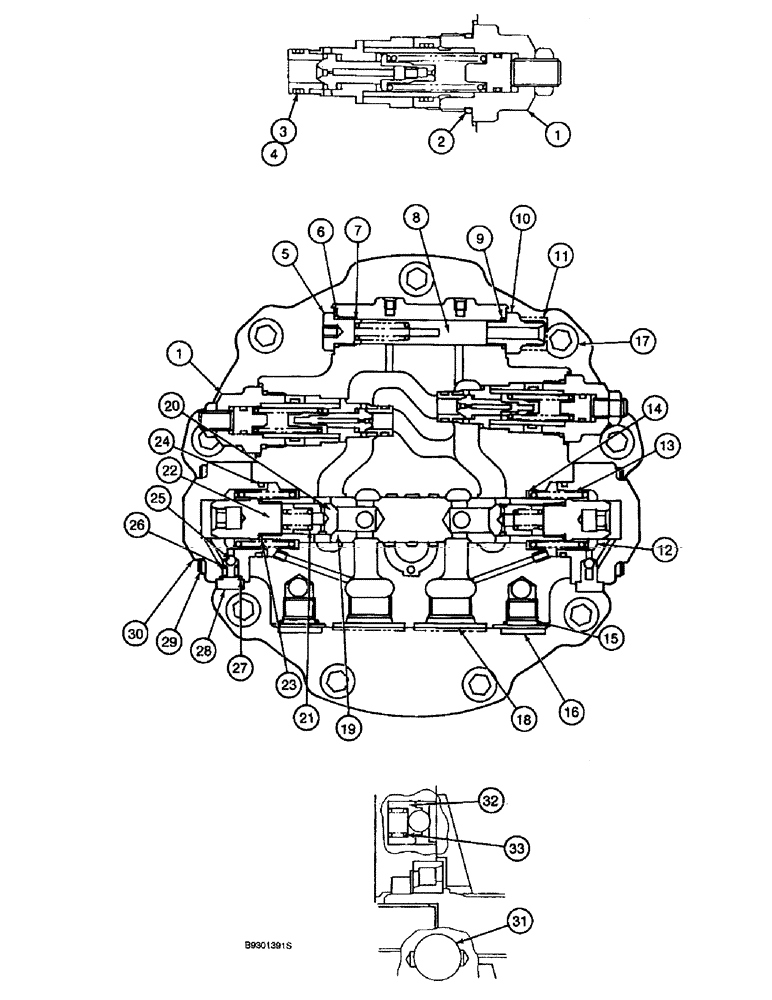

Запчасти Case 9010 (6-08) - TRACK DRIVE MOTOR, COVER AND VALVES (06) - POWER TRAIN

NSS

NOT SOLD SEPARAT

MOTOR ASSEMBLY track drive, includes parts on figures 6-2 and 6-6, Includes: P/N 155789A1 and Ref. 1-33

1шт.

155789A1

VALVE, PRESSURE RELI

VALVE ASSEMBLY relief, Includes: Ref. 1-4

2шт.

1

NSS

NOT SOLD SEPARAT

BODY relief valve

1шт.

2

155225A1

O-RING

outer, large

1шт.

3

154478A1

O-RING

seal outer, small

1шт.

4

153964A1

BACK-UP RING

RING backup relief valve, small O-ring

2шт.

5

155480A1

PLUG

valve

1шт.

6

154475A1

O-RING

plug

1шт.

7

156097A1

SPRING

valve

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

9

154475A1

O-RING

plug

1шт.

10

155482A1

FITTING

ADAPTER straight 2-speed control

1шт.

11

NSS

NOT SOLD SEPARAT

PLUG, at 2-speed control valve

1шт.

12

156094A1

SPRING SEAT

SEAT spring

2шт.

13

156076A1

SPRING

return

2шт.

14

156109A1

SPRING SEAT

SEAT spring

2шт.

15

154487A1

O-RING

plug

2шт.

16

155483A1

PLUG

port

2шт.

17

150880A1

BOLT,Hex Skt

hex socket was 153864A1

9шт.

18

NSS

NOT SOLD SEPARAT

PLUG port

2шт.

19

NSS

NOT SOLD SEPARAT

PLUNGER check valve

1шт.

20

156715A1

VALVE, CHECK

VALVE check

2шт.

21

156716A1

SPRING

check valve

2шт.

22

156717A1

PLUG

check valve

2шт.

23

154487A1

O-RING

check valve

2шт.

155795A1

CAP

ASSEMBLY valve, Includes: Ref. 24-30

2шт.

24

154569A1

O-RING

seal

1шт.

25

155977A1

BALL

steel

1шт.

26

156106A1

SPRING

ball return

1шт.

27

154455A1

O-RING

to valve cap

1шт.

28

155491A1

PLUG

valve cap

1шт.

29

861-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

BOLT hex socket 10 - 1.5 x 35 mm, class 12.9

4шт.

30

156322A1

CAP

check valve

1шт.

31

155950A1

BALL

steel

2шт.

32

NSS

NOT SOLD SEPARAT

PISTON motor

2шт.

33

156095A1

SPRING

return

2шт.
