(6-06) - TRACK DRIVE MOTOR, SHAFT, CYLINDER BLOCK AND PISTONS

Запчасти Case 9010 (6-06) - TRACK DRIVE MOTOR, SHAFT, CYLINDER BLOCK AND PISTONS (06) - POWER TRAIN

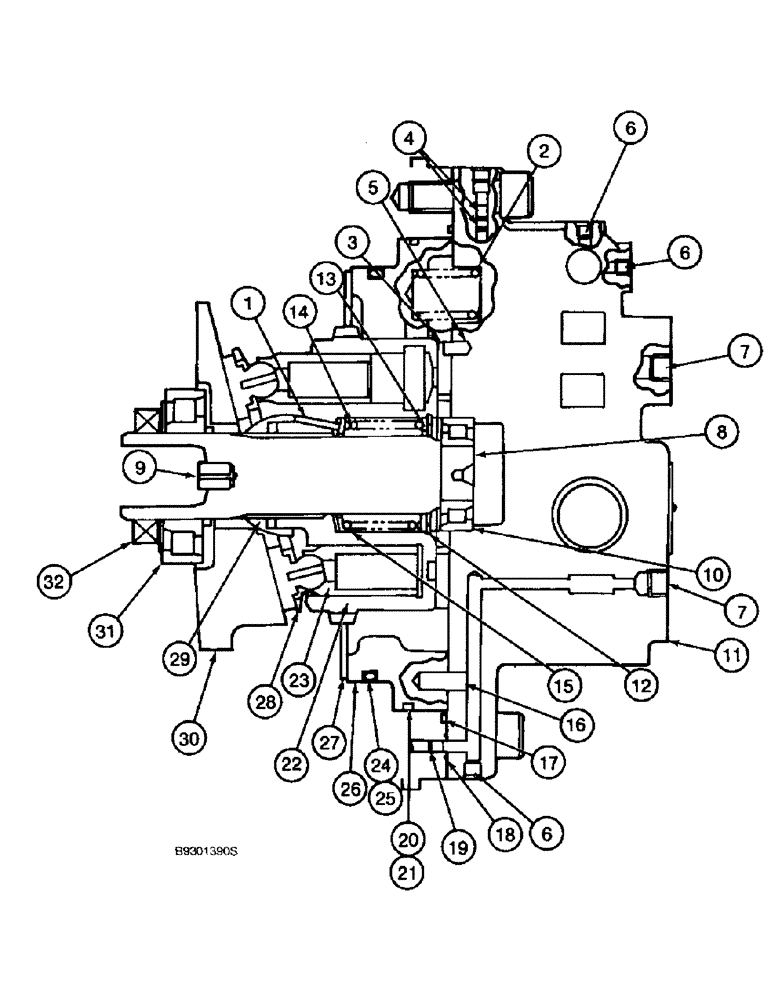

Схема запчастей Case 9010 - (6-06) - TRACK DRIVE MOTOR, SHAFT, CYLINDER BLOCK AND PISTONS (06) - POWER TRAIN
18
5
14
6
27
25
4
21
31
8
15
7
16
2
7
32
30
19
10
1
20
26
13
17
12
9
6
22
3
29
24
28
11
23
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

MOTOR ASSEMBLY track drive, includes parts on Figures 6-6 and 6-8, Includes: Ref. 1-32

1шт.

1

155633A1

COTTER PIN

PIN motor

3шт.

2

156075A1

SPRING

return

8шт.

3

155788A1

PLATE

valve

1шт.

4

155961A1

ORIFICE

PLUG orifice

4шт.

5

155632A1

COTTER PIN

PIN dowel

1шт.

6

155479A1

PLUG

port

7шт.

7

151026A1

PLUG

port

3шт.

156711A1

SHAFT

ASSEMBLY travel motor, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

SHAFT motor

1шт.

9

NSS

NOT SOLD SEPARAT

PIN spring

1шт.

10

156156A1

ROLLER BEARING,25 mm ID x 52 mm OD x 15 mm

shaft

1шт.

11

NSS

NOT SOLD SEPARAT

COVER base plate

1шт.

12

155636A1

RING, SNAP

RING snap

1шт.

13

155639A1

COLLAR

SEAT shaft

1шт.

14

156096A1

SPRING

return

1шт.

15

155638A1

COLLAR

SEAT spring

1шт.

16

155579A1

COTTER PIN

PIN dowel

4шт.

17

155218A1

O-RING

, Serial Range: O-RING-housing

1шт.

18

154463A1

O-RING

seal

3шт.

19

155961A1

ORIFICE

PLUG orifice

1шт.

20

155216A1

O-RING

piston

1шт.

21

155164A1

BACK-UP RING

RING backup

1шт.

158030A1

CYLINDER ASSY.

CYLINDER ASSEMBLY track drive motor, Includes: Ref. 22 and 23

1шт.

22

NSS

NOT SOLD SEPARAT

BLOCK cylinder

1шт.

23

NSS

NOT SOLD SEPARAT

PISTON block

9шт.

24

154861A1

O-RING

piston

1шт.

25

154253A1

BACK-UP RING

RING backup

1шт.

26

155952A1

PISTON

brake

1шт.

27

155389A1

DISC

PLATE thrust

1шт.

28

155634A1

PLATE

retainer

1шт.

29

155635A1

HOLDER

RETAINER plate

1шт.

30

156328A1

PLATE

swash

1шт.

31

156141A1

BEARING

shaft

1шт.

32

155110A1

OIL SEAL

SEAL oil shaft

1шт.
