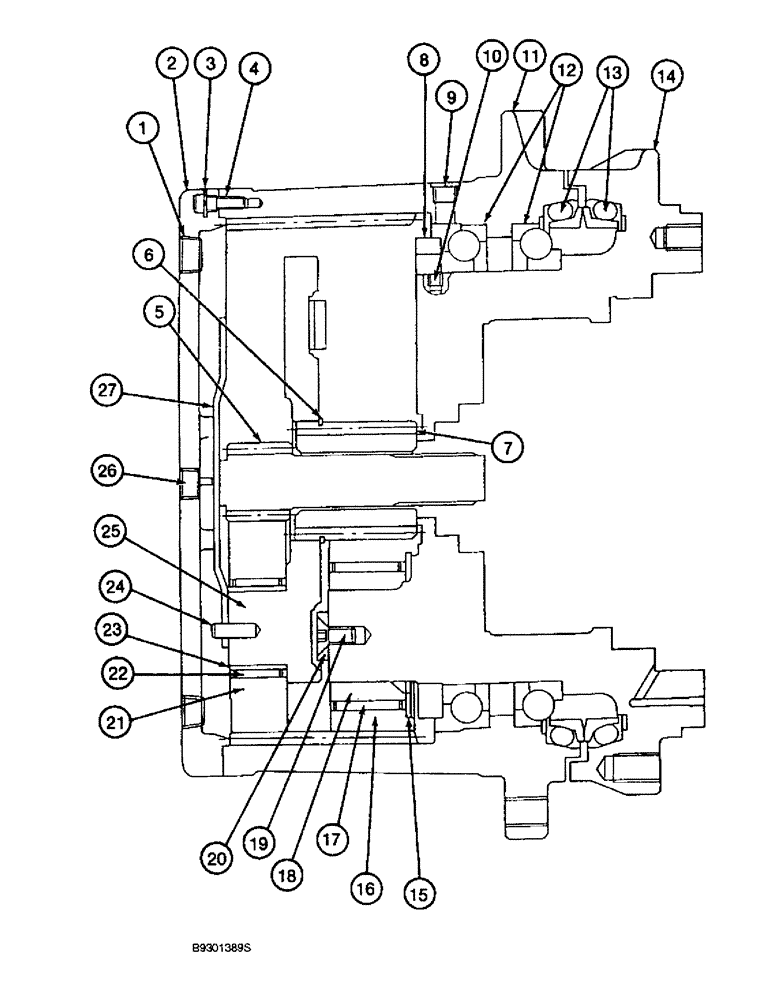

Запчасти Case 9010 (6-04) - 156887A1 FINAL DRIVE TRANSMISSION (06) - POWER TRAIN

156887A1

REDUCER

TRANSMISSION ASSEMBLY final drive, Includes: Ref. 1-27

2шт.

1

151033A1

PLUG

hex socket, special

2шт.

2

156888A1

COVER

gear

1шт.

3

892-10008

LOCK WASHER,M8

WASHER - lock, 8 mm

16шт.

4

861-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 25 mm, class 12.9

16шт.

5

155273A1

GEAR

drive

1шт.

6

155637A1

RING, SNAP

RING snap

1шт.

7

155275A1

SUN GEAR

GEAR sun

1шт.

8

156196A1

ADJUSTMENT SCREW

adjusting

1шт.

9

151026A1

PLUG

port

2шт.

10

155479A1

PLUG

port

2шт.

11

NSS

NOT SOLD SEPARAT

HUB transmission

1шт.

12

156146A1

BALL BEARING,222 mm ID x 273 mm OD x 26 mm

hub

2шт.

13

155302A1

SEAL

floating

1шт.

14

NSS

NOT SOLD SEPARAT

CARRIER gear

1шт.

15

155390A1

THRUST WASHER

WASHER thrust

4шт.

16

155276A1

GEAR

planetary secondary

4шт.

17

156889A1

THRUST BEARING

thrust

4шт.

18

155395A1

BUSHING

bearing

4шт.

19

156890A1

SCREW

special

4шт.

20

155388A1

PLATE

thrust

1шт.

21

155274A1

GEAR

planetary primary

3шт.

22

156143A1

NEEDLE BEARING

thrust

3шт.

23

156145A1

BEARING CUP,40 mm ID x 45 mm OD x 30 mm

BUSHING bearing

3шт.

24

738-1822

LOCK PIN,M8 x 22, Slotted

PIN roll 8 x 22 mm

3шт.

25

155640A1

HOLDER

GEAR ring

1шт.

26

155485A1

PLUG

port

5шт.

27

155387A1

PLATE

thrust

1шт.

27

156891A1

PLATE

thrust

1шт.

27

156892A1

PLATE

thrust

1шт.

27

156893A1

PLATE

thrust

1шт.
