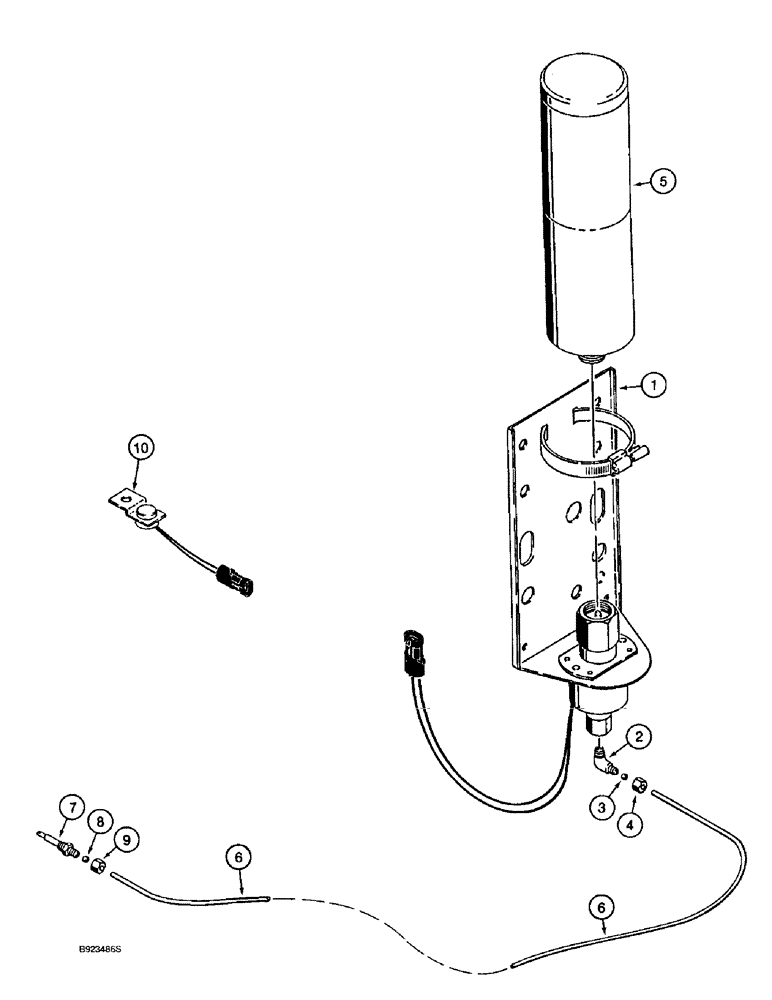

Запчасти Case 9010 (4-26) - COLD WEATHER STARTING SYSTEM (04) - ELECTRICAL SYSTEMS

L126094

VALVE

ASSEMBLY solenoid

1шт.

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube, Incl. Ref 2-4 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

2

NSS

NOT SOLD SEPARAT

BODY elbow

1шт.

3

222-650

SLEEVE,1/8" Tube, Comp

Tapered 1/8" Tube, Comp

1шт.

4

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD 5/16"-24, 45º Fl, Comp

1шт.

5

A171940

CYLINDER

starting fluid

1шт.

6

116991A2

TUBE nylon 1/8 (3) x 79 inch (2007 mm) long, cut from L60539X bulk tube see below

1шт.

A172900

NOZZLE CAP

NOZZLE ASSEMBLY - atomizer, Includes: Ref. 7-9

1шт.

7

NSS

NOT SOLD SEPARAT

BODY nozzle

1шт.

8

222-650

SLEEVE,1/8" Tube, Comp

Tapered 1/8" Tube, Comp

1шт.

9

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD 5/16"-24, 45º Fl, Comp

1шт.

10

L126191

THERMOSTATIC SWITCH

THERMOCOUPLE circuit breaking, includes lead wires attaches to engine harness, uses existing engine hardware

1шт.

L60539X

TUBE

bulk, nylon 1/8 (3) ID x 168 inch (4267 mm) long

1шт.
