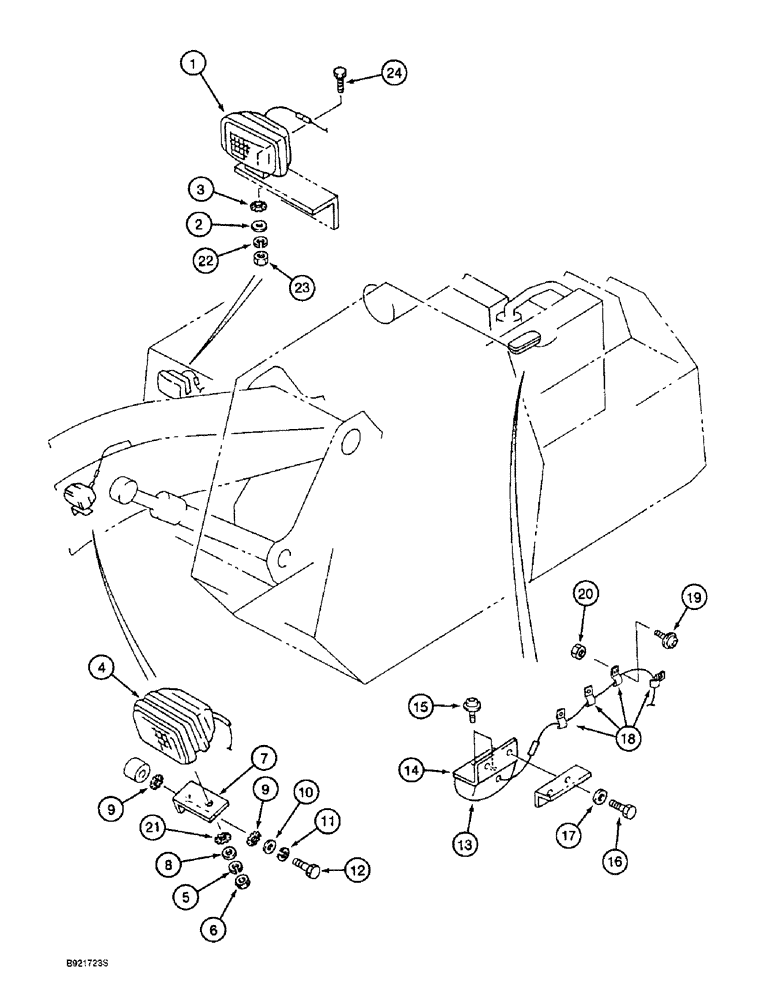

Запчасти Case 9010 (4-20) - WORK LAMPS AND WIRING (04) - ELECTRICAL SYSTEMS

152808A1

LAMP

ASSEMBLY work, Includes: Ref. 1

1шт.

1

152809A1

BULB

LAMP sealed beam work lamp

1шт.

This is the replaceable bulb for the work lamp.

1шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

1шт.

3

893-11010

LOCK WASHER,Ext Tooth, M10

WASHER, LOCK, Ext Tooth, M10

1шт.

152811A1

LAMP

ASSEMBLY work, Includes: Ref. 4-6

1шт.

4

152812A1

BULB

LAMP sealed beam on boom

1шт.

This is the replaceable bulb for the work lamp.

1шт.

5

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER lock 14 mm special

1шт.

6

150513A1

NUT

hex, special

1шт.

7

150834A1

BRACKET

boom, lamp mounting

1шт.

8

150507A1

WASHER

flat, special

1шт.

9

893-11016

LOCK WASHER,16.4mm ID x 26.6mm OD x 1.2mm Thk

WASHER external tooth lock 16 mm

2шт.

10

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

Flat M17.5 x 30 x 4, HT

1шт.

11

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

1шт.

12

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

1шт.

13

152890A1

LAMP

engine compartment, Includes: Ref. 13A

1шт.

13a

150934A1

BULB

LAMP bulb engine compartment lamp, not shown

1шт.

14

150658A1

BRACKET

lamp

1шт.

15

151688A1

SCREW,Phil Pan Hd, M5 x 12mm, W/ Wshr

pan head bracket mounting

2шт.

16

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

hex, full threads, 10 - 1.5 x 20 mm, class 10.9

2шт.

17

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

2шт.

18

150354A1

CLAMP

P type 4.6 mm ID

4шт.

19

151679A1

SCREW,Phil Pan Hd, M4 x 12mm, W/ Wshr

special

4шт.

20

824-1404

NUT,M4, Cl 5

hex 4 mm - 0.7, class 5

4шт.

21

151369A1

LOCK WASHER

external shakeproof

1шт.

22

892-11010

LOCK WASHER,M10

1шт.

23

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

24

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

hex, full threads, 10 - 1.5 x 25 mm, class 10.9

1шт.
