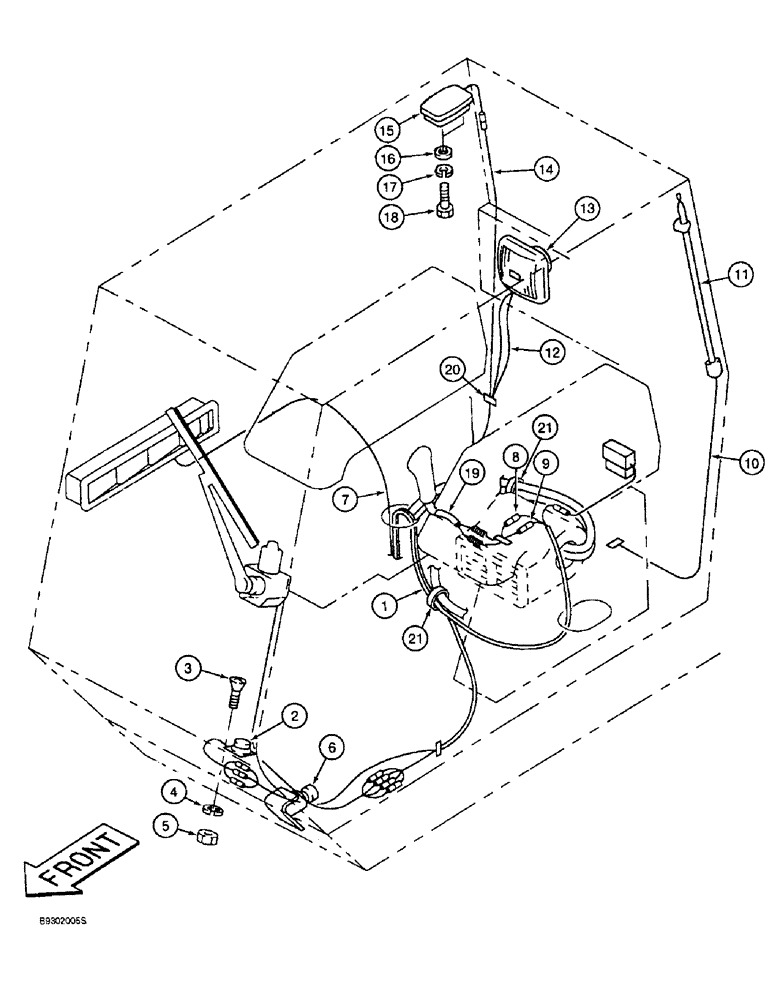

Запчасти Case 9010 (4-18) - CAB HARNESS, DOME LAMP AND SPEAKER (04) - ELECTRICAL SYSTEMS

1

152075A1

HARNESS

left-hand console left-hand console

1шт.

2

158884A1

IGNITION SWITCH

SWITCH push button two speed travel, was 153624A1

1шт.

3

843-1516

SCREW,Flat , M5 x 16mm, Cl 4.8

machine, flat Phillips, 5 - 0.8 x 16 mm cross recess

2шт.

4

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

2шт.

5

825-1405

NUT,M5, Cl 8

2шт.

6

151143A1

SWITCH

limit motion alarm

2шт.

7

150930A1

HARNESS

instrument cluster

1шт.

8

150089A1

TERMINAL CONNECTOR

CONNECTOR electrical

1шт.

9

150094A1

TERMINAL CONNECTOR

CONNECTOR electrical

1шт.

10

152500A1

CABLE ASSY.

WIRE antenna

1шт.

11

152497A1

ANTENNA

radio

1шт.

12

150586A1

ELECTRICAL WIRE

WIREspeaker

1шт.

13

150389A1

SPEAKER

radio

1шт.

14

150926A1

HARNESS

dome lamp

1шт.

15

150379A1

LAMP

dome, Includes: Ref. 15A

1шт.

15a

150934A1

BULB

LAMP bulb dome lamp, not shown

2шт.

16

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

17

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

2шт.

18

113632A1

SELF-TAP SCREW

self-tapping, special dome lamp mounting

2шт.

19

151031A1

TUBE,3.6 mm ID, 200 mm Length

vinyl, 7-7/8 inch (200 mm) long

1шт.

20

150563A1

CLIP

wire

1шт.

21

150067A1

MOUNTING CLIP

STRAP tie, 150 mm long

1шт.
