(4-16) - LEFT-HAND CONSOLE AND HARNESS

Запчасти Case 9010 (4-16) - LEFT-HAND CONSOLE AND HARNESS (04) - ELECTRICAL SYSTEMS

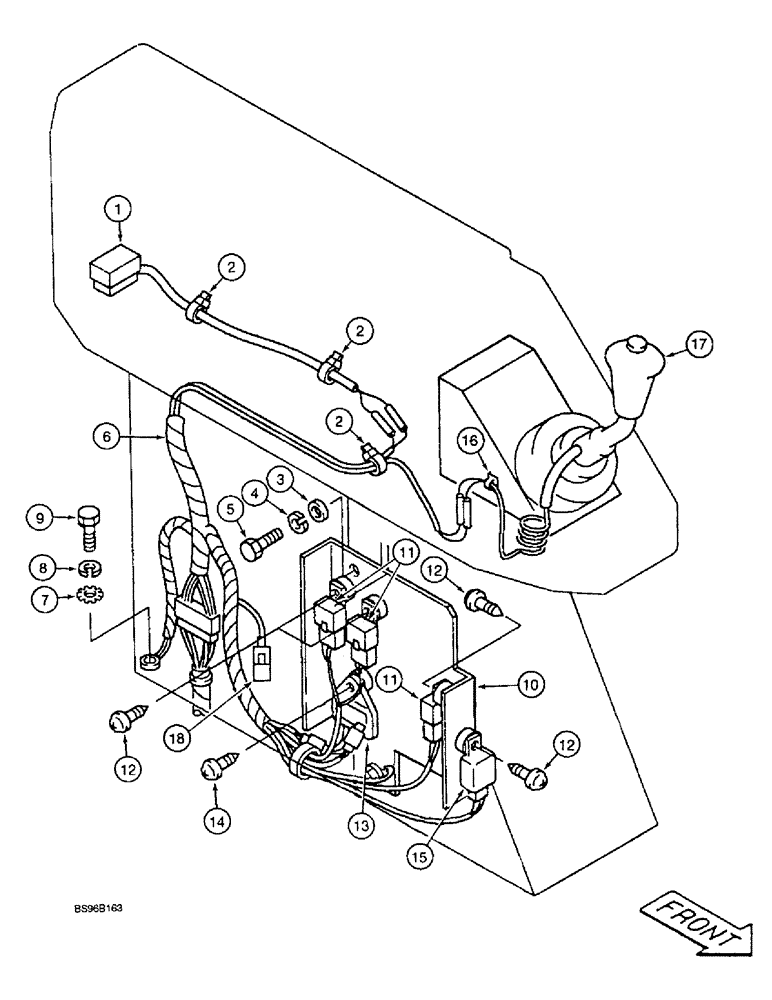

Схема запчастей Case 9010 - (4-16) - LEFT-HAND CONSOLE AND HARNESS (04) - ELECTRICAL SYSTEMS
12
16
5
3
12
11
1
4
8
9
15
12
17
2
2
7
2
6
10
18
11
14
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

150857A1

SWITCH

limit pilot controls

1шт.

2

150067A1

MOUNTING CLIP

STRAP tie 150 mm long

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

3шт.

4

892-11010

LOCK WASHER,M10

3шт.

5

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

hex, full threads, 10 - 1.5 x 20 mm, class 10.9

3шт.

6

152075A1

HARNESS

left-hand console left-hand console

1шт.

7

893-11010

LOCK WASHER,Ext Tooth, M10

WASHER, LOCK, Ext Tooth, M10

1шт.

8

892-11010

LOCK WASHER,M10

1шт.

9

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

hex, full threads, 10 - 1.5 x 20 mm, class 10.9, LH console

1шт.

10

152768A1

BOX

BRACKET mounting

1шт.

11

152711A1

RELAY

electrical cushion, wiper

3шт.

12

152098A1

CAPTIVE WASHER SCREW,Phil Pan Hd, M5 x 10mm

SCREW pan head, special

4шт.

13

152492A1

RELAY

electrical

1шт.

14

151688A1

SCREW,Phil Pan Hd, M5 x 12mm, W/ Wshr

pan head relay retaining

1шт.

15

152706A1

RELAY

electrical delayed shut-off

1шт.

16

150563A1

CLIP

wire

1шт.

17

151613A1

KNOB

control with switch, left-hand controller

1шт.

18

150369A1

DIODE

electrical spare

1шт.
