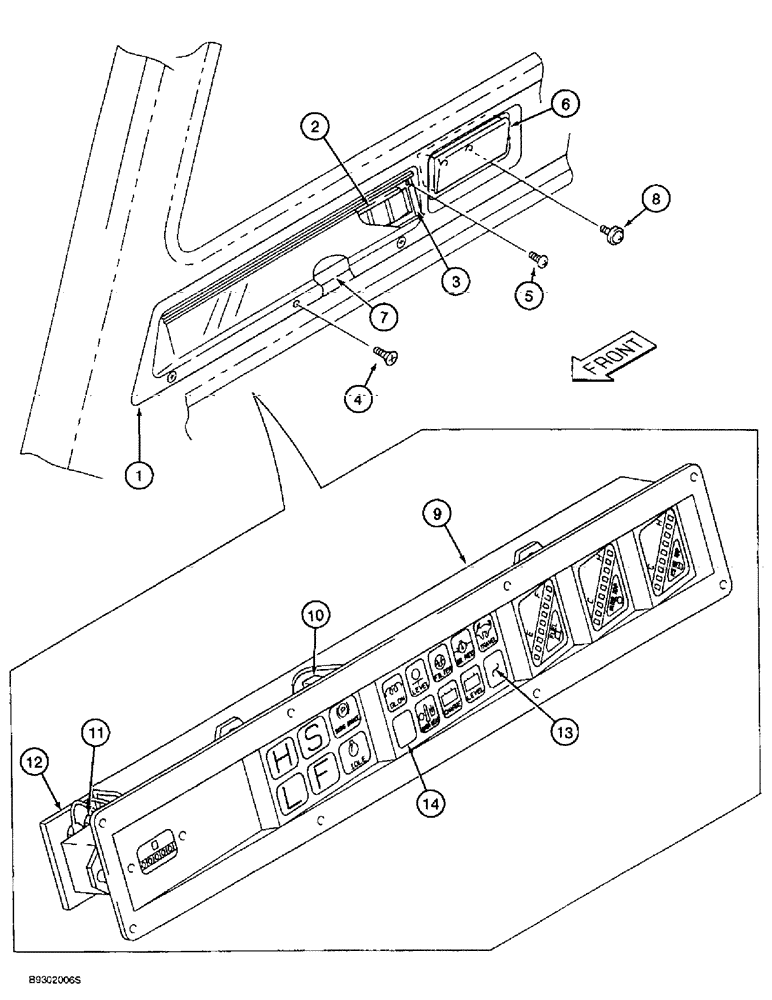

Запчасти Case 9010 (4-12) - INSTRUMENT CLUSTER AND MOUNTING (04) - ELECTRICAL SYSTEMS

1

156638A1

PANEL ASSY.

COVER instrument panel dust, was 152486A1

1шт.

152386A1

SEAL

KIT cover seal, Includes: Ref. 2 and 3

1шт.

2

152499A1

SEAL

horizontal

2шт.

3

152502A1

SEAL

cushion vertical

2шт.

4

150818A1

SCREW,Spcl, Oval Hd Csk, M4 x 12mm

special cover mounting

4шт.

5

150875A1

SCREW,Phil Truss Hd, M4 x 12mm

special cluster mounting

8шт.

6

151946A1

ASH TRAY

ASHTRAY cab

1шт.

7

151549A1

PLASTIC-RUBBER TUBE

SLEEVE corrugated 3-1/8 inch (80 mm) long

1шт.

8

151688A1

SCREW,Phil Pan Hd, M5 x 12mm, W/ Wshr

pan head ashtray mounting

2шт.

151238A1

CONTROL

CLUSTER ASSEMBLY instrument, Includes: 9-14

1шт.

9

151714A1

BOARD, PRINTED CIRCU

CLUSTER instrument

1шт.

10

150755A1

LAMP

instrument cluster

17шт.

11

152805A1

HOURMETER

electric cluster

1шт.

13

150759A1

CAP

COVER gauge hole

1шт.

14

153084A1

CAP

COVER gauge hole

1шт.
