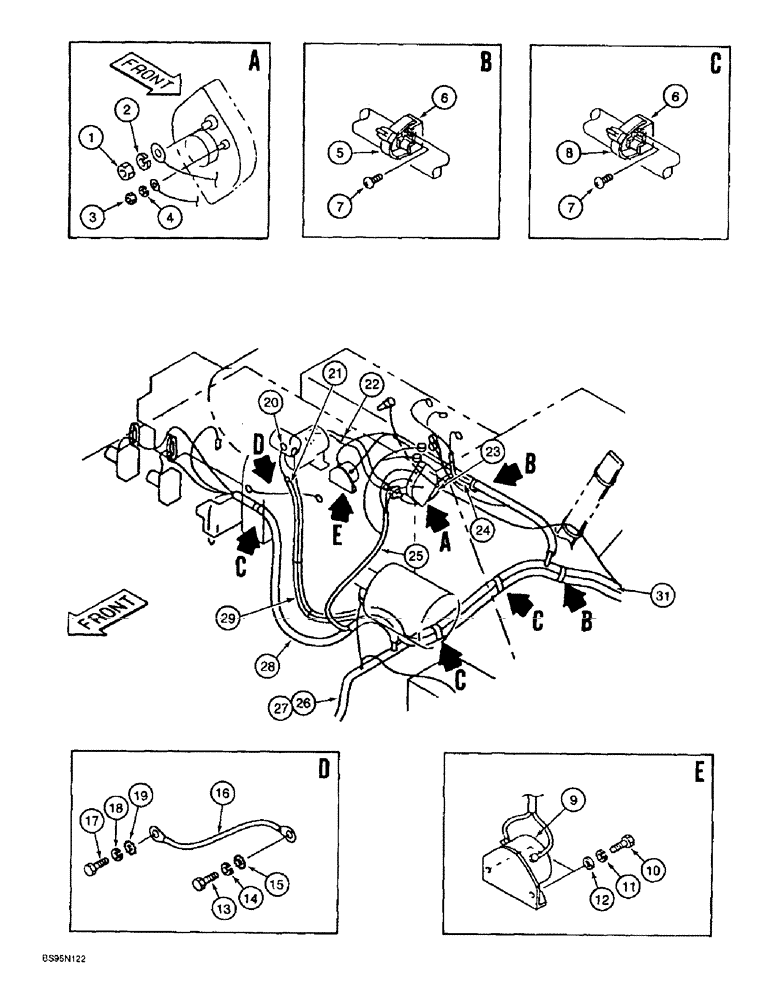

Запчасти Case 9010 (4-09A) - ELECTRICAL SYSTEM, TRAVEL ALARM, HARNESS GUARDS AND HARDWARE (04) - ELECTRICAL SYSTEMS

1

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

1шт.

2

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

3

829-1405

NUT,M5, Cl 10

hex 5 mm - 0.8, class 10

1шт.

4

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

1шт.

5

150496A1

MOUNTING CLIP

STRAP tie 250 mm long

1шт.

6

150860A1

COLLAR

BRACKET support

10шт.

7

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

machine, pan Phillips 6 - 1.0 x 8 mm

10шт.

8

150071A1

MOUNTING CLIP

STRAP tie 365 mm long

1шт.

9

162218A1

ALARM

travel was 151829A1

1шт.

10

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, class 10.9

2шт.

11

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

12

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

13

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 20 mm, class 10.9

1шт.

14

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

15

30574R1

LOCK WASHER,Ext Tooth, M12

WASHER internal tooth lock 12 mm

1шт.

16

152481A1

HARNESS

WIRE ground

1шт.

17

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

hex, full threads, 10 - 1.5 x 25 mm, class 10.9

1шт.

18

892-11010

LOCK WASHER,M10

1шт.

19

893-11010

LOCK WASHER,Ext Tooth, M10

WASHER, LOCK, Ext Tooth, M10

1шт.

20

151227A1

NEG BATTERY CABLE

CABLE battery

1шт.

21

150067A1

MOUNTING CLIP

STRAP tie 150 mm long

1шт.

22

152660A1

PLASTIC-RUBBER TUBE

GUARD harness

1шт.

23

150232A1

TUBE,7mm ID x 10mm OD x 150mm L

SLEEVE corrugated 6 inch (150 mm) long

1шт.

24

150236A1

TUBE

SLEEVE corrugated 11-13/16 inch (300 mm) long

1шт.

25

152366A1

TUBE

GUARD cable

1шт.

26

151220A1

HARNESS

main electrical Figure 4-6

1шт.

27

150782A1

PLASTIC-RUBBER TUBE

SLEEVE corrugated 98-7/16 inch (2500 mm) long

1шт.

28

152372A1

TUBE

GUARD harness

1шт.

29

150406A1

PLASTIC-RUBBER TUBE,13 mm ID, 17.5 mm OD, 1500 mm Length

SLEEVE corrugated, plastic, special 59 inch (1500 mm) long

1шт.
