(4-08) - ELECTRICAL SYSTEM, HORNS, WIRING AND MOUNTING

Запчасти Case 9010 (4-08) - ELECTRICAL SYSTEM, HORNS, WIRING AND MOUNTING (04) - ELECTRICAL SYSTEMS

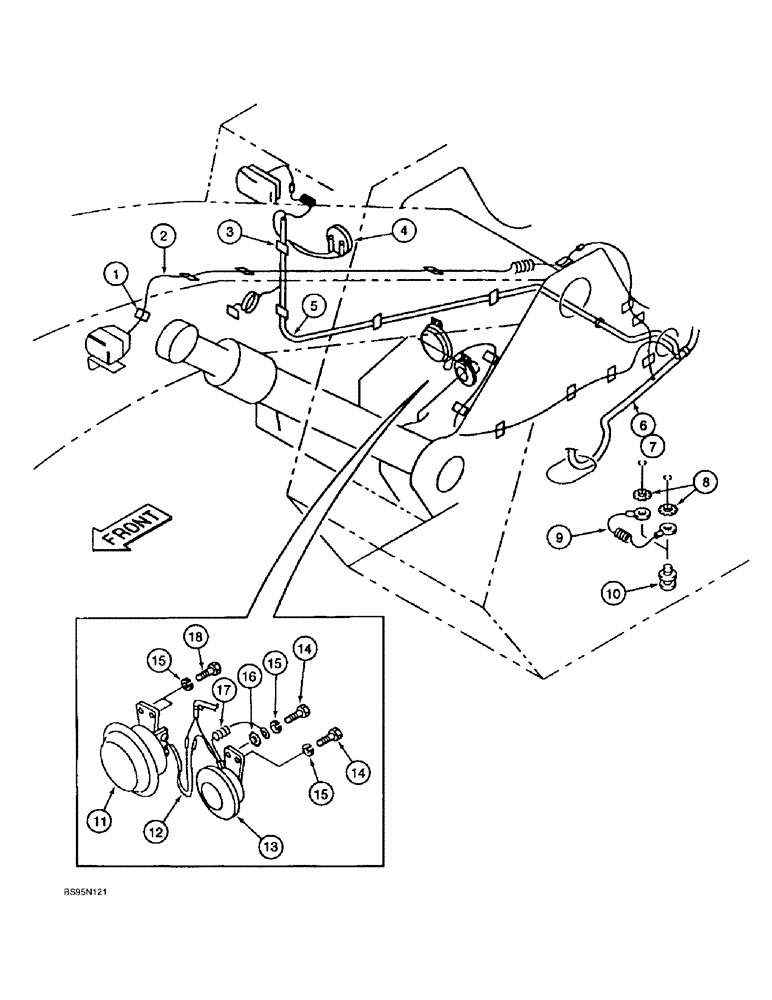

Схема запчастей Case 9010 - (4-08) - ELECTRICAL SYSTEM, HORNS, WIRING AND MOUNTING (04) - ELECTRICAL SYSTEMS
14
15
14
10
2
15
16
8
7
11
18
15
1
5
13
12
9
17
6
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

150563A1

CLIP

wire

1шт.

2

150371A1

HARNESS

WIRE work lamp

1шт.

3

150712A1

CLIP

tube support

1шт.

4

152111A1

SENSOR

fuel level

1шт.

5

150283A1

TUBE

SLEEVE corrugated 78-3/4 inch (2000 mm) long

1шт.

6

151220A1

HARNESS

main electrical

1шт.

7

150782A1

PLASTIC-RUBBER TUBE

SLEEVE corrugated 98-7/16 inch (2500 mm) long

1шт.

8

893-11006

LOCK WASHER,Ext Tooth, M6

WASHER - external tooth lock, 6 mm

2шт.

9

150246A1

HARNESS

WIRE ground

1шт.

10

152100A1

CAPTIVE WASHER SCREW,Phil Pan Hd, M6 x 16mm

special

2шт.

11

151739A1

HORN

electrical

1шт.

12

150698A1

HARNESS

WIRE horn

1шт.

13

152169A1

HORN

electrical

1шт.

14

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

hex, full threads 8 - 1.25 x 16 mm, class 10.9

2шт.

15

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

16

893-11008

LOCK WASHER,Ext Tooth, M8

WASHER, LOCK, Ext Tooth, M8

1шт.

17

150061A1

HARNESS

WIRE ground

1шт.

18

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

hex, full threads 8 - 1.25 x 25 mm, class 10.9

2шт.
