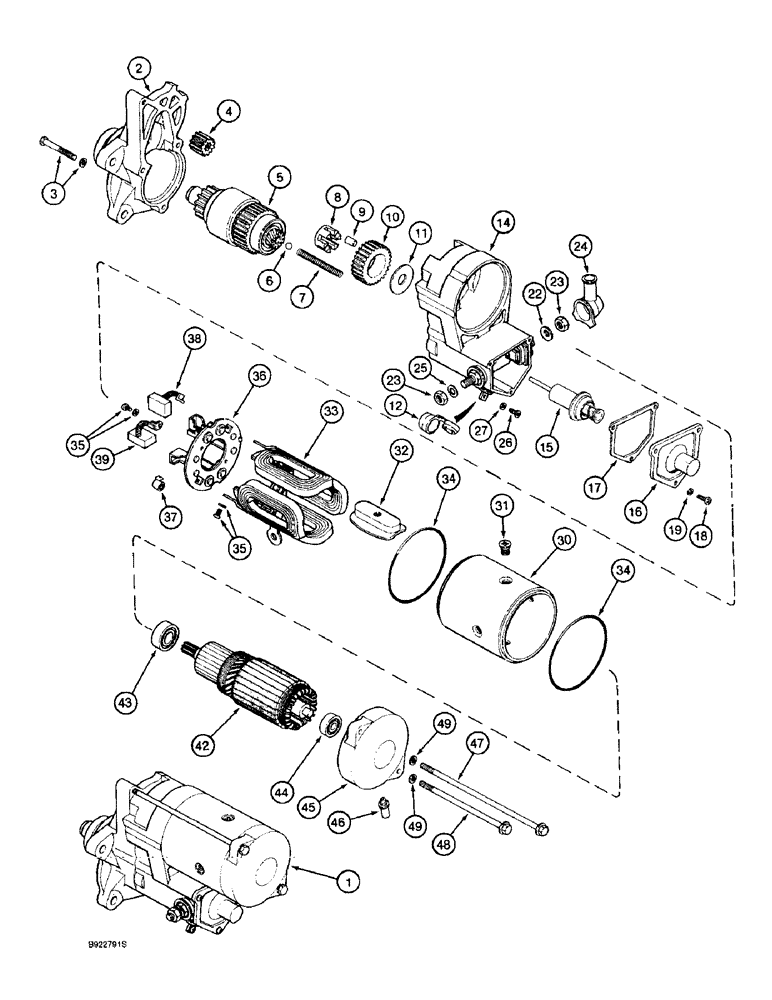

Запчасти Case 9010 (4-04) - STARTER ASSEMBLY (04) - ELECTRICAL SYSTEMS

1

1987566C1

STARTER MOTOR,24V, 5.5kW

STARTER ASSEMBLY, engine (Nippondenso No. 128000-2561) 24 volt, see Figure 2-40 for starter mounting, Includes: Ref. 2-49

1шт.

For use with Encore blocks order J934119. 11/05/97

1шт.

1

1987566C1R

REMAN-STARTER,24V, 5.5kW

Reman For New PN 1987566C1

1шт.

1

1987566C1C

CORE-STARTER,24V, 5.5kW

Return Number

1шт.

1

1987566C1GV

STARTER MOTOR,24V, 5.5kW

Value

1шт.

2

A49797

HOUSING

HOUSING starter

1шт.

3

A47129

CAPTIVE WASHER SCREW

BOLT ASSEMBLY with washer

3шт.

4

A49809

PINION

GEAR pinion

1шт.

5

A49802

CLUTCH

CLUTCH starter

1шт.

6

211-209

BALL

BALL chrome alloy steel 11/32, inch, grade 24

1шт.

7

A47232

SPRING

SPRING compression 2-13/16 inch free length

1шт.

8

A47236

RETAINER

RETAINER roller bearing

1шт.

9

A47235

ROLLER BEARING

ROLLER pinion bearing

5шт.

10

A49810

GEAR

GEAR pinion idler

1шт.

11

A47234

WASHER

WASHER thrust

1шт.

12

104589A1

BUSHING

BUSHING insulation

1шт.

14

104598A1

SOLENOID SWITCH

SWITCH, SOLENOID, Assy - magnetic, Includes: Ref. 15-19

1шт.

15

NSS

NOT SOLD SEPARAT

SOLENOID starter

1шт.

16

NSS

NOT SOLD SEPARAT

COVER solenoid

1шт.

17

NSS

NOT SOLD SEPARAT

GASKET solenoid cover

1шт.

18

NSS

NOT SOLD SEPARAT

BOLT cover retaining

3шт.

19

NSS

NOT SOLD SEPARAT

WASHER retaining

3шт.

22

A10454

WAVE WASHER

WASHER spring

1шт.

23

825-1410

NUT,M10, Cl 8

Nut, M10, Cl 8

2шт.

24

A49805

COVER

COVER terminal

1шт.

25

892-11010

LOCK WASHER,M10

LOCK WASHER, M10

1шт.

26

A46950

SCREW,M5 x 0.8 x 0.8mm

SCREW terminal, special 5 x 8 mm

1шт.

27

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

1шт.

30

A49804

HOUSING

HOUSING ASSEMBLY starter field, Includes: Ref. 31-33

1шт.

31

NSS

NOT SOLD SEPARAT

SCREW pole shoes

4шт.

32

NSS

NOT SOLD SEPARAT

SHOE pole

4шт.

33

NSS

NOT SOLD SEPARAT

COIL field

1шт.

34

A49812

SEAL

SEAL housing

2шт.

35

A47244

CAPTIVE WASHER SCREW,Cross Pan Hd, M5 x 0.8 x 8mm

SCREW ASSEMBLY with washer, brush retaining

4шт.

36

A49806

BRUSH HOLDER

HOLDER ASSEMBLY brush, Includes: Ref. 37

1шт.

37

A47249

SPRING

SPRING brush tension

4шт.

38

A49807

COMMUTATOR BRUSH

BRUSH starter

2шт.

39

A49808

COMMUTATOR BRUSH

BRUSH starter

2шт.

42

A49801

ROTOR

ARMATURE ASSEMBLY starter, Includes: Ref. 43, 44

1шт.

43

A49800

BALL BEARING,15 mm ID x 35 mm OD x 11 mm

BEARING armature 15 x 35 x 11 mm

1шт.

44

452698C1

BALL BEARING,10mm ID x 30mm OD x 9mm W

BEARING, BALL, Commutator end

1шт.

45

A49811

COVER ASSY

FRAME commutator end

1шт.

46

A49803

BREATHER

COVER frame end

1шт.

47

104593A1

FLANGE BOLT

BOLT hex flange, 7 x 206 mm flange

1шт.

48

104594A1

FLANGE BOLT

BOLT hex flange, 7 x 144 mm flange

1шт.

49

A49815

LOCK WASHER

WASHER lock

2шт.
