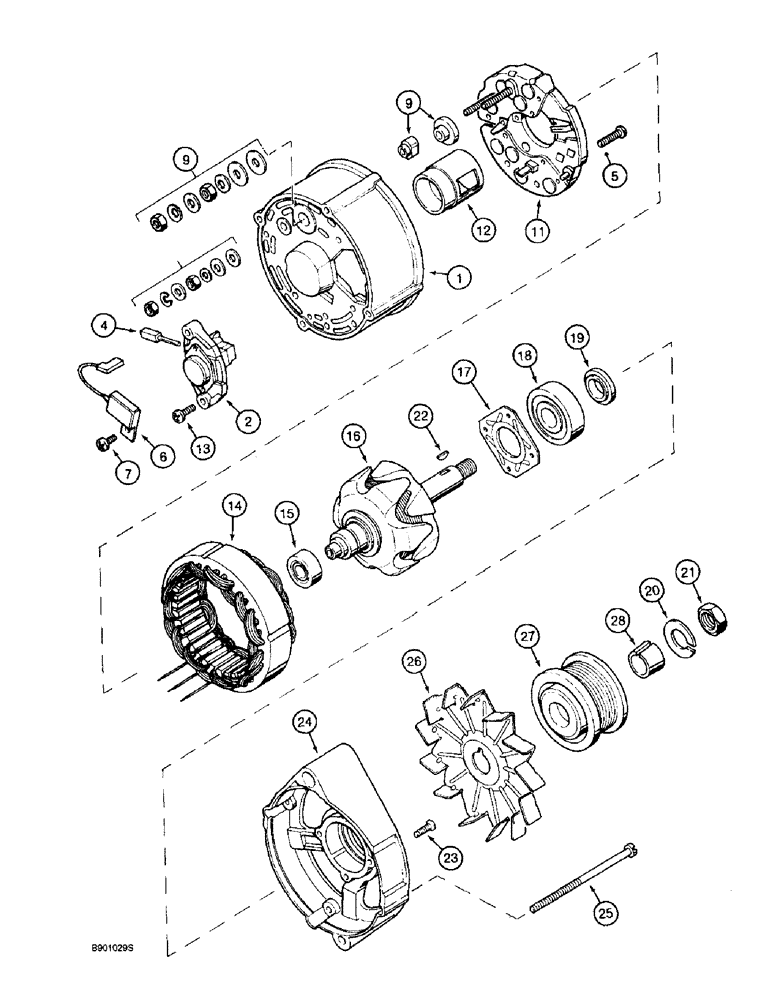

Запчасти Case 9010 (4-02) - ALTERNATOR - A187916 (04) - ELECTRICAL SYSTEMS

A187916

ALTERNATOR,24V, 45A

ALTERNATOR ASSEMBLY engine 24 volt, Includes: Ref. 1-25

1шт.

A187916GV

ALTERNATOR

Value

1шт.

AR187916

REMAN-ALTERNATOR

45A 24V

1шт.

AC187916

CORE-ALTERNATOR

Return Number

1шт.

87297236

REMAN-ALTERNATOR

REMANUFACTURED 24 VOLT, 45 AMP ALTERNATOR

1шт.

87297237

CORE-ALTERNATOR

Return Number, 24 VOLT, 45 AMP ALTERNATOR

1шт.

1

A187996

HOUSING

HOUSING collector ring end

1шт.

2

A187998

REGULATOR

REGULATOR voltage, Includes: Ref. 4

1шт.

4

A187999

BRUSH, COMMUTATOR

BRUSH BRUSH ASSEMBLY alternator

1шт.

5

1530431C1

BOLT,Hex, 1 1/4" - 7 x 7", Gr 8, W/ Wshr

BOLT with washer with washer, rectifier bridge retaining

2шт.

6

3079134R1

CAPACITOR

CAPACITOR alternator

1шт.

7

1964969C1

SCREW

SCREW special capacitor retaining

1шт.

9

A187904

MULTIPOLE CONNECTOR

SET hardware, terminal terminal

1шт.

11

A187997

RECTIFIER

BRIDGE rectifier alternator

1шт.

12

A187899

INNER SHIELD

SHIELD alternator

1шт.

13

A187504

SCREW

BOLT hex flange, special with washer, voltage regulator retaining

2шт.

14

A188000

STATOR

STATOR ASSEMBLY alternator

1шт.

15

A186186

BALL BEARING,12mm ID x 32mm OD x 10mm W

BEARING ball rotor, collector ring end

1шт.

16

A187502

ROTOR ASSY.

ROTOR ASSEMBLY alternator

1шт.

17

A187901

FIXING PLATE

PLATE bearing retaining drive end cover

1шт.

18

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

BEARING ball rotor, drive end

1шт.

3078897R1

SET OF PARTS

KIT rotor retaining, Includes: Ref. 19-23

1шт.

19

NSS

NOT SOLD SEPARAT

RING spacer

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER rotor shaft

1шт.

21

NSS

NOT SOLD SEPARAT

NUT rotor shaft

1шт.

22

NSS

NOT SOLD SEPARAT

KEY pulley retainer, not used in A187916 alternator

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW bearing retaining plate

4шт.

24

A191103

COVER

COVER drive end

1шт.

25

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

BOLT slotted, special

4шт.

26

221425R1

FAN

FAN alternator not included with alternator assembly, order separately

1шт.

27

J908560

PULLEY

PULLEY drive not included with alternator assembly, order separately

1шт.

28

J908563

RETAINER

RETAINER pulley not included with alternator assembly, order separately

1шт.
