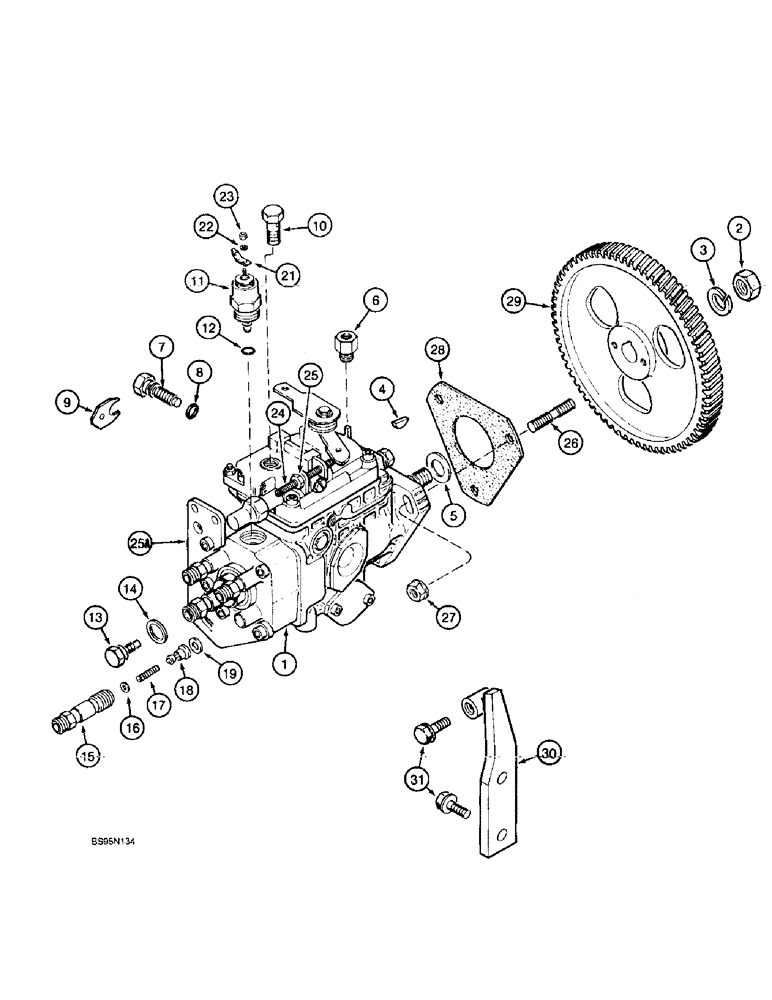

Запчасти Case 9010 (3-12) - FUEL INJECTION PUMP AND DRIVE, 4T-390 ENGINE (03) - FUEL SYSTEM

JR917505

REMAN-INJECTION PUMP

PUMP ASSEMBLY fuel injection, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

JC915883

CORE-INJECTION PUMP

RETURN NUMBER use this part number to return pump core credit when using a remanufactured assembly

1шт.

1

J917505

PUMP, FUEL INJECTION

PUMP ASSEMBLY fuel injection, new, Includes: 2-25A

1шт.

2

J903738

NUT

hex, special 14 mm - 2.0

1шт.

3

92-11056

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

4

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Assembly pump gear #6, 5/32" x 5/8", HT

1шт.

5

J920393

SEAL

shaft

1шт.

6

J903382

ADAPTER,M12 x 1.5 x M14 x 1.5

ADAPTER tube

1шт.

7

J904784

SCREW,Hex Skt, M10 x 1 x 35mm

timing lock

1шт.

8

J904785

O-RING,8 mm ID x 2.5 mm

timing lock screw

1шт.

10

J905465

BANJO BOLT

BOLT banjo, overflow banjo

1шт.

9

J904786

PLATE

timing lock

1шт.

10

J905465

BANJO BOLT

BOLT banjo, overflow banjo

1шт.

11

A77797

SOLENOID

shut down 24 volt component parts not serviced separately

1шт.

12

J903577

SEAL

solenoid

1шт.

13

J903572

BLEED SCREW,M8 x 1 x 23.10mm

SCREW vent

1шт.

14

3053133R1

SEALING RING,M8 x 11.5 x 1

RING gasket, vent screw

1шт.

15

J910794

FITTING

bypass delivery valve

6шт.

16

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

special

6шт.

17

J910796

SPRING

delivery valve

6шт.

18

J910795

BY-PASS VALVE

VALVE bypass delivery

6шт.

19

J903570

GASKET,5.4mm ID x 12mm OD x 1mm Thk

delivery valve

6шт.

21

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

TERMINAL Male

1шт.

22

J907481

WASHER

lock, special

1шт.

23

J907480

NUT

special

1шт.

24

J904782

SET SCREW,Sl, M6 x 40mm, Half Dog Pt

SCREW low idle stop

1шт.

25

J904783

NUT

low idle screw

1шт.

25a

J905696

SUPPORT

BRACKET pump support

1шт.

26

J902501

STUD

pump mounting 8 - 1.25 x 48 mm

3шт.

27

J900589

NUT

hex flange, special 8 mm

3шт.

28

J914389

GASKET

pump mounting

1шт.

29

J920594

PINION

GEAR pump drive

1шт.

30

J905313

LEVER

BRACE fuel pump

1шт.

31

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm

3шт.
