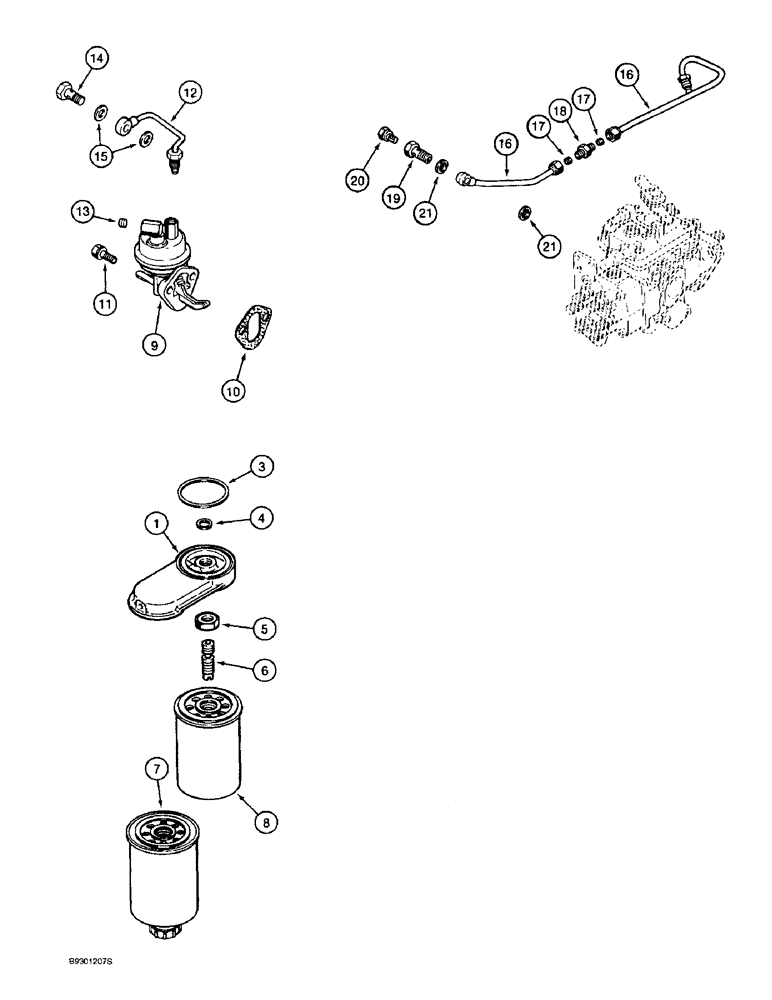

Запчасти Case 9010 (3-10) - FUEL FILTER AND LIFT PUMP, 4T-390 ENGINE (03) - FUEL SYSTEM

1

J915240

SUPPORT

HEAD fuel filter

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING sealing 70 mm ID

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING sealing 14 mm ID

1шт.

5

J903293

JAM NUT

hex, special 16 mm - 2.0

1шт.

6

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

fuel filter

1шт.

7

J925274

FILTER, FUEL

FILTER fuel, primary

1шт.

8

J903640

FILTER, FUEL

FILTER fuel secondary

1шт.

9

J904374

PUMP

lift, fuel

1шт.

10

J923054

GASKET

mounting, fuel transfer pump

1шт.

11

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm, Fuel lift pump to block

2шт.

12

J905649

FUEL TUBE,8 mm OD x 233.5 mm L

TUBE ASSEMBLY fuel supply fuellift pump to fuel filter inlet in cylinder head

1шт.

13

221-841

PLUG

hex socket 1/4 inch PT fuel inlet

1шт.

14

J903035

BANJO BOLT

BOLT banjo hex 12 - 1.5 x 24 mm fuel filter to lift pump tube

1шт.

15

J918191

PACKING RING

WASHER sealing, special 12 x 18 x 1 mm banjo connectors

2шт.

16

J918640

FUEL TUBE

TUBE ASSEMBLY fuel supply ,two-piece, Includes: Ref. 17,18

1шт.

17

222-103

SLEEVE,5/16" Tube

OD 5/16" Tube

2шт.

18

222-4

FITTING,9/16"-24, Flex Tube

ADAPTER - compression 5/16 inch tube O.D.

1шт.

J905860

BANJO BOLT

BOLT ASSEMBLY banjo hex, special, Includes: Ref. 19,20

1шт.

19

NSS

NOT SOLD SEPARAT

BOLT connector, banjo hex, special

1шт.

21

J918191

PACKING RING

WASHER sealing, special 12 x 18 x 1 mm

2шт.
