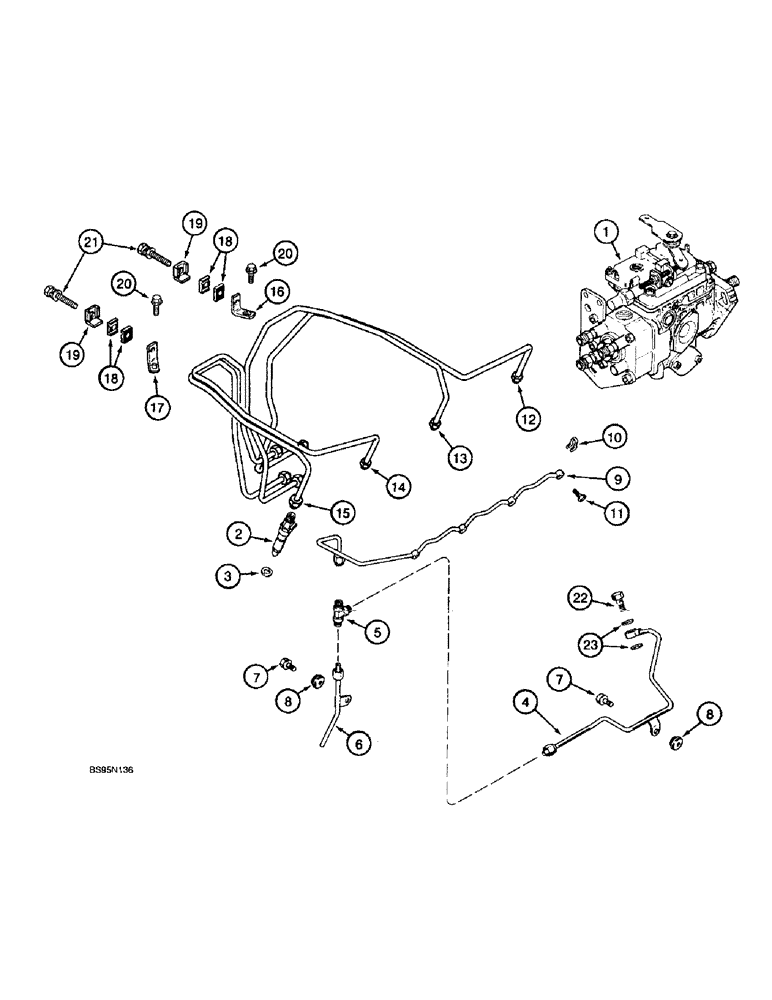

Запчасти Case 9010 (3-08) - FUEL INJECTION SYSTEM, 4T-390 ENGINE (03) - FUEL SYSTEM

1

J917505

PUMP, FUEL INJECTION

PUMP ASSEMBLY fuel injection, new parts list Figure 3-12

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY fuel, see Figure 3-16

4шт.

3

J906659

SEAL

injector nozzle see Figure 3-14, Ref. 3

4шт.

4

J905699

FUEL TUBE,4.76 mm OD

TUBE fuel return injection pump to tee

1шт.

Fuel tubes, items 4 and 6, bolt to tappet cover, see Figure 2-32, item 21.

1шт.

5

222-121

TEE,3/16", Flex Tubing

3/16", Flex Tubing, Fuel drain tubes (Remove and discard nuts and sleeves before assembly)

1шт.

6

J905692

FUEL TUBE

TUBE fuel return tee to fuel tank

1шт.

Fuel tubes, items 4 and 6, bolt to tappet cover, see Figure 2-32, item 21.

1шт.

7

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm, Fuel tube brace through tappet cover to cylinder block

2шт.

8

J900267

SEAL

cover bolt

2шт.

9

J909695

FUEL TUBE

TUBE manifold, fuel drain tee to fuel tank return

1шт.

10

J903380

SEAL

connector

4шт.

11

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special fuel drain manifold M6 x 1 x 14.3

4шт.

12

J903480

FUEL TUBE,21 mm ID x 64 mm OD

TUBE fuel injector

1шт.

13

J903481

FUEL TUBE,21 mm ID x 64 mm OD

TUBE fuel injector

1шт.

14

J903482

FUEL TUBE,21 mm ID x 64 mm OD

TUBE fuel injector

1шт.

15

J903483

FUEL TUBE,21 mm ID x 64 mm OD

TUBE fuel injector

1шт.

16

J919294

SUPPORT

BRACKET fuel tube No. 1 and 2

1шт.

17

J919292

SUPPORT

BRACKET fuel tube No. 3 and 4

1шт.

18

J917746

CLAMP

fuel tube

4шт.

19

J904711

SUPPORT

BRACKET fuel tube

2шт.

20

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special brackets to cylinder head Hex Flg Hd, M8 x 1.25 x 25

2шт.

21

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, , Replaces J917712 bolt and J903723 washer Hex Hd, M5 x .8 x 20, w/LW

2шт.

22

J905465

BANJO BOLT

BOLT banjo, overflow

1шт.

23

J918191

PACKING RING

WASHER sealing, special 12 x 18 x 1 mm

2шт.
