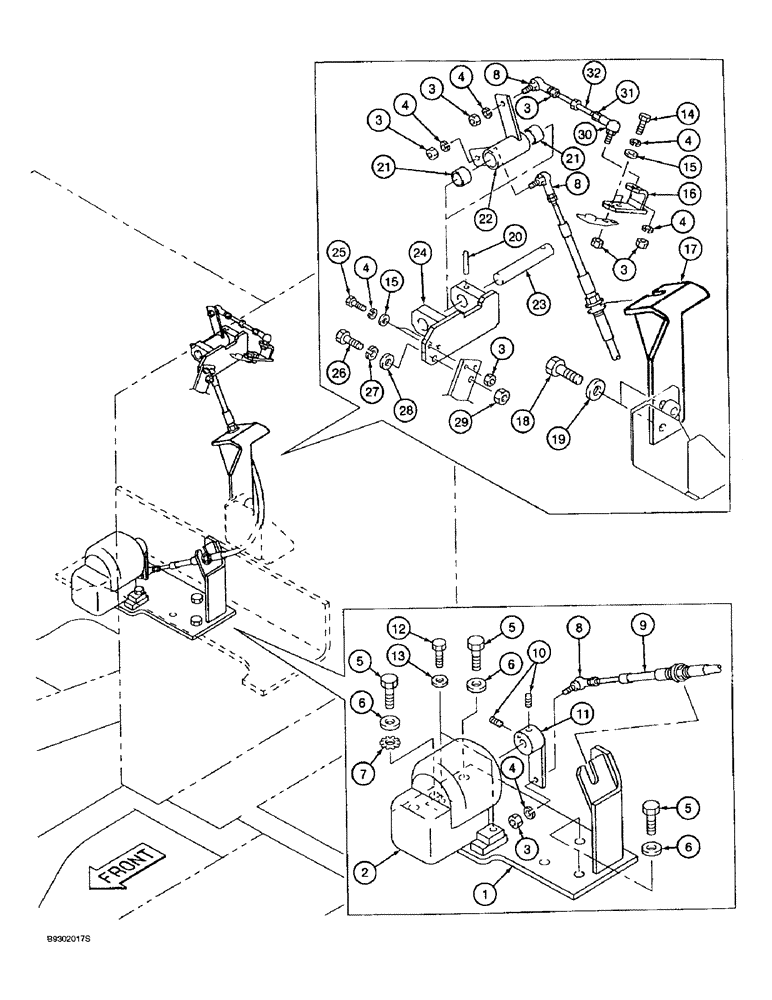

Запчасти Case 9010 (3-06) - THROTTLE AND FUEL SHUTOFF CONTROLS (03) - FUEL SYSTEM

1

151450A1

BRACKET

mounting throttle motor

1шт.

2

152920A1

MOTOR

throttle

1шт.

152920A1R

REMAN-ELECTRIC MOTOR

9010 (2/93-)

1шт.

152920A1C

CORE-ELECTRIC MOTOR

Return Number

1шт.

3

829-1406

NUT,Hex, M6 x 1, Cl 10.9

9шт.

4

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

8шт.

5

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 25 mm, class 10.9

4шт.

6

150900A1

WASHER

flat 12 mm

4шт.

7

30574R1

LOCK WASHER,Ext Tooth, M12

WASHER internal tooth lock 12 mm

1шт.

8

150054A1

BALL JOINT

JOINT ball throttle cable

3шт.

9

151457A1

CABLE PULLING GRIP

CABLE control

1шт.

10

878-10812

SET SCREW,Hex Skt, M8 x 12mm, Cup Pt

SCREW - set, hex socket, 8 - 1.25 x 12 mm, cup point

2шт.

11

151454A1

LEVER

throttle control at motor

1шт.

12

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

hex, full threads, 10 - 1.5 x 20 mm, class 10.9

2шт.

13

150594A1

WASHER

WASHER flat 10.5 x 18 x 3.2 mm

2шт.

14

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, class 10.9

2шт.

15

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

16

151426A1

CONTROL LEVER

LEVER control

1шт.

THE SMALL PART JUST BELOW REF#16 IS PART OF THE INJECTION PUMP AND CAN'T BE OBTAINED THRU CASE.

1шт.

17

151460A1

BRACKET

throttle cable support

1шт.

18

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 30 mm, class 10.9

2шт.

19

150811A1

WASHER

flat, special 12 mm

2шт.

20

838-1632

LOCK PIN,6mm OD x 32mm L, Slotted

Roll M6 x 32, Slotted

1шт.

21

151272A1

BUSHING

bellcrank

2шт.

22

151431A1

LINK ASSY.

BELLCRANK throttle control

1шт.

23

151507A1

PIN

pivot bellcrank retaining

1шт.

24

151441A1

BRACKET

pivot pin mounting

1шт.

25

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

- hex, full threads 6 - 1.0 x 25 mm, class 10.9

2шт.

27

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

28

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat 9 x 17 x 1.6 mm

1шт.

29

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

1шт.

30

150045A1

BALL JOINT

JOINT ball

1шт.

31

829-12406

NUT,M6, Cl 8 5, LH

hex, left-hand threads 6 mm - 1.0, class 10

1шт.

32

151446A1

ROD

threaded ball joint connecting

1шт.

26

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

hex, full threads 8 - 1.25 x 25 mm, class 10.9

1шт.
