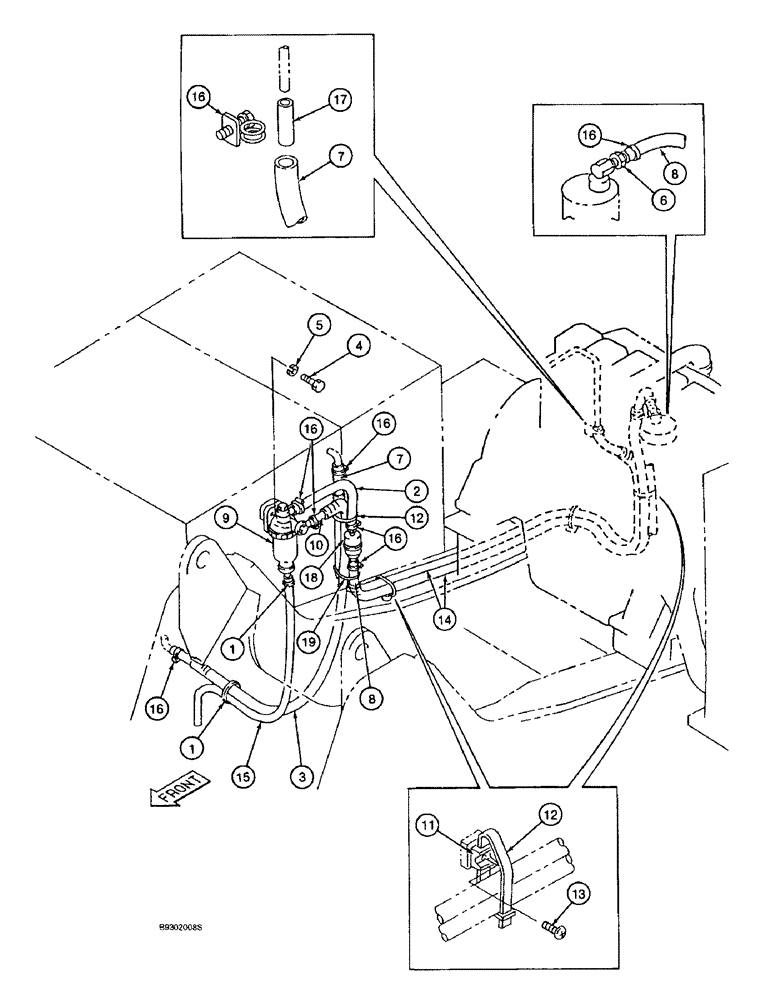

Запчасти Case 9010 (3-04) - FUEL LINES (03) - FUEL SYSTEM

1

150067A1

MOUNTING CLIP

STRAP tie 150 mm long

1шт.

2

150175A1

PLASTIC-RUBBER TUBE

TUBE fuel supply at, Serial Range: separator-filter

1шт.

3

150774A1

PLASTIC-RUBBER TUBE

SLEEVE corrugated 39-3/8 inch (1000 mm) long fuel, Serial Range: tank-separator

1шт.

4

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

hex, full threads 8 - 1.25 x 20 mm, class 10.9

2шт.

5

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

6

151659A1

NIPPLE, LUBE

ADAPTER straight, special fuel line, at primer pump

1шт.

7

150395A1

PLASTIC-RUBBER TUBE,9.5 mm ID, 14.5 mm OD, 2200 mm Length

TUBE fuel return from injector lines

1шт.

8

150289A1

PLASTIC-RUBBER TUBE,9.5 mm ID, 14.5 mm OD, 2000 mm Length

TUBE fuel supply filter to primer pump

1шт.

9

151071A1

WATER TRAP

SEPARATOR ASSEMBLY water from fuel, parts list Figure 3-16

1шт.

10

150247A1

FUEL HOSE,9.5 mm ID, 14.7 mm OD

TUBE vinyl, pink 47-1/4 inch (1200 mm) long to separator

1шт.

11

150860A1

COLLAR

BRACKET support

2шт.

12

150496A1

MOUNTING CLIP

STRAP tie 250 mm long

1шт.

13

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

machine, pan Phillips 6 - 1.0 x 8 mm, clamp bracket mounting

2шт.

14

150776A1

PLASTIC-RUBBER TUBE

SLEEVE corrugated 78-3/4 inch (2000 mm) long fuel, Serial Range: tank-engine

2шт.

15

150355A1

FUEL TUBE,9.5 mm ID, 14.5 mm OD, 700 mm Length

TUBE drain fuel line separator

1шт.

16

153043A1

COLLAR

CLAMP wire-type

8шт.

17

152374A1

SPACER

SLEEVE rubber at injector

1шт.

18

D145357

FILTER

fuel, in-line

1шт.

Use D139225.

1шт.

19

150496A1

MOUNTING CLIP

STRAP tie 250 mm long

1шт.
