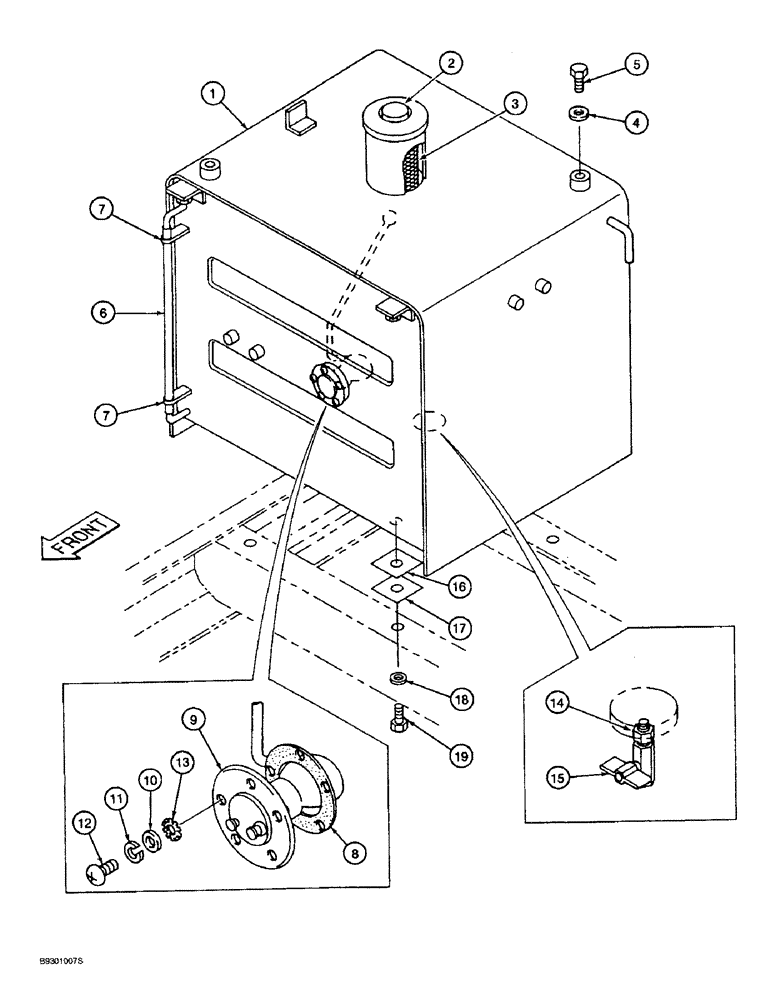

Запчасти Case 9010 (3-02) - FUEL TANK (03) - FUEL SYSTEM

1

150935A1

FUEL TANK

TANK fuel

1шт.

Filler neck for fuel tank = 150605a1.

1шт.

2

150492A1

LOCKABLE FUEL CAP

CAP fuel tank, Includes: Ref. 2A

1шт.

2a

163804A1

GASKET

special fuel tank cap, not shown

1шт.

3

150146A1

FILTER

fuel tank

1шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

5

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 20 mm, class 10.9

1шт.

6

150154A1

TUBE,9.5 mm ID, 14.5 mm OD, 500 mm Length

GAUGE sight fuel tank

1шт.

7

150162A1

CLAMP

tube

2шт.

8

152591A1

GASKET,2mm Thk

fuel level sender

1шт.

9

152111A1

SENSOR

fuel level

1шт.

10

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

5шт.

11

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

5шт.

12

840-1512

SCREW,Pan, M5 x 12mm, Gr 4.8

machine, pan Phillips 5 - 0.8 x 12 mm

5шт.

13

893-11005

LOCK WASHER,Ext Tooth, M5

WASHER - external tooth lock, 5 mm

1шт.

14

150847A1

HYD CONNECTOR

CONNECTOR straight fuel tank to drain valve

1шт.

15

158923A1

DRAIN VALVE

VALVE fuel tank drain, was 157802A1

1шт.

16

150166A1

SHIM

1/32 inch (0.8 mm) thick

1шт.

17

150479A1

SHIM

5/64 inch (2.0 mm) thick

1шт.

18

150991A1

WASHER

flat, special 16 mm 30 mm, class 10.9

4шт.
