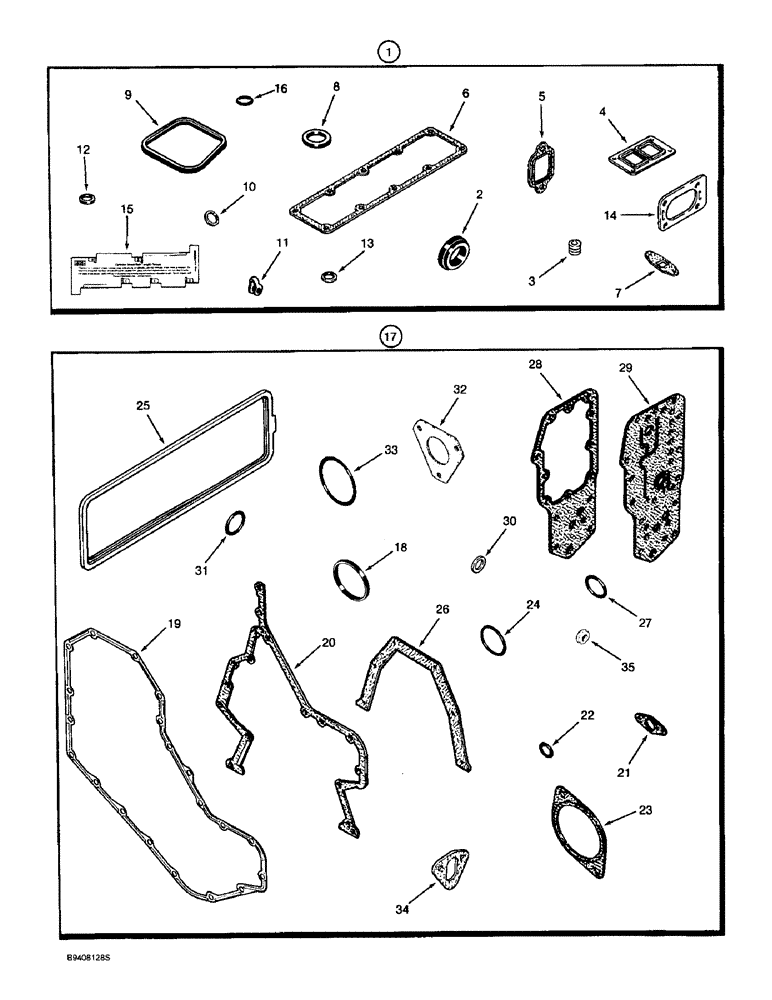

Запчасти Case 9010 (2-44) - ENGINE GASKET KITS, 4T-390 ENGINE, VALVE GRIND (02) - ENGINE

1

A77792

GASKET KIT

KIT gasket, valve grind

1шт.

When the valve grind gasket kit is used, also order the required cylinder head gasket on Figure 2-26.

1шт.

2

J923331

GASKET

thermostat housing

1шт.

3

J901097

SEAL

8шт.

4

J901356

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

5

J905443

MANIFOLD GASKET

exhaust manifold

4шт.

6

J914028

GASKET

intake manifold

1шт.

7

J914388

GASKET

turbo oil drain tube

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

oil fill cap not used in this application

1шт.

9

J902666

GASKET

SEAL rocker arm cover

4шт.

10

J900808

SEAL

injector nozzle 9 mm injector tip not used in this application

4шт.

11

J903380

SEAL

connector fuel drain manifold tube

4шт.

12

J906659

SEAL

injector nozzle, 7 mm injector tip

4шт.

13

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING sealing, Serial Range: body-nut

4шт.

14

J914856

GASKET,1.02mm Thk

air crossover connection

1шт.

15

J823921

GAUGE

cylinder head, bolt length

1шт.

16

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt

4шт.

17

A77671

GASKET KIT

KIT gasket, engine block

1шт.

For complete engine overhaul, order (1) each of valve grind kit, cylinder block kit, oil pan kit, Figure 2-24, front and rear crankshaft seal kit, Figure 2-38 and required cylinder head gasket, Figure 2-26.

1шт.

18

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

front access cover, cylinder block

1шт.

19

J914385

GASKET,1.02mm Thk

front cover, cylinder block

1шт.

20

J916131

GASKET

gear housing, cylinder block

1шт.

21

J905595

GASKET

timing pin housing not used in this application, cylinder block

1шт.

22

J913994

O-RING

sealing, cylinder block

1шт.

23

J919601

GASKET

access cover plate, cylinder block

1шт.

24

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Water pump to block, cylinder block -341, 70 Duro, 3.475" ID x .210" Thk

1шт.

25

J928831

GASKET

tappet cover, cylinder block

1шт.

26

J928493

GASKET

rear cover retainer crankshaft, cylinder block

1шт.

27

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING sealing 50 mm ID water inlet connection, cylinder block

1шт.

28

J926760

GASKET

oil cooler core, cylinder block

1шт.

29

J926760

GASKET

oil cooler core, cylinder block

1шт.

30

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug, cylinder block

1шт.

31

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING, 38 mm ID, cylinder block

1шт.

32

J914389

GASKET

pump mounting, cylinder block

1шт.

33

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING flywheel housing to block, cylinder block

1шт.

34

J923054

GASKET

mounting, fuel transfer pump, cylinder block

1шт.

35

J900267

SEAL

cover bolt, cylinder block

4шт.
