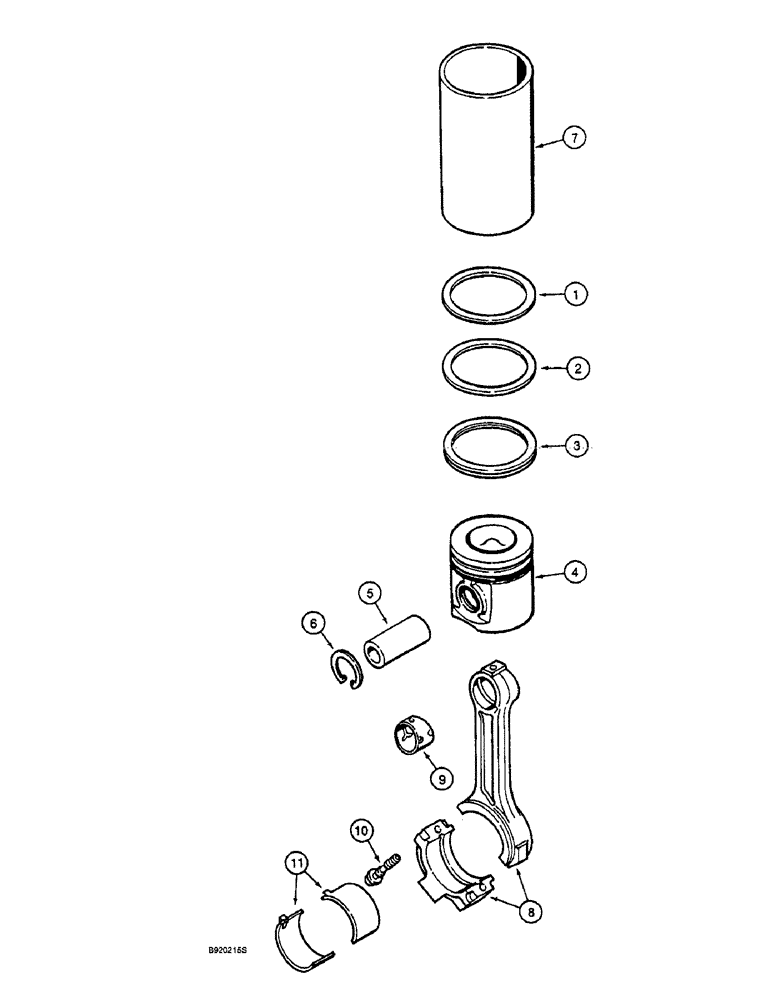

Запчасти Case 9010 (2-42) - PISTONS AND CONNECTING RODS, 4T-390 ENGINE (02) - ENGINE

A77730

PISTON,104MM PISTON DIAMETER

KIT piston, Includes: P/N A77727 and Ref. 1-6

4шт.

A77727

PISTON RING SET

KIT ring, standard Includes: Ref. 1-3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 1.0 mm oversize (Stamped 8816)1

1шт.

5

J901793

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

snap

2шт.

A77731

PISTON & RINGS KIT

KIT piston, Includes: P/N A77728 and Ref. 1-6

4шт.

A77728

PISTON RING SET

KIT ring, Includes: Ref. 1-6

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 1.0 mm, oversize (Stamped 8816)

1шт.

5

J901793

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

snap

2шт.

A77732

PISTON

KIT piston, Includes: P/N A77729 and Ref. 1-4

4шт.

A77729

PISTON RING SET

KIT ring

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 1.0 mm,oversize (Stamped 8816)

1шт.

5

J901793

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

snap

2шт.

7

J904166

SLEEVE

LINER piston, used only in engine block repair (when liner is installed, use A77730 standard piston kit)

1шт.

J925232

ROD, CONNECTING

ROD ASSEMBLY connecting, new replaces J901569 rod assembly, Includes: Ref. 8-10

4шт.

JR925232

ROD

Assembly connecting, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly replaces JR901569 rod assembly

4шт.

JC925232

CORE-ROD CONNECTING

Return Number, use this part number to return connecting rod for credit when using a remanufactured assembly replaces JC901569

4шт.

84145405R

REMAN-CONNECTING ROD

9010 (2/93-), Reman For New PN J925232

4шт.

84145405C

CORE-ROD CONNECTING

Return Number

4шт.

JR942581

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

4шт.

JC942581

CORE-ROD CONNECTING

Return Number

4шт.

JC901569

CORE-ROD CONNECTING

Return Number, Connecting Rod

4шт.

8

NSS

NOT SOLD SEPARAT

ROD connecting

1шт.

9

J901085

BUSHING

- connecting rod

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT hex, special special, connecting rod

2шт.

11

A77465

BEARING SET

KIT bearing, upper and lower set, connecting rod

4шт.

11

A77466

BEARING SET

KIT bearing, upper and lower set, connecting rod

4шт.

11

A77467

BEARING LINER

KIT bearing, upper and lower set, connecting rod

4шт.

11

A77468

BEARING SET

KIT bearing, upper and lower set, connecting rod

4шт.

11

A77469

BEARING SET

KIT bearing, upper and lower set, connecting rod

4шт.
