Запчасти Case 9010 (2-40) - FLYWHEEL AND HOUSING, 4T-390 ENGINE (02) - ENGINE

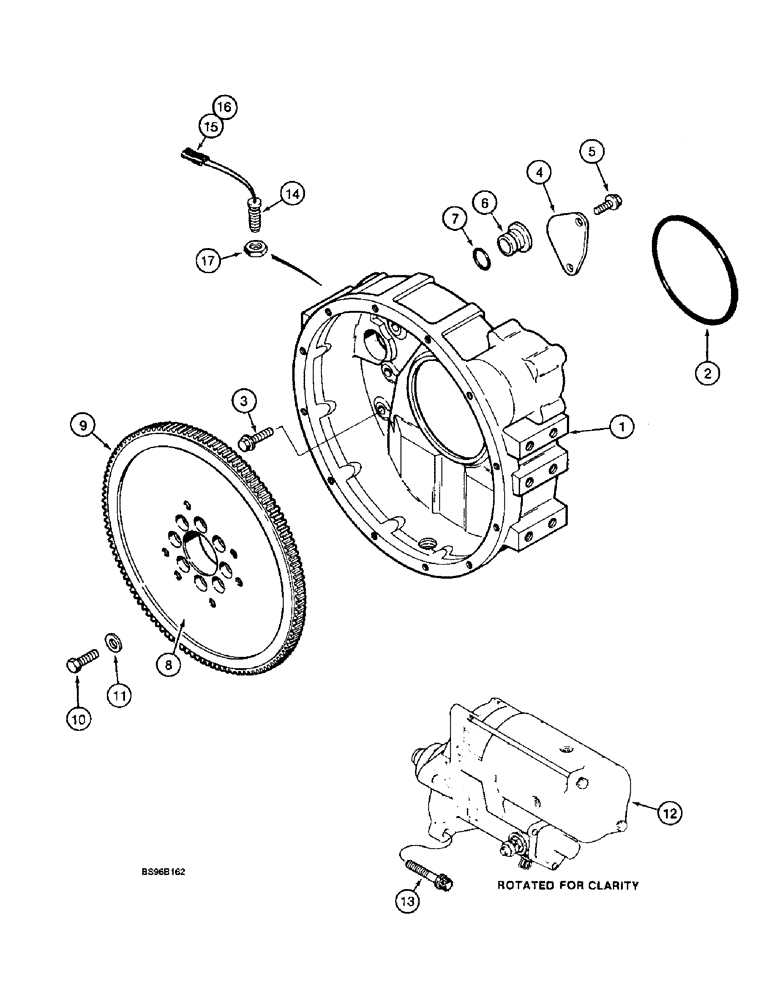

Схема запчастей Case 9010 - (2-40) - FLYWHEEL AND HOUSING, 4T-390 ENGINE (02) - ENGINE
8
3
14
15
17
10
16
9
6
1
7
4
5
11
2
13
12

Артикул

Название

Примечание

Количество

1

J903282

HOUSING

HOUSING flywheel

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING O-RING flywheel, Serial Range: housing-block

1шт.

3

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

BOLT - heavy hex flange, 12 - 1.75 x 40 mm, class 10.9, Flywheel housing to block

8шт.

4

J908095

PLATE

PLATE cover

1шт.

5

J902735

BOLT,M8 - 1.25 x 21 mm

BOLT hex flange, self tapping plate retaining

2шт.

6

J910248

PLUG

PLUG flywheel housing

1шт.

7

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

O-RING, -212, 70 Duro, .859" ID x .139" Thk

7шт.

8

J907466

FLYWHEEL

FLYWHEEL ASSEMBLY engine, Includes: Ref. 9

1шт.

9

J905427

GEAR

GEAR ring, flywheel

1шт.

10

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex, special, 12 - 1.25 x 32 mm

8шт.

11

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

WASHER flat, special

8шт.

12

1987566C1

STARTER MOTOR,24V, 5.5kW

STARTER ASSEMBLY engine see parts list Figure 4-4

1шт.

For use with Encore blocks order J934119.

1шт.

12

1987566C1R

REMAN-STARTER,24V, 5.5kW

Reman For New PN 1987566C1

1шт.

12

1987566C1C

CORE-STARTER,24V, 5.5kW

Return Number

1шт.

12

1987566C1GV

STARTER MOTOR,24V, 5.5kW

Value

1шт.

13

J903834

12 PT SCREW,M10 x 1.5 x 35mm, Cl 10.9

BOLT special 12 point starter to flywheel housing

3шт.

A187584

SENSOR

SENDER ASSEMBLY, engine rpm located at top of flywheel housing, if used Includes: Ref. 14-17

1шт.

14

NSS

NOT SOLD SEPARAT

HOUSING threaded with electrical wiring, if used

1шт.

15

245483C1

ELEC CONNECTOR,Male, 2 Pin

CONNECTOR engine rpm sender, female if used

1шт.

16

225127C1

PLUG

SEAL sender cables if used

2шт.

17

425-1512

JAM NUT,Jam, 3/4"-10, G5

NUT hex, jam 3/4 inch NF if used

1шт.

Выбрано товаров: 22
