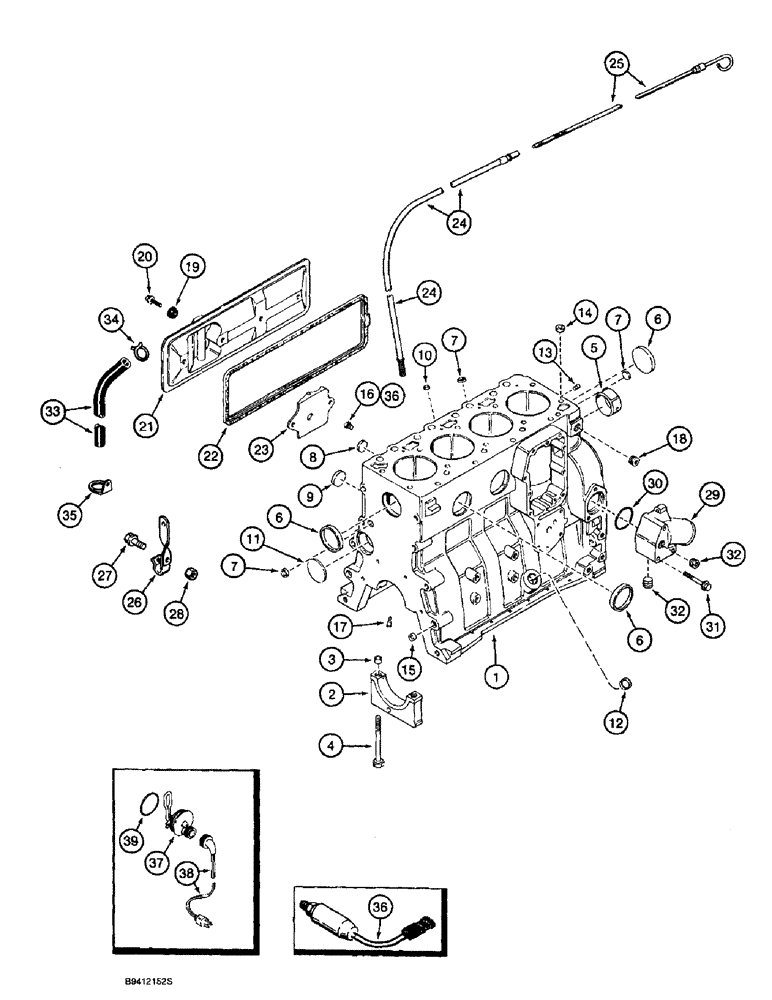

Запчасти Case 9010 (2-32) - CYLINDER BLOCK, 4T-390 ENGINE (02) - ENGINE

1989156C1

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY, 4T-390 standard, complete, includes all parts except fan, air cleaner, muffler and exhaust pipe for service order 1989092C2 basic engine below

1шт.

1989156C1R

REMAN-REPLACEMENT EN

1шт.

4T-390C

CORE-REPLACEMENT ENG

Return Part Number, Complete

1шт.

1989092C2

BASIC ENGINE

ENGINE ASSEMBLY, basic, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front pulley, belt tensioner, turbocharg

1шт.

1989092C3R

REMAN-BASIC ENGINE

ENGINE ASSEMBLY, basic, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front pulley, belt tensioner, turbocharg

1шт.

1989092C3C

CORE-BASIC ENGINE

Return Part Number

1шт.

JR920387

SKELETON ENGINE

Block Assembly, short, remanufactured, component parts on this page do not apply to the remanufactured assembly replaces AR77759 short block assembly

1шт.

JC920387

SKELETON ENGINE

Return Part Number

1шт.

AR77758

BLOCK ASSY.

1шт.

AC77758

CORE-ENGINE

Return Part Number, use this part number to return short block core for credit when using a remanufactured assembly

1шт.

J920387

SKELETON ENGINE

BLOCK ASSEMBLY, short, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings

1шт.

Order J920399 hardware kit when ordering J920387 block assembly or J916254 stripped block.

1шт.

JR933236

REMAN-SHORT ENGINE

1шт.

JC933236

CORE-SHORT ENGINE

Return Part Number

1шт.

1

J916254

BLOCK ASSY.

BLOCK ASSEMBLY, stripped, engine, Includes: Ref. 2-8

1шт.

Order J920399 hardware kit when ordering J920387 block assembly or J916254 stripped block.

1шт.

2

J900967

BEARING CAP

CAP main bearing

5шт.

3

J900068

BEARING WASHER

RING dowel 18 mm O.D.

10шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT main bearing cap, special

10шт.

5

REF

INSTRUCTION

BUSHING camshaft, front, see Figure 2-30, Ref. 2

1шт.

6

A77782

PLUG

PLUG expansion 58 mm O.D.

4шт.

7

J900956

PLUG

PLUG expansion 18 mm O.D.

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

PLUG, , Replaces 23624R1 plug Cup, 1", Stainless

2шт.

J802641

PACKAGE, REPAIR

KIT block hardware, Includes: Ref. 9-18

1шт.

Order J920399 hardware kit when ordering J920387 block assembly or J916254 stripped block.

1шт.

9

J900958

PLUG

PLUG expansion 32 mm O.D.

1шт.

10

J900955

PLUG

PLUG expansion 10 mm O.D.

1шт.

11

172599

PLUG,Exp, 2 3/8"

PLUG expansion, Welch 60 mm O.D.

1шт.

12

A77439

PLUG

PLUG expansion 22 mm O.D. not used in this application, Includes: Ref. 14, Figure 2-18, J903744 turbocharger oil drain tube is installed in this port

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

PIN dowel 16 mm long locating

2шт.

14

J902343

DOWEL

RING dowel 16 mm O.D.

2шт.

15

J900068

BEARING WASHER

RING dowel 18 mm O.D.

2шт.

16

J906619

PLUG,1/8" - 27

PLUG hex 1/8 inch PT (1) not used in this application, item used in this application, Includes: Ref. 36, Figure 2-36, 1546461C1 engine oil pressure switch is installed in this oil port

2шт.

17

J919002

NOZZLE CAP

NOZZLE piston cooling (4 used in this application)

6шт.

18

A77429

PLUG

PLUG hex socket 1/2 inch PT

1шт.

19

J900267

SEAL

SEAL cover bolt

4шт.

20

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 20 mm

4шт.

21

J916441

COVER

COVER tappet

1шт.

22

J928831

GASKET

GASKET tappet cover

1шт.

23

J907586

BAFFLE

BAFFLE tappet cover

1шт.

24

J279238

TUBE

TUBE dipstick oil, one-piece, replaces J922886 tube

1шт.

25

J907708

DIPSTICK

DIPSTICK engine oil

1шт.

(J907708) dipstick now subs to J914731 dipstick.The J907708 is 710.0 mm long from the top of the round cap to the tip.The J914731 is 1141.7 mm long in comparisson. When making this change you must remove the old shorter one piece dipstick tube from the block and replace it with the newer three piece tube design used in early production 9010B's and 9020B's. The three tube pieces needed are: J905802 upper end tube, J905801 middle tube, and A77645 lower end tube.You will also need to order 1 pc of 214-1308 spr

1шт.

26

J905804

BRACKET

BRACE tube

1шт.

27

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm, Dipstick tube to brace

1шт.

28

825-1408

NUT,M8, Cl 8

Nut, , Dipstick tube to brace M8, Cl 8

1шт.

29

J903103

MANIFOLD

CONNECTION water inlet

1шт.

30

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING sealing 50 mm ID

1шт.

31

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

BOLT heavy hex flange 10 - 1.5 x 75 mm, class 10.9

3шт.

32

A77429

PLUG

PLUG hex socket 1/2 inch PT

2шт.

33

1981643C1

HOSE

HOSE, 31-1/2 inch (800 mm) long engine breather

1шт.

34

J904230

CLAMP,25.4mm

CLAMP spring, hose breather hose to tappet cover

1шт.

35

J909670

CLIP

CLIP retaining breather hose to torque converter access cover screw

1шт.

36

1546461C1

SWITCH

SWITCH oil pressure 10 psi installed in the No. 1 oil port on the injection pump side of engine the injection pump side of engine

1шт.

196803A1

KIT

KIT engine block heater, Includes: Ref. 37,38

1шт.

37

NSS

NOT SOLD SEPARAT

HEATER engine block, heater

1шт.

38

J905113

CABLE

CABLE engine block heater

1шт.

39

J910517

O-RING

O-RING heater sealing, engine block

1шт.
