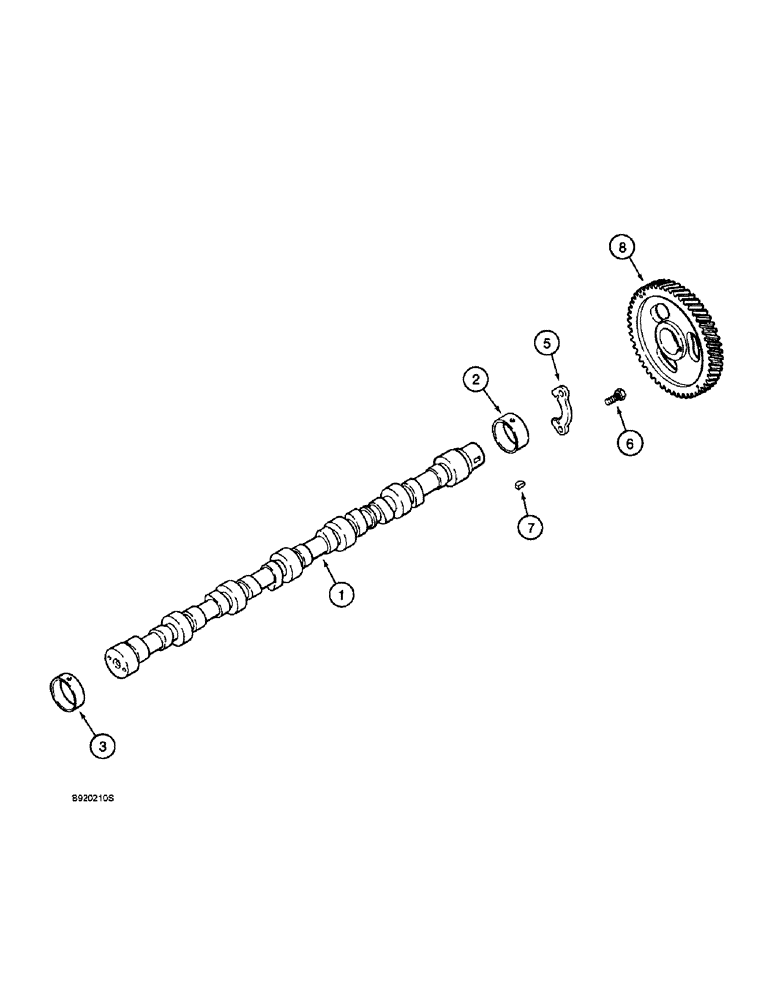

Запчасти Case 9010 (2-30) - CAMSHAFT, 4T-390 ENGINE (02) - ENGINE

1

J929039

CAMSHAFT

engine replaces J914638 camshaft

1шт.

J929039R

REMAN-CAMSHAFT

9010 EXCAVATOR, (2/93-)

1шт.

J929039C

CORE-CAMSHAFT

Return Number

1шт.

2

J901306

BUSHING

camshaft, front

1шт.

2

J904369

BUSHING

camshaft, front, oversize 58 mm O.D.

1шт.

3

J903242

BUSHING,54.12mm ID x 57.38mm OD x 18mm L

camshaft, intermediate and rear service repair only

6шт.

When the intermediate and rear cylinder block camshaft bores are reamed in engine repair, order and install Ref. 3, J903242 bushings shown above.

1шт.

5

J927155

SUPPORT

thrust, camshaft replaces J914641

1шт.

6

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

7

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Replaces J902332 #6, 5/32" x 5/8", HT

1шт.

8

J929030

PINION

GEAR camshaft replaces J907431 gear

1шт.
