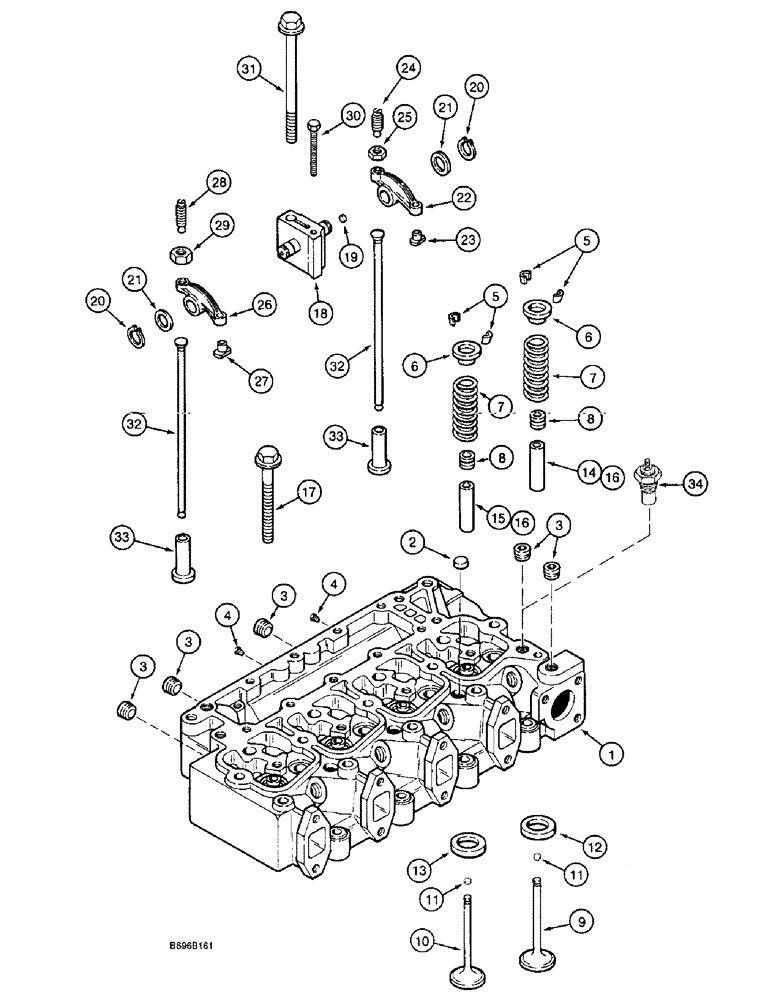

Запчасти Case 9010 (2-28) - CYLINDER HEAD AND VALVE MECHANISM, 4T-390 ENGINE (02) - ENGINE

JR929736

REMAN-CYLINDER HEAD

HEAD ASSEMBLY, cylinder, remanufactured, North America only, component parts shown on this figuredo not apply to the remanufactured assembly replaces JR920611 head assembly

1шт.

JC929736

CORE-CYLINDER HEAD

RETURN NUMBER, use this part number to return head for creditwhen using a remanufacturedassembly replaces JC920611

1шт.

J929736

HEAD (CYLINDER)

HEAD ASSEMBLY, cylinder, new, with valves replaces J920611 head assemb, Includes: Ref. 1-10

1шт.

1

J920005

HEAD (CYLINDER)

HEAD ASSEMBLY, cylinder, new, valves replaces J920611 head, Includes: Ref. 2

1шт.

2

A77783

PLUG

expansion 21 mm O.D.

3шт.

3

A77429

PLUG

hex socket 1/2 inch PT (one removed to install Ref. 34, 1983238C1 coolant temperature

5шт.

4

J906619

PLUG,1/8" - 27

hex 1/8 inch PT

2шт.

5

J900250

SCREW

KEEPER valve

16шт.

6

J900299

RETAINER

valve spring

8шт.

7

J926700

VALVE SPRING

SPRING valve replaces J900276 spring

8шт.

8

J901097

SEAL

8шт.

9

J920867

VALVE

intake

4шт.

10

J920868

VALVE

exhaust

4шт.

11

J280911

WEAR PAD

PAD

4шт.

12

J906854

SEAT, VALVE

SEAT insert, intake valve, service repair only

4шт.

13

J904105

SEAT, VALVE

SEAT insert, exhaust valve,service repair only

4шт.

14

J904408

GUIDE

valve, intake, service repair only 14 mm OD

4шт.

These parts are semi-finished valve guides.

1шт.

15

J904409

GUIDE

valve, exhaust, service repair only 14 mm OD

4шт.

These parts are semi-finished valve guides.

1шт.

16

J906206

GUIDE

valve, intake and exhaust, service repair only 11 mm OD

8шт.

These parts are semi-finished valve guides.

1шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

BOLT, SPECIAL - cylinder head, 70 mm long

4шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

- cylinder head, 120 mm long

10шт.

18

J910814

SUPPORT

AND SHAFT ASSEMBLY rocker arm if used, Includes: Ref. 19

4шт.

19

J907555

PLUG

rocker arm shaft, 1/4-18 PT

1шт.

20

J900242

SNAP RING

RING retaining, rocker arm

8шт.

21

J900245

WASHER

thrust, rocker arm

8шт.

22

J910811

ROCKER

ARM ASSEMBLY rocker, intake, Includes: Ref. 23-25

4шт.

23

NSS

NOT SOLD SEPARAT

INSERT arm

1шт.

24

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW slotted set, adjusting, special

1шт.

25

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

26

J910810

ROCKER

ARM ASSEMBLY rocker, exhaust, Includes: Ref. 27-29

4шт.

27

NSS

NOT SOLD SEPARAT

INSERT arm

1шт.

28

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW slotted set, adjusting, special

1шт.

29

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

30

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

4шт.

31

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

BOLT, SPECIAL rocker arm and cylinder head 180 mm long

4шт.

32

J923262

PUSH ROD

ROD push, rocker arm rocker arm

8шт.

33

J925031

TAPPET

valve, push rod replaces J907240 tappet

8шт.

34

1983238C1

SENSOR,1/2" - 14

SENDER engine coolant temperature installed at front side of cylinder head behind fuel lines

1шт.
