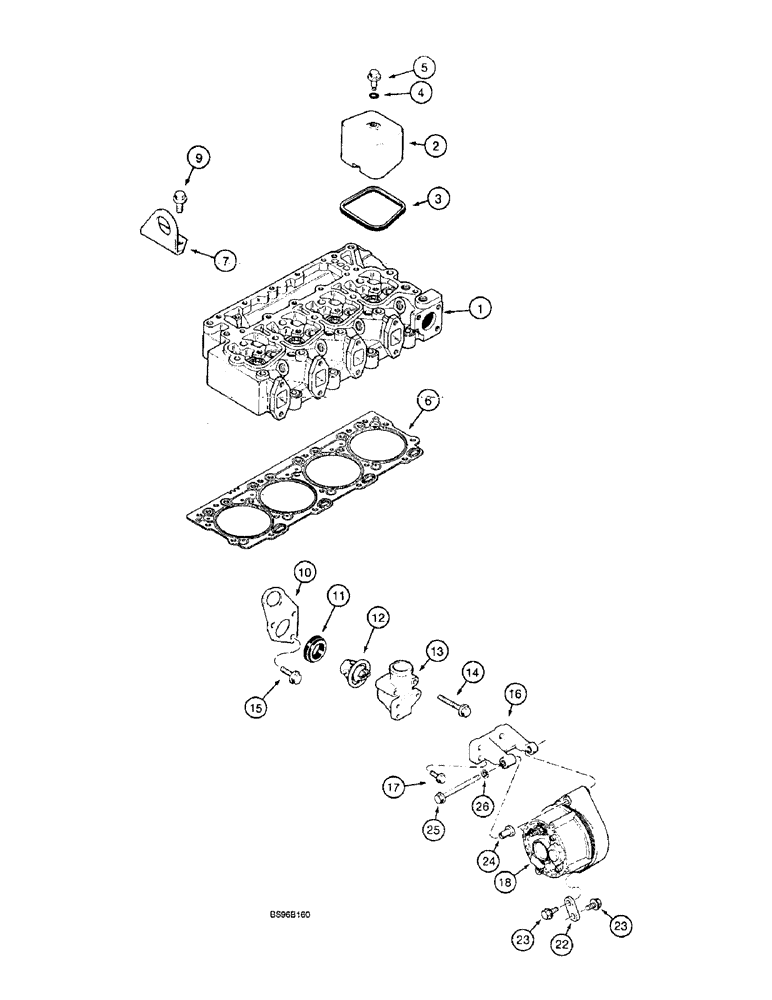

Запчасти Case 9010 (2-26) - CYLINDER HEAD COVER, 4T-390 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD cylinder, see figure 2-28 for correct cylinder head and parts list

1шт.

2

J902604

COVER

rocker arm

4шт.

3

J902666

GASKET

SEAL rocker arm cover

4шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt

4шт.

5

J907049

BOLT,Hex

hex flange, special

4шт.

6

J282999

GASKET

head standard

1шт.

6

J921395

CYLINDER HEAD GASKET

head, 2 notches 0.25 mm overthick

1шт.

6

J921396

CYLINDER HEAD GASKET

head, 2 notches 0.25 mm overthick

1шт.

7

J908118

BRACKET

lifting, rear

1шт.

9

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

heavy hex flange 12 - 1.75 x 25 mm, class 10.9

2шт.

10

J903757

BRACKET

lifting, front, thermostat and housing

1шт.

A77736

THERMOSTAT

KIT coolant thermostat, Includes: Ref. 11,12

1шт.

11

J923331

GASKET

thermostat housing

1шт.

12

NSS

NOT SOLD SEPARAT

THERMOSTAT water, housing

1шт.

13

J914409

HOUSING

thermostat

1шт.

14

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

Thermostat and housing Hex Flg, M8 x 70, 8.8

2шт.

15

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

heavy hex flange 8 - 1.25 x 35 mm, Thermostat and housing

1шт.

16

J923387

SUPPORT

alternator mounting replaces J910713 support, thermostat and housing

1шт.

17

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm, Thermostat and housing

3шт.

18

REF

INSTRUCTION

ALTERNATOR ASSEMBLY, engine parts list Figure 4-2, thermostat and housing

1шт.

22

J903089

SUPPORT

BRACE alternator mounting, thermostat and housing

1шт.

23

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm, Thermostat and housing

2шт.

24

J910715

SPACER

alternator mounting, thermostat and housing

1шт.

25

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

- hex, 10 - 1.5 x 100 mm, Thermostat and housing

1шт.

26

892-11010

LOCK WASHER,M10

Thermostat and housing M10

1шт.
