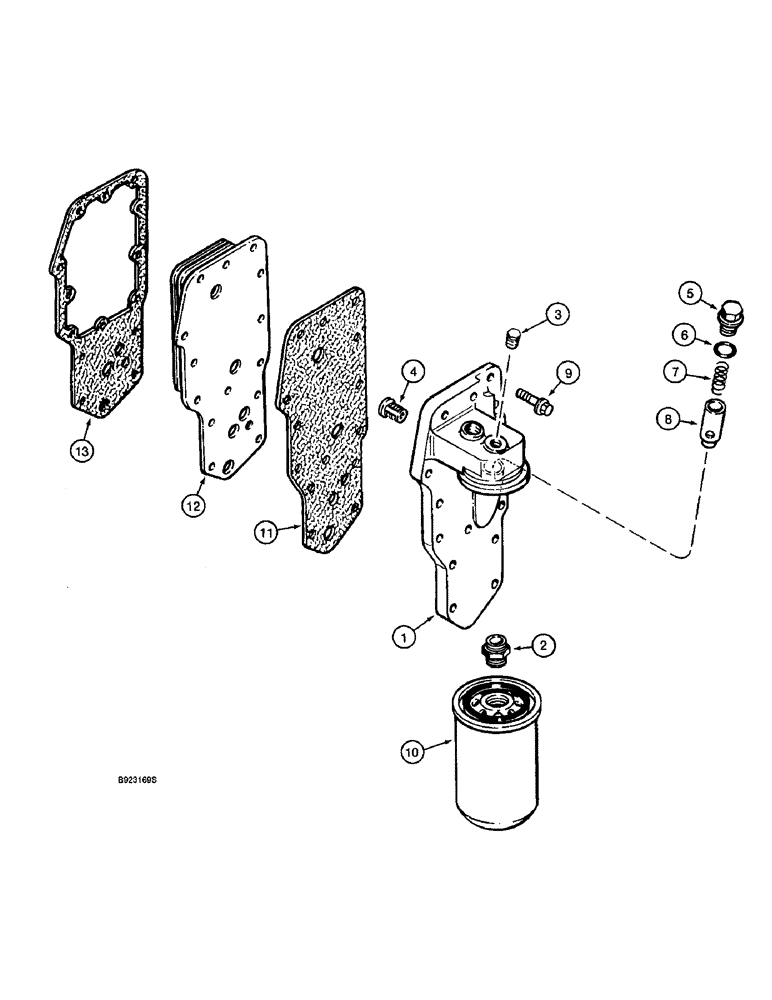

Запчасти Case 9010 (2-22) - OIL FILTER AND COOLER, 4T-390 ENGINE (02) - ENGINE

J918954

HEAD

ASSEMBLY oil filter and cooler, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD oil filter and cooler

1шт.

2

J909355

ADAPTER

filter head

1шт.

3

J906619

PLUG,1/8" - 27

hex 1/8 inch PT

1шт.

4

J902338

VALVE, PRESSURE RELI

VALVE relief, pressure

1шт.

5

J915787

PLUG

threaded

1шт.

6

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

(Replaces J909397) -115, 70 Duro, .674" ID x .103" Thk

1шт.

7

J918427

SPRING

compression

1шт.

8

J918428

PLUNGER

regulator, pressure

1шт.

9

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

heavy hex flange 8 - 1.25 x 35 mm

14шт.

10

J908616

ENGINE OIL FILTER,Single pkg qty. For multi pkg [qty.12] order J908616MP

FILTER engine oil, cartridge, (cartridge)

1шт.

11

J929792

GASKET,1.2mm Thk

filter head replaces J918257

1шт.

12

J921557

COOLER

CORE cooler, oil

1шт.

13

J926760

GASKET

oil cooler core replaces J918256

1шт.
