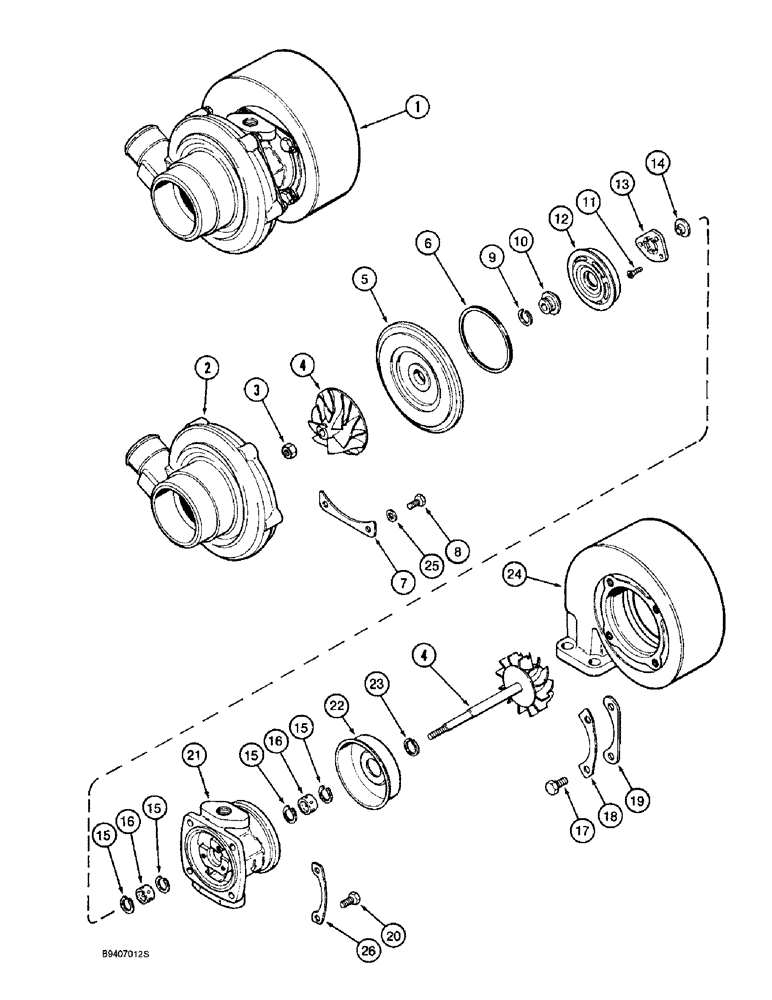

Запчасти Case 9010 (2-20) - TURBOCHARGER, 4T-390 ENGINE (02) - ENGINE

1

J919129

TURBOCHARGER

TURBOCHARGER ASSEMBLY, engine, new production only, order J802290 turbocharger kit shown below, replaces J919135 turbocharger assembly, Include s: Ref.2-26

1шт.

1

JR908293

REMAN-TURBOCHARGER

Reman for New P/N J919129

1шт.

1

JC908293

CORE

Return Part Number\r\n, Use this part number to return turbocharger core for credit when using aremanufactured assembly

1шт.

Part of turbocharger kit, P/N J802290

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING compressor

1шт.

3

NSS

NOT SOLD SEPARAT

NUT hex, lock

1шт.

Part of turbocharger overhaul kit, P/N J545652

1шт.

4

NSS

NOT SOLD SEPARAT

ROTOR turbocharger, includes both halves

1шт.

5

NSS

NOT SOLD SEPARAT

DIFFUSER compressor

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL diffuser

1шт.

Part of turbocharger overhaul kit, P/N J545652

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE diffuser clamping

3шт.

8

NSS

NOT SOLD SEPARAT

SCREW cap

4шт.

Part of turbocharger overhaul kit, P/N J545652

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL split ring, compressor

1шт.

Part of turbocharger overhaul kit, P/N J545652

1шт.

10

NSS

NOT SOLD SEPARAT

SLINGER oil

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW flat head Torx

3шт.

Part of turbocharger overhaul kit, P/N J545652

1шт.

12

NSS

NOT SOLD SEPARAT

BAFFLE oil

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING thrust

1шт.

Part of turbocharger overhaul kit, P/N J545652

1шт.

14

NSS

NOT SOLD SEPARAT

COLLAR thrust

1шт.

15

NSS

NOT SOLD SEPARAT

RING snap, retaining

4шт.

Part of turbocharger overhaul kit, P/N J545652

1шт.

16

NSS

NOT SOLD SEPARAT

BEARING impeller shaft

2шт.

Part of turbocharger overhaul kit, P/N J545652

1шт.

17

NSS

NOT SOLD SEPARAT

BOLT plate retaining

4шт.

Part of turbocharger overhaul kit, P/N J545652

1шт.

18

NSS

NOT SOLD SEPARAT

PLATE lock, turbine housing

2шт.

Part of turbocharger overhaul kit, P/N J545652

1шт.

19

NSS

NOT SOLD SEPARAT

PLATE clamping, turbine housing

2шт.

20

NSS

NOT SOLD SEPARAT

BOLT hex

4шт.

Part of turbocharger overhaul kit, P/N J545652

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING turbine bearing

1шт.

22

NSS

NOT SOLD SEPARAT

SHIELD heat, turbine

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL piston ring, turbine

1шт.

Part of turbocharger overhaul kit, P/N J545652

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING turbine

1шт.

25

NSS

NOT SOLD SEPARAT

WASHER lock

8шт.

Part of turbocharger overhaul kit, P/N J545652

1шт.

26

NSS

NOT SOLD SEPARAT

PLATE lock, turbine

2шт.

J802290

TURBOCHARGER

KIT turbocharger

1шт.

JR802290

REMAN-TURBOCHARGER

9010

1шт.

JC535381

CORE-TURBOCHARGER

Return Part Number

1шт.

J545652

PACKAGE, REPAIR

KIT overhaul, turbocharger, Replaces: Turbocharger Overhaul Kit P/N J904772, Includes: Ref. 3, 6, 8, 9, 11, 13, 15-18, 20, 23 and 25.

1шт.
