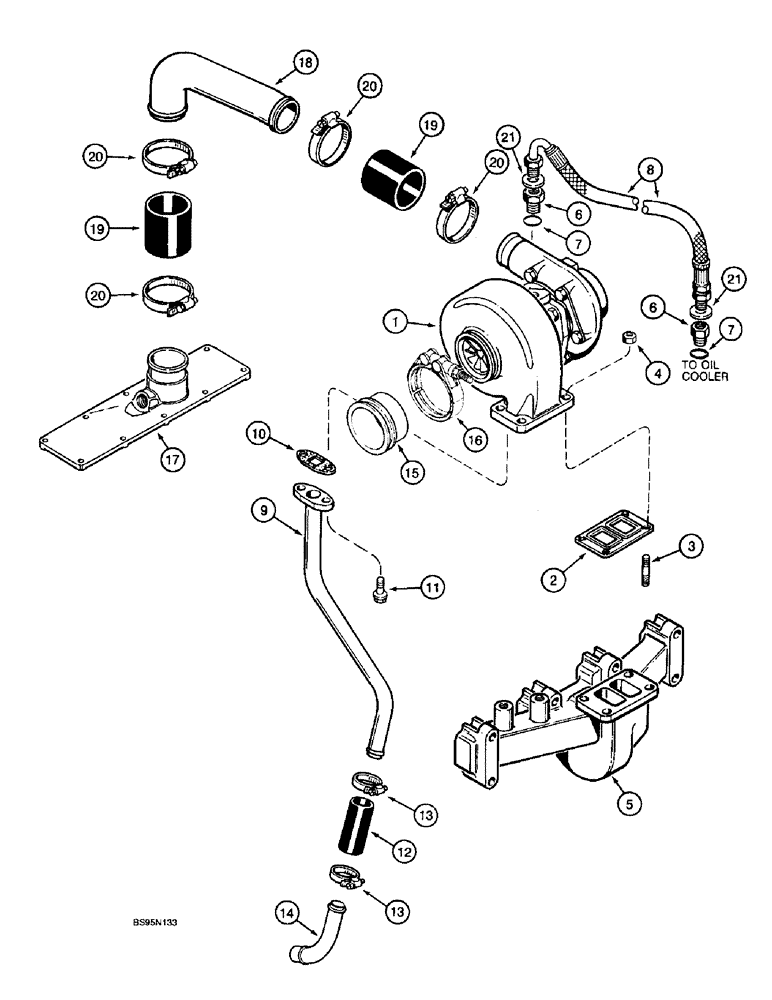

Запчасти Case 9010 (2-18) - TURBOCHARGER SYSTEM, 4T-390 ENGINE (02) - ENGINE

1

J919135

TURBOCHARGER

ASSEMBLY, new parts list Figure 2-20

1шт.

2

J901356

GASKET,0.5mm Thk

turbocharger to, Serial Range: manifold-manifold

1шт.

3

J905417

STUD

turbocharger mounting

4шт.

4

J901961

NUT

hex, special 10 mm - 1.25 turbocharger mounting

4шт.

5

J901635

MANIFOLD

exhaust see Figure 2-16 for mounting parts

1шт.

6

J919687

HYD CONNECTOR

ADAPTER female hex, special, Includes: Ref. 7

2шт.

7

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

8

J909545

HOSE

406 mm (16.0"), Turbocharger

1шт.

9

J903741

TUBE

turbocharger oil drain,upper

1шт.

10

J914388

GASKET

turbo oil drain tube

1шт.

11

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm

2шт.

12

J903745

LARGE HOSE

HOSE, 3 inch (76 mm) long

1шт.

13

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj., Turbocharger drain hose #16, 0.81/1.50 Type F Worm

2шт.

14

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE turbocharger oil drain

1шт.

15

J910990

TUBE,64 mm ID x 72.64 mm OD x 40.50 mm L

exhaust outlet turbocharger to exhaust pipe

1шт.

16

A170467

CLAMP,72mm ID

includes hardware

1шт.

17

J904339

COVER

intake, see Figure 2-16 for mounting parts

1шт.

18

J906624

TUBE,2 mm OD x 265.1 mm L

air intake

1шт.

19

J916166

INTAKE AIR HOSE

HOSE air intake intake

2шт.

20

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable #28, 1.31/2.25 Type F Worm

4шт.

21

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.
