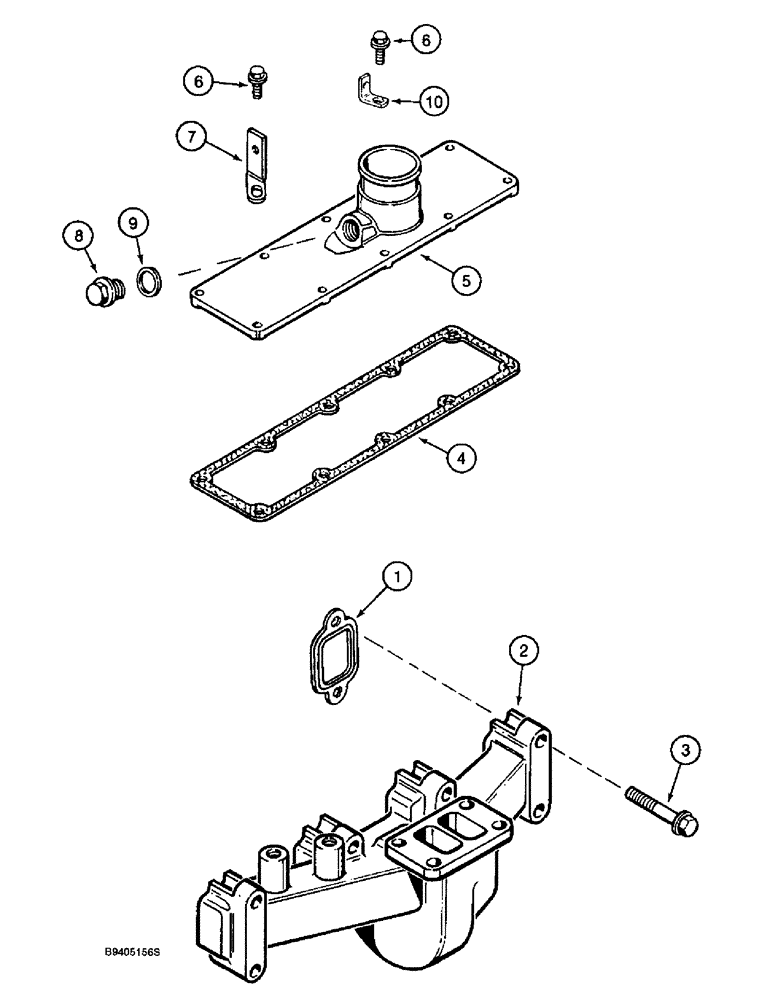

Запчасти Case 9010 (2-16) - MANIFOLDS, 4T-390 ENGINE, EXHAUST MANIFOLD, INTAKE MANIFOLD (02) - ENGINE

1

J901635

MANIFOLD

exhaust

1шт.

2

J905443

MANIFOLD GASKET

exhaust manifold

4шт.

3

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 65 mm, class 10.9

8шт.

4

J914028

GASKET

intake manifold

1шт.

5

J904339

COVER

intake remove to install cold start

1шт.

6

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special intake, manifold, cover to cylinder head, intake Hex Flg Hd, M8 x 1.25 x 25

10шт.

7

J919292

SUPPORT

BRACKET fuel tube see Ref. 17, intake manifold figure 4-8

1шт.

8

J907185

PLUG

manifold remove to install, intake cold start

1шт.

9

J906773

WASHER

plug sealing intake manifold

1шт.

10

J919294

SUPPORT

BRACKET fuel tube see Ref. 16, intake manifold figure 4-8

1шт.
