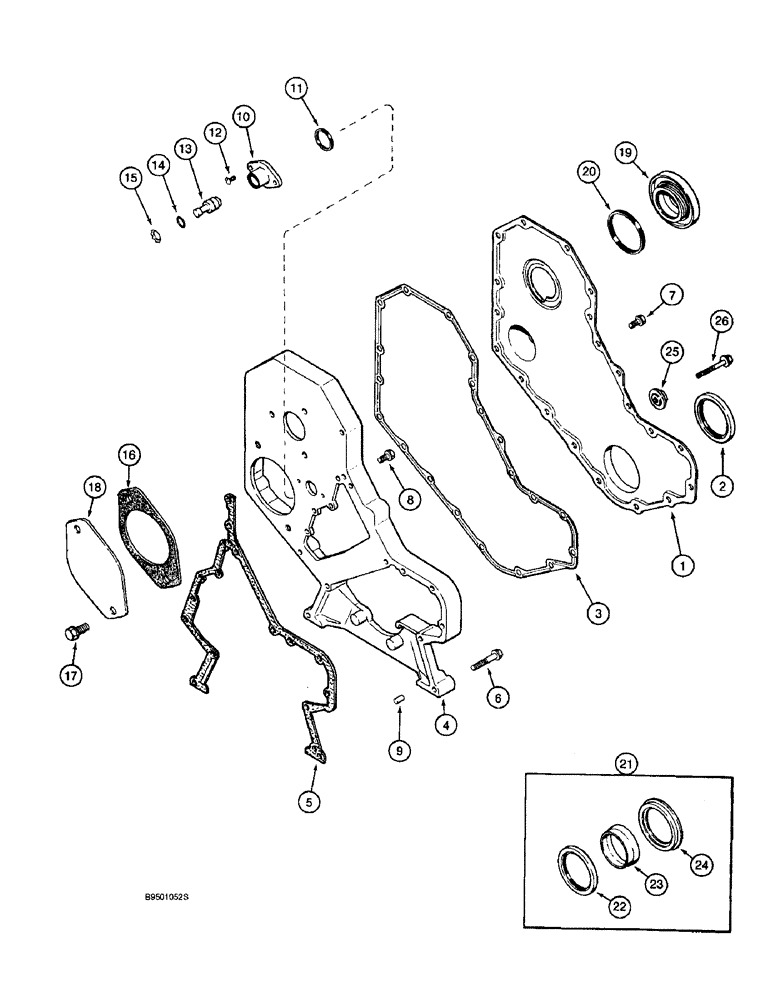

Запчасти Case 9010 (2-14) - FRONT GEAR COVER, 4T-390 ENGINE (02) - ENGINE

1

J903794

COVER

gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL oil, crankcase front, order Ref. 21, J904353 seal kit

1шт.

3

J914385

GASKET,1.02mm Thk

front cover

1шт.

4

J920758

HOUSING

timing gear

1шт.

5

J916131

GASKET

gear housing

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 50 mm

10шт.

7

J924962

FLANGE BOLT

BOLT hex flange, special 8 - 1.25 x 16 mm external, retains Ref. 1 to Ref. 4

11шт.

8

J924962

FLANGE BOLT

BOLT hex flange, special 8 - 1.25 x 16 mm internal, retains Ref., Serial Range: 4-block

5шт.

9

J900257

PIN,10.01mm OD x 16mm L

dowel 16 mm long locating

2шт.

10

J919683

HOUSING

timing pin

1шт.

11

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - quad, timing pin housing

1шт.

12

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

13

J903924

PIN,18.87mm OD x 55mm L

timing

1шт.

14

J913994

O-RING

sealing

1шт.

15

J904849

SNAP RING,0.875", Int, #87

RING, SNAP, , timing pin 0.875", Int, #87

1шт.

16

J919601

GASKET

access cover plate

2шт.

17

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

heavy hex flange 12 - 1.75 x 25 mm, class 10.9

2шт.

18

J914868

COVER

PLATE access cover, flat

1шт.

19

J903463

PLUG,M63 x 5

front access fuel pump drive gear

1шт.

20

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

front access cover fuel pumpdrive gear

1шт.

21

J904353

GASKET KIT

KIT oil seal, crankshaft front, Includes: Ref. 22-24

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft front

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL seal installation

1шт.

24

NSS

NOT SOLD SEPARAT

TOOL seal installation

1шт.

25

J912772

RETAINER

bolt

1шт.

26

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 60 mm

1шт.
