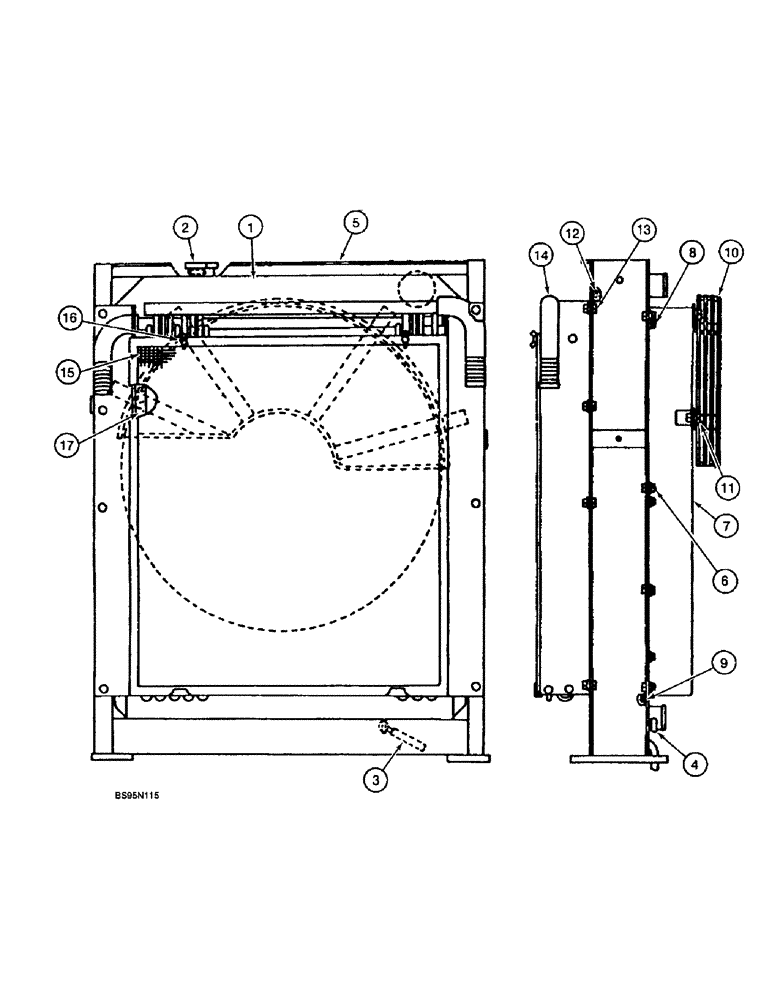

Запчасти Case 9010 (2-10) - RADIATOR ASSEMBLY (02) - ENGINE

151303A1

RADIATOR

ASSEMBLY, engine and hydraulic oil cooling with transmission cooler, no longer available, order components as required below

1шт.

158872A1

RADIATOR

ASSEMBLY, engine, without transmission cooler was156430A1, Includes: Ref. 1-12

1шт.

1

158873A1

RADIATOR

CORE engine cooling

1шт.

2

156601A1

PLUG

CAP radiator

1шт.

3

156671A1

HOSE

radiator drain

1шт.

4

156602A1

COCK

VALVE drain

1шт.

5

158874A1

FRAME

radiator was 157453A1

1шт.

6

158870A1

BOLT

BOLT special, with shakeproof washer

8шт.

7

158875A1

SHROUD

radiator was 156431A1

1шт.

8

156599A1

BOLT

BOLT special

7шт.

9

156672A1

PACKING

PAD insulation

2шт.

10

158154A1

GUARD

fan, radiator was151307A1washer

1шт.

11

158870A1

BOLT

BOLT special, with shakeproof washer

4шт.

12

158876A1

PACKING

PAD insulation

1шт.

13

158870A1

BOLT

BOLT special, with shakeproof washer

7шт.

14

156432A1

COOLER, OIL

CORE transmission oil cooling

1шт.

15

150986A1

FILTER

GRILLE radiator core

1шт.

16

156606A1

BOLT,Wing, M6

BOLT wing type, special

2шт.

17

156675A1

PACKING

PAD insulation

1шт.
