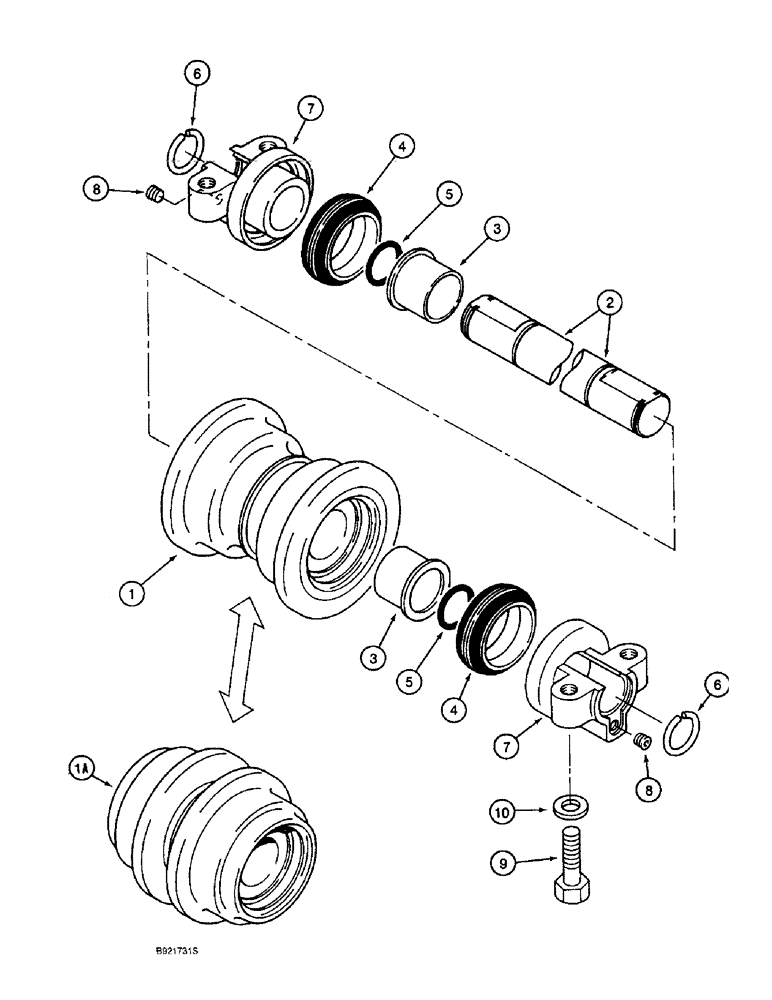

Запчасти Case 9010 (5-12) - TRACK ROLLERS (11) - TRACKS/STEERING

157696A1

ASSEMBLY

ROLLER ASSEMBLY outer flanges, replaces 150713A1

8шт.

157697A1

ASSEMBLY

ROLLER ASSEMBLY inner flanges, replaces 150717A1, Includes: Ref. 1-8

4шт.

1

150715A1

HUB

outer flanges

1шт.

1a

150719A1

HUB

inner flanges

1шт.

2

150588A1

SHAFT

roller

1шт.

3

150593A1

BUSHING

roller

2шт.

4

152125A1

OIL SEAL

face track roller, includes two rings and two seals

2шт.

5

150562A1

O-RING

shaft

2шт.

6

160396A1

CLIP

CLIP wire shaft retaining, replaces 150597A1

2шт.

7

150591A1

COLLAR

BRACKET mounting track roller

2шт.

8

150821A1

PLUG

port

2шт.

9

828-16065

BOLT,Hex, M16 x 2 x 65mm, Cl 10.9

48шт.

10

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

flat, special replaces 150991A1

48шт.
