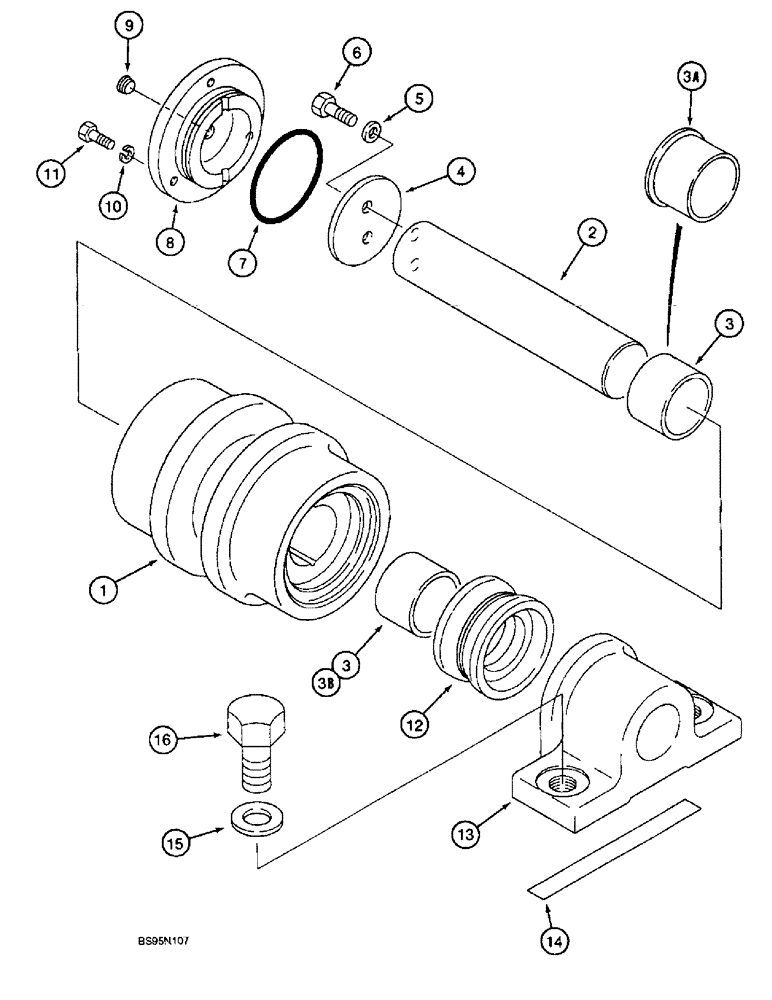

Запчасти Case 9010 (5-10) - TRACK CARRIER ROLLER (11) - TRACKS/STEERING

152204A1

ASSEMBLY

ROLLER ASSEMBLY carrier, track no longer available, order 158774A1 roller for service

2шт.

158774A1

ROLLER

ASSEMBLY carrier, track

2шт.

1

152207A1

ROLLER

carrier 152204A1 roller assembly only, may be replaced with 158775A1 roller, 158776A1 bushing and 158777A1 bushing for service, Includes: Ref. 1-13

2шт.

1

158775A1

ROLLER

carrier 158774A1 roller assembly

1шт.

2

152213A1

SHAFT

carrier roller 152204A1 roller assembly only, may be replaced with 158739A1 shaft and 158740A1 bracket

1шт.

2

158739A1

SHAFT

carrier roller 158774A1 roller

1шт.

3

152235A1

BUSHING

roller nylon, 152204A1 roller assembly

2шт.

3a

158776A1

BUSHING,46mm ID x 70mm OD x 42mm L

roller, cover end, fabricated 158774A1 roller assembly

1шт.

3b

158777A1

BUSHING,46mm ID x 50mm OD x 38mm L

carrier roller, bracket end, fabricated 158774A1 roller assembly

1шт.

4

152230A1

PLATE

RETAINER shaft

1шт.

5

150732A1

WASHER

special 10 mm

2шт.

6

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

7

154667A1

O-RING

cover, was 150200A1

1шт.

8

152224A1

COVER

end carrier roller

1шт.

9

150821A1

PLUG

port carrier roller

1шт.

10

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

12

150359A1

SEAL

face carrier roller, includes two seals and two rings

1шт.

13

152219A1

BRACKET

mounting, carrier roller 152204A1 roller only, may be replaced with 158739A1 shaft and 158740A1 bracket for service

1шт.

13

158740A1

BRACKET

mounting, carrier roller 158774A1 roller

1шт.

14

150009A1

SHIM

bracket height 0.03 inch thick

1шт.

15

150996A1

WASHER

special bracket mounting

4шт.

16

627-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

hex, full threads 20 - 2.5 x 50 mm, class 10.9

4шт.

11

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

3шт.
