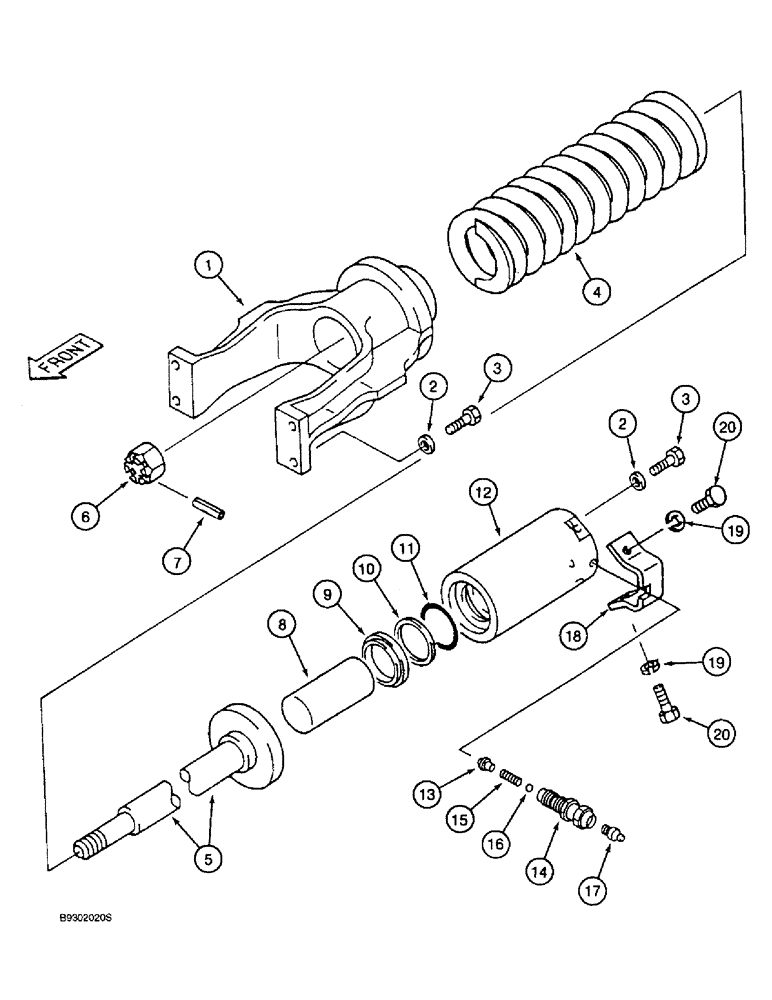

Запчасти Case 9010 (5-08) - TRACK ADJUSTER (11) - TRACKS/STEERING

1

150870A1

YOKE

track adjuster

2шт.

2

150991A1

WASHER

flat, special 16 mm

12шт.

3

626-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

12шт.

4

150549A1

SPRING

track tension

2шт.

5

150553A1

ROD,THREADED

GUIDE tension spring

2шт.

6

112246A1

SLOTTED NUT

hex slotted, special

2шт.

7

738-1663

LOCK PIN,M6 x 63, Slotted

PIN roll, 6 x 63 mm

2шт.

150903A1

CYLINDER

ASSEMBLY track adjuster, Includes: Ref. 8-20

2шт.

8

150756A1

JACK PISTON

ROD piston

1шт.

9

150557A1

SEAL,65mm ID x 79mm OD x 11mm Thk

WIPER rod

1шт.

10

150558A1

BACK-UP RING

RING backup rod seal

1шт.

11

154656A1

O-RING

piston rod, was 152121A1

1шт.

12

150907A1

CYLINDER ASSY.

TUBE cylinder track adjuster

1шт.

150107A1

LUBE NIPPLE

VALVE ASSEMBLY check, Includes: Ref. 13-17

1шт.

13

150120A1

CAP

POPPET check valve

1шт.

14

150112A1

VALVE SEAT

BODY check valve

1шт.

15

150115A1

SPRING

check valve

1шт.

16

150897A1

BALL

check

1шт.

17

153630A1

LUBE NIPPLE

FITTING grease, straight

1шт.

18

151234A1

BRACKET

mounting check valve

1шт.

19

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

WASHER lock 10 mm

2шт.

20

626-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

hex, full threads 10 - 1.5 x 20 mm, class 10.9

2шт.
