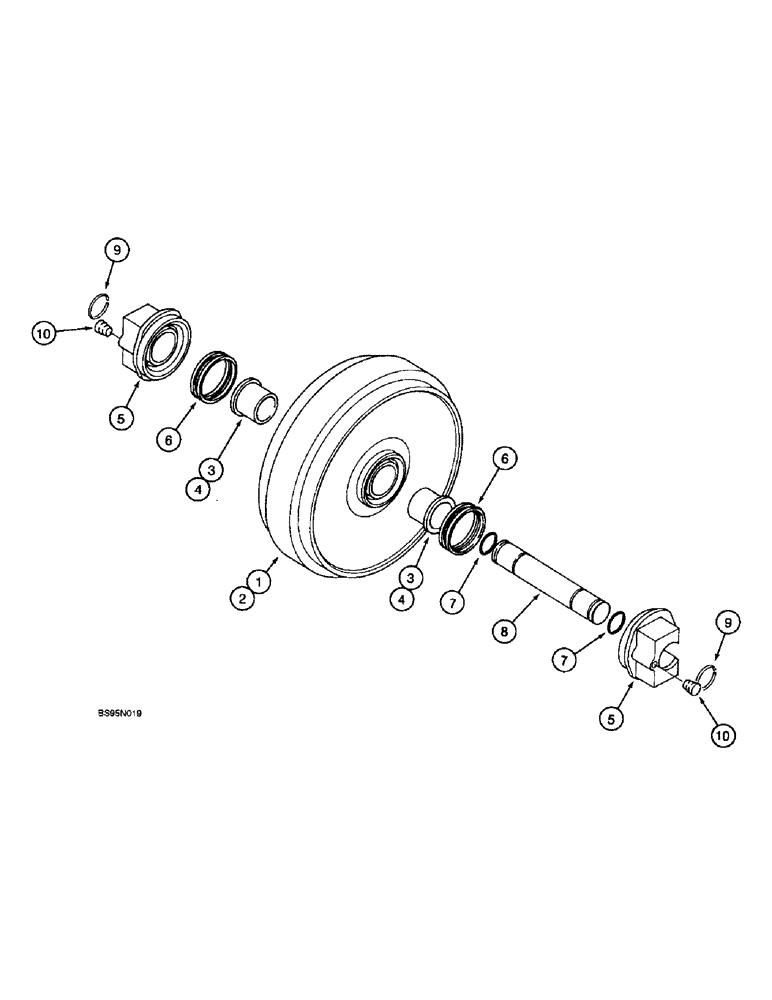

Запчасти Case 9010 (5-06) - IDLER WHEEL (11) - TRACKS/STEERING

158878A1

FRONT IDLER

WHEEL ASSEMBLY idler, Includes: Ref. 1-10

2шт.

1

156710A1

ROLLER

WHEEL idler track, used with 150569A1 bushings, no longer available, order 158878A1 wheel assembly for service

1шт.

2

158879A1

FLEETING PULLEY

WHEEL idler track, used with 158882A1 bushings

1шт.

3

150569A1

BUSHING

idler wheel 62 mm O.D., used with 156710A1

2шт.

4

158882A1

BUSHING,77mm OD x 55mm L

idler wheel 59 mm O.D., used with 158889A1

2шт.

5

158881A1

HUB

idler support was 150752A1

2шт.

6

152729A1

OIL SEAL,81.5mm ID x 104.8mm OD x 29mm Thk

ASSEMBLY face, Includes: two rings and two seals

2шт.

7

154607A1

O-RING

shaft seal

2шт.

8

158880A1

WHEEL SHAFT

SHAFT idler wheel was 150751A1

1шт.

9

160396A1

CLIP

CLIP wire shaft retaining, was 150709A1

2шт.

10

150821A1

PLUG

port

2шт.
