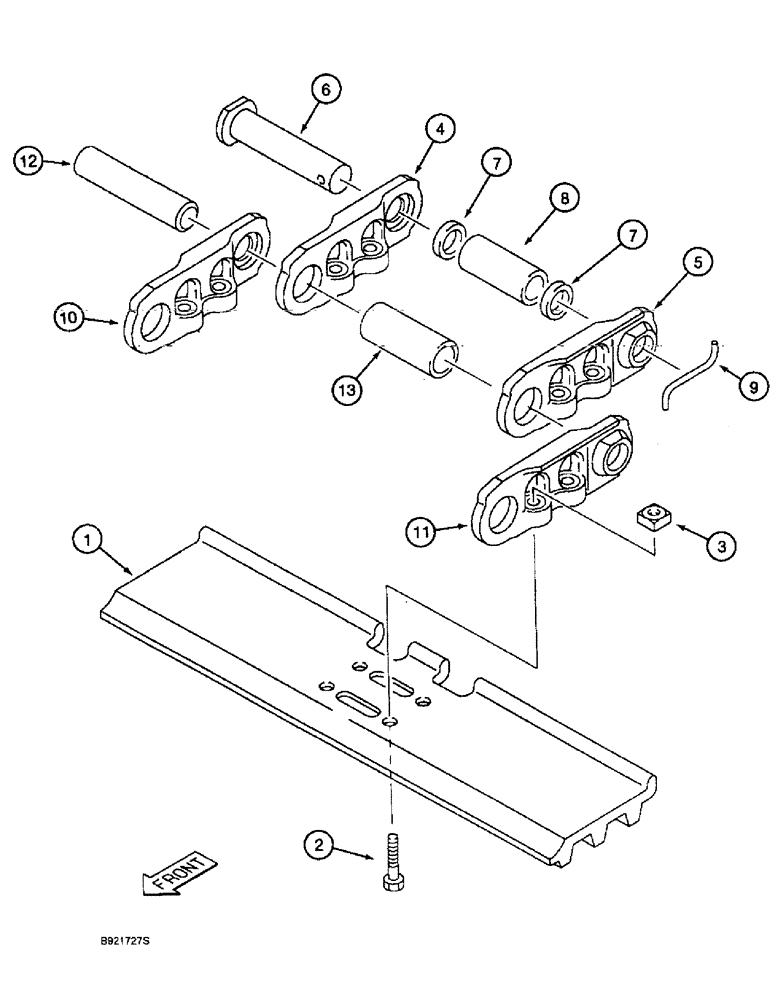

Запчасти Case 9010 (5-04) - TRACK CHAIN AND SHOES (11) - TRACKS/STEERING

150985A1

CHAIN (CE)

CHAIN ASSEMBLY track with 24 inch (600 mm) track shoes

2шт.

158012A1

CHAIN (CE)

CHAIN ASSEMBLY track with 28 inch (700 mm) track shoes, Includes: Ref. 1-13

2шт.

1

151091A1

TRACK SHOE

SHOE track 24 inch (600 mm) three bar grouser, if used

44шт.

1

158013A1

TRACK SHOE

SHOE track 28 inch (700 mm) three bar grouser, if used

44шт.

2

150669A1

BOLT,Spher Hex, M16 x 52mm

BOLT special track shoe mounting

176шт.

3

150414A1

NUT

special shoe retaining

176шт.

150932A1

CHAIN (CE)

CHAIN ASSEMBLY track, without track shoes, Includes: Ref. 4-13

1шт.

4

152430A1

LINK

master track, right-hand

1шт.

5

152431A1

LINK

master track, left-hand

1шт.

6

150687A1

HEADED PIN

PIN master link with head and pin hole

1шт.

7

152112A1

COLLAR

SPACER bushing master pin

2шт.

8

151086A1

BUSHING

master pin

1шт.

9

150690A1

LINCH PIN

PIN lock master track pin

1шт.

10

152426A1

CHAIN (CE)

LINK track standard, right-hand

43шт.

11

152428A1

CHAIN (CE)

LINK track standard, left-hand

43шт.

12

150684A1

PIN

track standard

43шт.

13

151244A1

BUSHING

Track standard

43шт.
