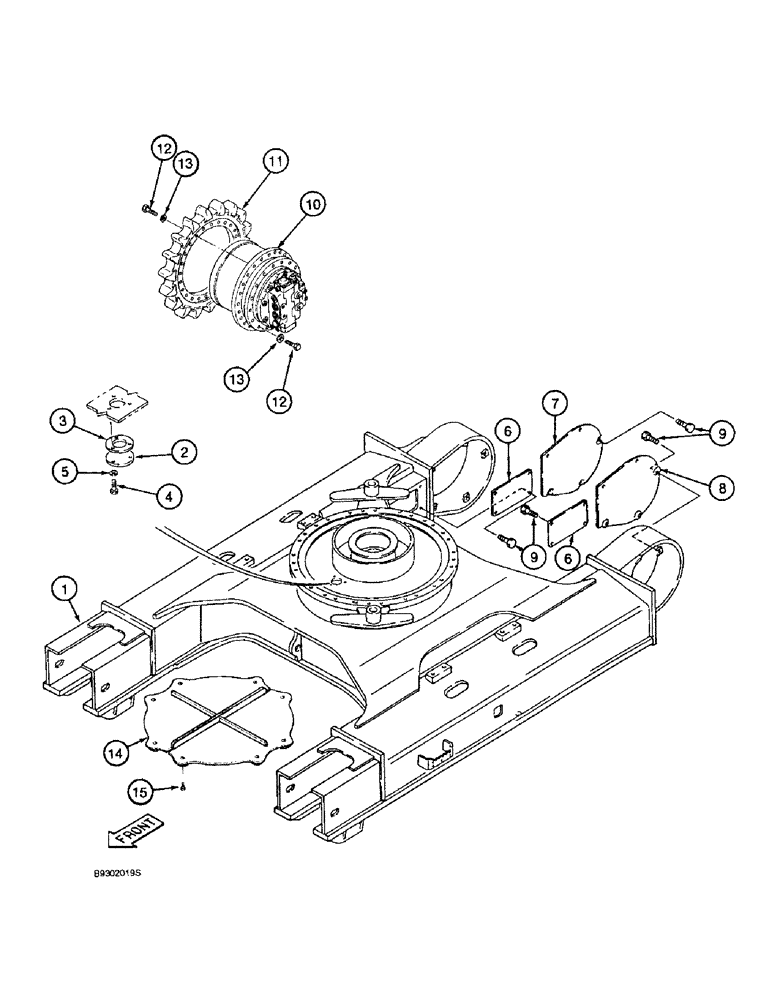

Запчасти Case 9010 (5-02) - TRACK FRAME AND DRIVE SPROCKET (11) - TRACKS/STEERING

1

150970A1

FRAME

track and undercarriage

1шт.

2

150432A1

LID

COVER access, grease fill, turntable gear

1шт.

3

150436A1

PACKING

GASKET access cover

1шт.

4

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

hex, full threads 8 - 1.25 x 16 mm, class 10.9

3шт.

5

892-10008

LOCK WASHER,M8

WASHER - lock, 8 mm

3шт.

6

150895A1

COVER

access hydraulic, Serial Range: lines-motor

2шт.

7

150891A1

COVER

access track drive motor, right-hand

1шт.

8

150889A1

COVER

access track drive motor, left-hand

1шт.

9

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special, access cover

18шт.

10

151018A1

MOTOR

ASSEMBLY track drive parts list Figure 6-2

2шт.

11

150866A1

WHEEL GEAR

SPROCKET track drive

2шт.

12

626-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

62шт.

13

150991A1

WASHER

flat, special 16 mm

62шт.

14

152310A1

COVER

access clean out, turn table gear

2шт.

15

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

8шт.
