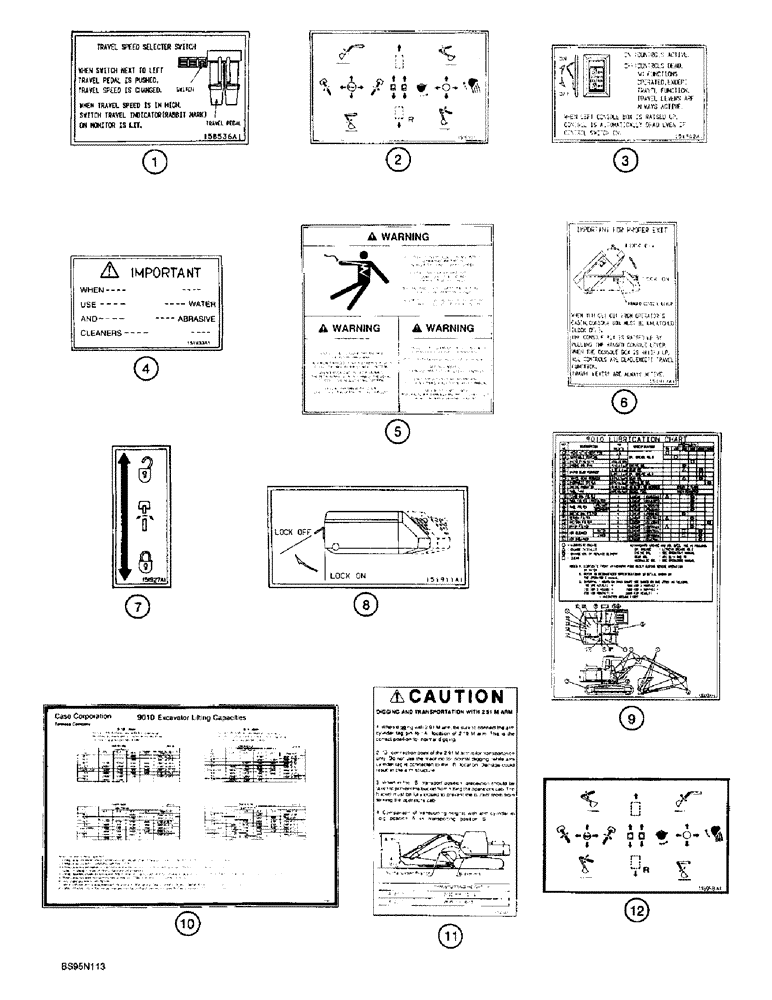

Запчасти Case 9010 (9-74) - DECALS - FRENCH LANGUAGE, OPERATORS COMPARTMENT (09) - CHASSIS

1

158380A1

DECAL

travel speed selecter switch (French)

1шт.

Ref. 1, 3 - 6 and 8 - 11 and ref. on Figure 9-70 are included in 158295A1 French language decal kit.

1шт.

2

151971A1

LABEL

DECAL control pattern

1шт.

3

158277A1

DECAL

control, on - off (French)

1шт.

Ref. 1, 3 - 6 and 8 - 11 and ref. on Figure 9-70 are included in 158295A1 French language decal kit.

1шт.

4

158275A1

DECAL

Important, when cleaning cab windows (French)

8шт.

Ref. 1, 3 - 6 and 8 - 11 and ref. on Figure 9-70 are included in 158295A1 French language decal kit.

1шт.

5

158286A1

DECAL

Warning, electrocution can result from contact (French)

1шт.

Ref. 1, 3 - 6 and 8 - 11 and ref. on Figure 9-70 are included in 158295A1 French language decal kit.

1шт.

6

158278A1

DECAL

Important for proper exit, lock on/lock off (French)

1шт.

Ref. 1, 3 - 6 and 8 - 11 and ref. on Figure 9-70 are included in 158295A1 French language decal kit.

1шт.

7

151927A1

DECAL

swing lock

1шт.

8

158273A1

DECAL

slide lever, lock on/lock off (French)

1шт.

Ref. 1, 3 - 6 and 8 - 11 and ref. on Figure 9-70 are included in 158295A1 French language decal kit.

1шт.

9

158264A1

DECAL

lubrication chart (French)

1шт.

Ref. 1, 3 - 6 and 8 - 11 and ref. on Figure 9-70 are included in 158295A1 French language decal kit.

1шт.

10

158258A1

DECAL

lifting capacity chart (French) 9010

1шт.

Ref. 1, 3 - 6 and 8 - 11 and ref. on Figure 9-70 are included in 158295A1 French language decal kit.

1шт.

11

158281A1

DECAL

Warning, transportation height (French)

1шт.

Ref. 1, 3 - 6 and 8 - 11 and ref. on Figure 9-70 are included in 158295A1 French language decal kit.

1шт.

12

116958A1

DECAL

optional control pattern english language

1шт.
