Запчасти Case 9010 (2-04) - RADIATOR, SUPPORTS AND COOLANT OVERFLOW RESERVOIR (02) - ENGINE

1

REF

INSTRUCTION

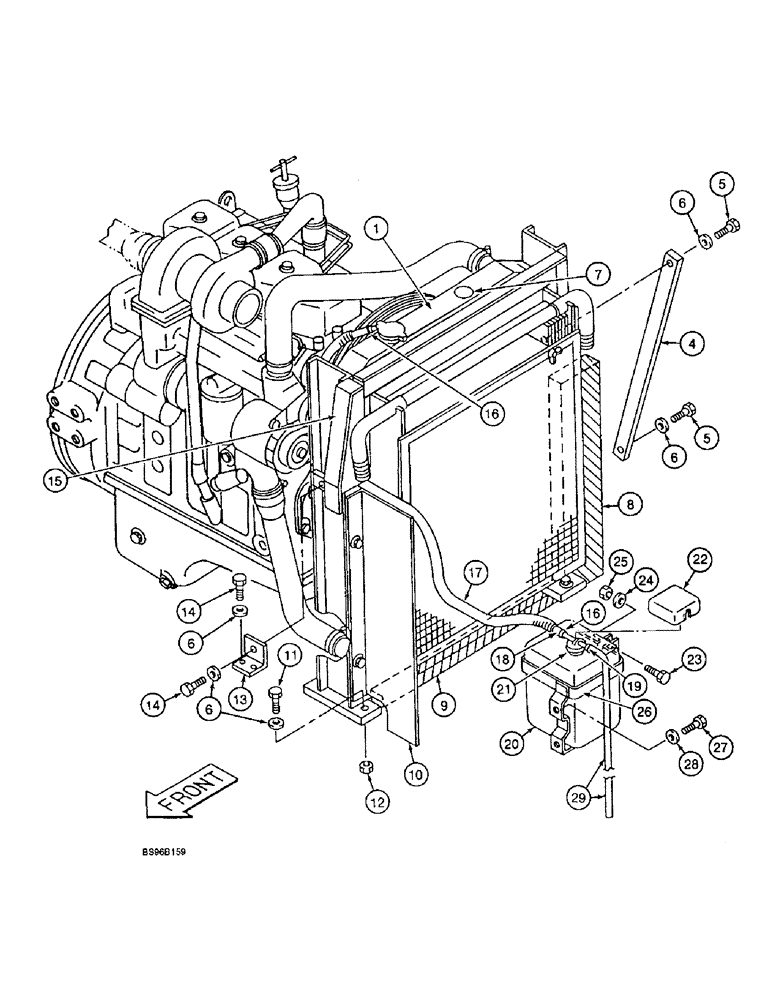

RADIATOR ASSEMBLY, engine and hydraulic oil cooling parts list Figure 2-10

1шт.

4

150748A1

STAY

BRACE radiator mounting rear

1шт.

5

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 25 mm, class 10.9

2шт.

6

150811A1

WASHER

flat, special 12 mm

9шт.

7

151885A1

DECAL

LABEL - coolant

1шт.

8

152440A1

INSULATOR

PAD insulation

1шт.

9

151976A1

INSULATOR

PAD insulation

1шт.

10

151328A1

COVER

center

1шт.

11

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 35 mm, grade 10.9

4шт.

12

829-1412

NUT,M12, Cl 10.9

hex 12 mm - 1.75, class 10

4шт.

13

158014A1

BRACKET mounting, radiator

1шт.

14

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 20 mm, class 10.9

3шт.

15

151331A1

BRACKET

radiator

1шт.

16

153042A1

CLAMP

adjustable

2шт.

17

150270A1

TUBE

SLEEVE, corrugated 39-3/8 inch (1000 mm) long

1шт.

18

150487A1

HOSE

47-1/4 inch (1200 mm) long, Serial Range: radiator-reservoir

1шт.

19

153040A1

COLLAR

CLAMP wire type

1шт.

150021A1

RESERVOIR, COOLANT E

RESERVOIR ASSEMBLY coolant, Includes: Ref. 20, 21 recovery

1шт.

20

NSS

NOT SOLD SEPARAT

RESERVOIR coolant recovery

1шт.

21

150032A1

LIMIT SWITCH

SWITCH limit

1шт.

FOR OVERFLOW RESERVOIR CAP ORDER 1166131A1-SEE ELECTRICAL FOR ILLUSTRATION OF SWITCH

1шт.

22

157140A1

COVER

coolant recovery reservoir

1шт.

23

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

hex, full threads 8 - 1.25 x 20 mm, class 10.9

1шт.

24

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat 9 x 17 x 1.6 mm

1шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

1шт.

26

150465A1

HOLDER

STRAP mounting, reservoir

1шт.

27

627-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 16 mm, class 10.9

2шт.

28

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

2шт.

29

150066A1

HOSE,7.00 mm ID x 800.00 mm

1шт.
