(9-70) - DECALS - FRENCH LANGUAGE, WARNING AND DANGER

Запчасти Case 9010 (9-70) - DECALS - FRENCH LANGUAGE, WARNING AND DANGER (09) - CHASSIS

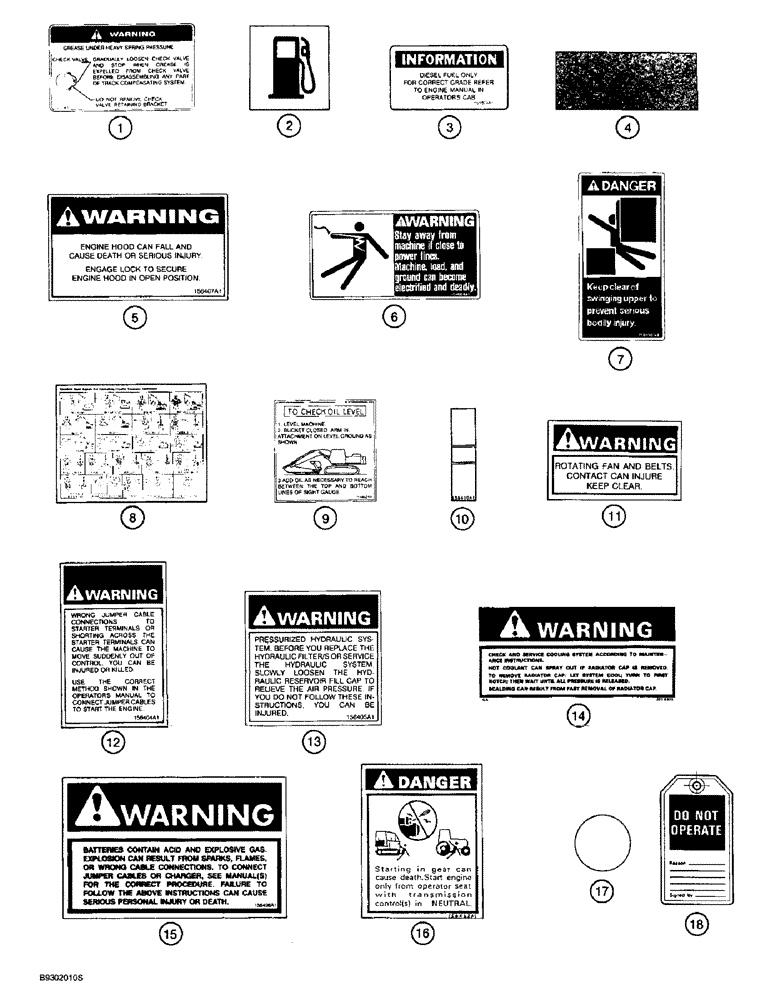

Схема запчастей Case 9010 - (9-70) - DECALS - FRENCH LANGUAGE, WARNING AND DANGER (09) - CHASSIS
9
18
14
2
8
17
4
10
3
11
1
16
7
5
6
12
15
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

158283A1

DECAL

Warning, grease under heavy spring pressure (French)

2шт.

Ref. 1, 3, 5 - 9, 11 - 16 and ref. on Figure 9-74 are included in 158295A1 French language decal kit.

1шт.

2

150104A1

DECAL

fuel tank

1шт.

3

158274A1

DECAL

Information, diesel fuel only (French)

1шт.

Ref. 1, 3, 5 - 9, 11 - 16 and ref. on Figure 9-74 are included in 158295A1 French language decal kit.

1шт.

4

150108A1

ANTI-SKID STRIP

STRIP adhesive, anti-skid

7шт.

5

158288A1

DECAL

Warning, engine hood can fall (French)

1шт.

Ref. 1, 3, 5 - 9, 11 - 16 and ref. on Figure 9-74 are included in 158295A1 French language decal kit.

1шт.

6

158284A1

DECAL

Warning, stay away from machine if close to power line (French)

2шт.

Ref. 1, 3, 5 - 9, 11 - 16 and ref. on Figure 9-74 are included in 158295A1 French language decal kit.

1шт.

7

158285A1

DECAL

Danger, keep clear of swinging upper (French)

2шт.

Ref. 1, 3, 5 - 9, 11 - 16 and ref. on Figure 9-74 are included in 158295A1 French language decal kit.

1шт.

8

158270A1

DECAL

hand signal chart (French)

1шт.

Ref. 1, 3, 5 - 9, 11 - 16 and ref. on Figure 9-74 are included in 158295A1 French language decal kit.

1шт.

9

158272A1

DECAL

to check oil level (French)

1шт.

Ref. 1, 3, 5 - 9, 11 - 16 and ref. on Figure 9-74 are included in 158295A1 French language decal kit.

1шт.

10

156410A1

DECAL

oil level gauge

1шт.

11

321-4324

DECAL

Warning, rotating fan and belts (French)

1шт.

Ref. 1, 3, 5 - 9, 11 - 16 and ref. on Figure 9-74 are included in 158295A1 French language decal kit.

1шт.

12

321-6720

DECAL

Warning, wrong jumper cable connections to starter terminals (French)

1шт.

Ref. 1, 3, 5 - 9, 11 - 16 and ref. on Figure 9-74 are included in 158295A1 French language decal kit.

1шт.

13

158290A1

DECAL

Warning, pressurized hydraulic system (French)

1шт.

Ref. 1, 3, 5 - 9, 11 - 16 and ref. on Figure 9-74 are included in 158295A1 French language decal kit.

1шт.

14

321-6701

DECAL

Warning, check and service cooling system (French)

1шт.

Ref. 1, 3, 5 - 9, 11 - 16 and ref. on Figure 9-74 are included in 158295A1 French language decal kit.

1шт.

15

321-6719

DECAL

Warning, batteries contain acid and explosive gas (French)

1шт.

Ref. 1, 3, 5 - 9, 11 - 16 and ref. on Figure 9-74 are included in 158295A1 French language decal kit.

1шт.

16

158287A1

DECAL

Danger, starting in gear can cause death (French)

1шт.

Ref. 1, 3, 5 - 9, 11 - 16 and ref. on Figure 9-74 are included in 158295A1 French language decal kit.

1шт.

17

151756A1

PLATE WASHER

PLATE bumper 2 inch circle

5шт.

18

321-4614

TAG

do not operate

1шт.
