Запчасти Case 9010 (9-68) - DECALS - ENGLISH LANGUAGE, WARNING AND DANGER (09) - CHASSIS

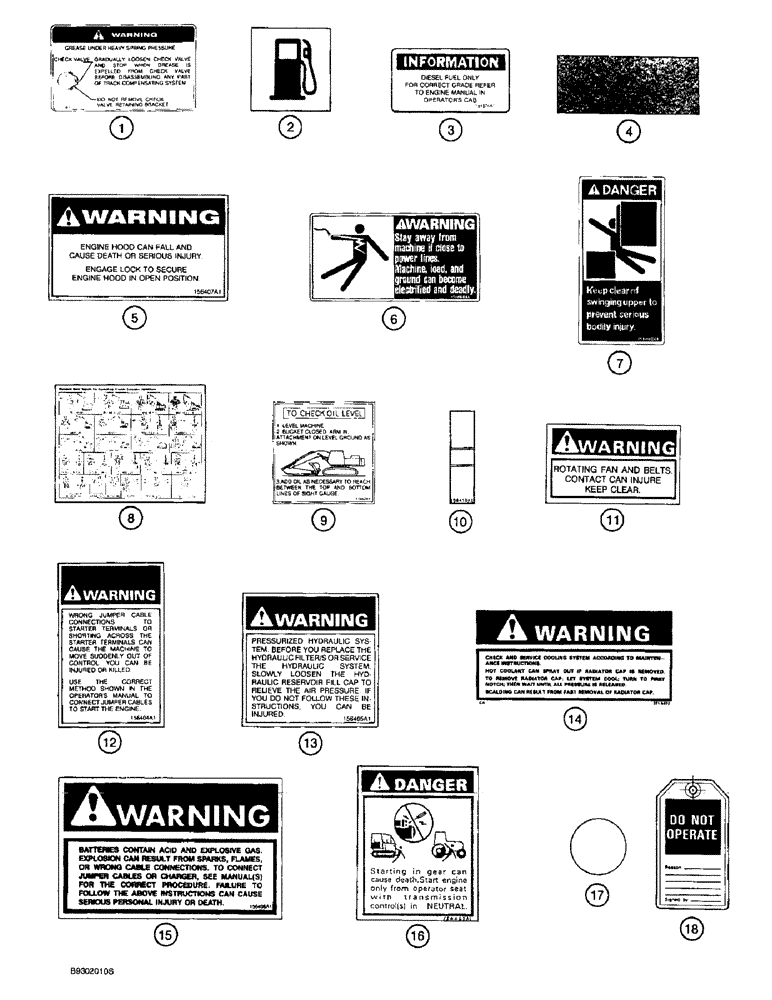

Схема запчастей Case 9010 - (9-68) - DECALS - ENGLISH LANGUAGE, WARNING AND DANGER (09) - CHASSIS
10
1
7
5
2
17
18
13
12
3
9
4
8
15
11
16
14
6

Артикул

Название

Примечание

Количество

1

151847A1

LABEL

DECAL Warning, grease under heavy spring pressure

2шт.

2

150104A1

DECAL

fuel tank

1шт.

3

151874A1

DECAL

Information, diesel fuel only

1шт.

4

150108A1

ANTI-SKID STRIP

STRIP adhesive, anti-skid

7шт.

5

156407A1

DECAL

Warning, engine hood can fall

1шт.

6

151864A1

LABEL

DECAL Warning, stay away from machine if close to power line

2шт.

7

151880A1

DECAL

Danger, keep clear of swinging upper

2шт.

8

151869A1

LABEL

DECAL hand signal chart

1шт.

9

151852A1

LABEL

DECAL to check oil level

1шт.

10

156410A1

DECAL

oil level gauge

1шт.

11

321-3596

DECAL

Warning, rotating fan and belts

1шт.

12

321-6718

DECAL

Warning, wrong jumper cable connections to starter terminals

1шт.

13

321-6666

DECAL

Warning, pressurized hydraulic system

1шт.

14

321-6672

DECAL

Warning, check and service cooling system

1шт.

15

321-6714

DECAL

Warning, batteries contain acid and explosive gas

1шт.

16

321-7040

DANGER DECAL

DECAL, DANGER, Starting in gear can cause death

1шт.

17

151756A1

PLATE WASHER

PLATE bumper 2 inch circle

5шт.

18

321-4614

TAG

do not operate

1шт.

Выбрано товаров: 18
