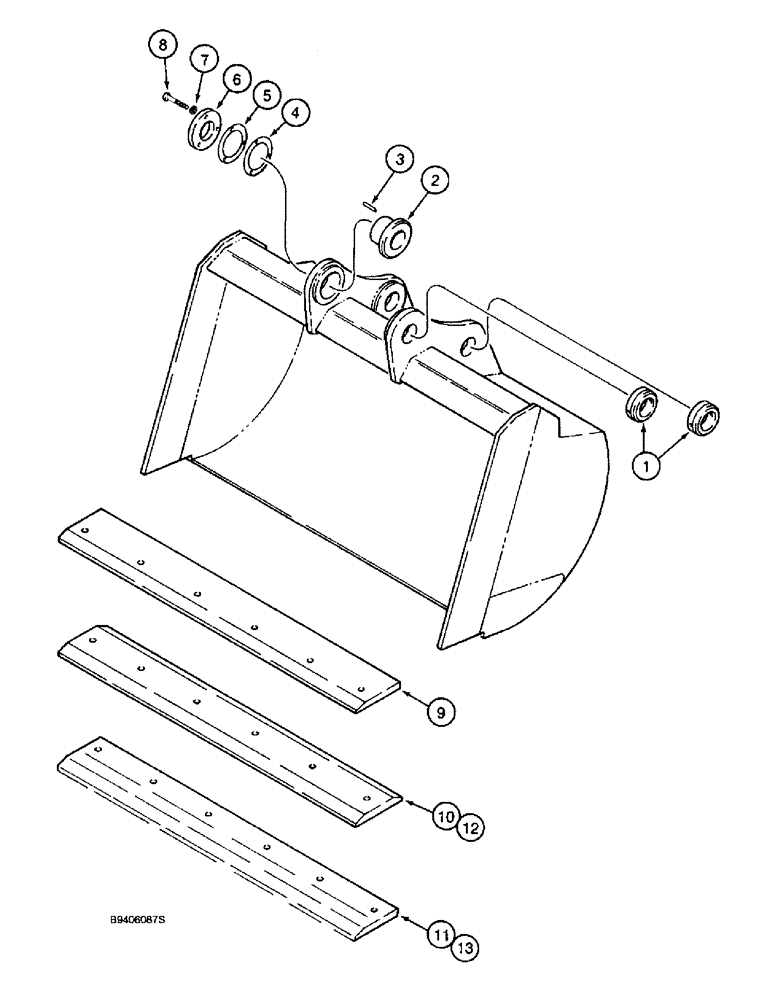

Запчасти Case 9010 (9-60) - H & H BUCKETS, DITCH, DITCH BUCKET ASSEMBLY (09) - CHASSIS

REF

INSTRUCTION

BUCKET ASSEMBLY 48 inch (1220 mm), 0.72 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET ASSEMBLY 60 inch (1524 mm), 0.90 cu. yd., Includes: Ref. 1-9

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

125658A1

LATCH

BUSHING bucket, with locking collar

2шт.

2

125653A1

BUSHING

bucket, adjustable

1шт.

3

125657A1

PIN

dowel, special

2шт.

4

125654A1

SHIM

plate mounting

1шт.

5

125655A1

SHIM

plate mounting

1шт.

6

125656A1

RETAINER

PLATE bushing

1шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

8

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

3шт.

9

125743A1

EDGE

cutting, center 48 inch (1220 mm) bucket

1шт.

9

125741A1

EDGE

cutting, center 60 inch (1524 mm) bucket

1шт.

10

113073A1

EDGE, CUTTING

EDGE cutting, reversible 48 inch (1220 mm) bucket, optional H & H Mfg. Bolt-on Ctr Cutting Edges w/Hardware

1шт.

11

113076A1

EDGE, CUTTING

EDGE cutting, serrated 48 inch (1220 mm) bucket, optional H & H Mfg. Bolt-on Ctr Cutting Edges w/Hardware

1шт.

12

113074A1

EDGE, CUTTING

EDGE cutting, reversible 60 inch (1524 mm) bucket, optional H & H Mfg. Bolt-on Ctr Cutting Edges w/Hardware

1шт.

13

113079A1

EDGE, CUTTING

EDGE cutting, serrated 60 inch (1524 mm) bucket, optional H & H Mfg. Bolt-on Ctr Cutting Edges w/Hardware

1шт.
