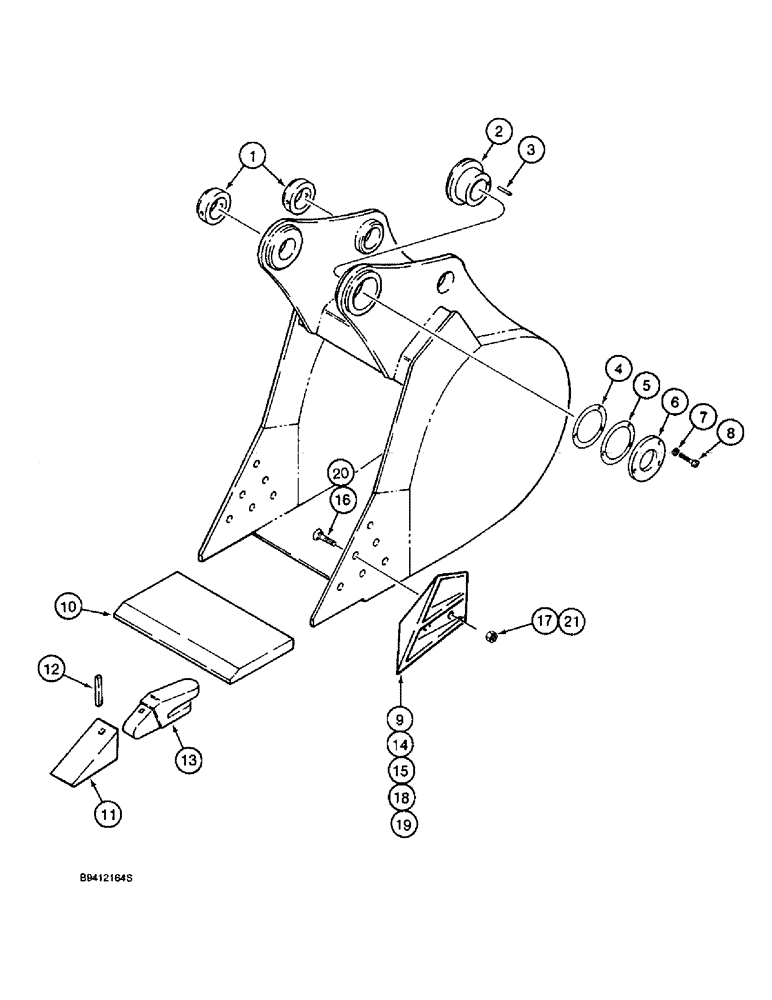

Запчасти Case 9010 (9-58) - H & H BUCKETS, GEN. PURP/HVY DTY-STD CAP., GENERAL PURPOSE-STD CAPACITY, HVY DTY - STD CAPACITY (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
BUCKET, 24 inch (610 mm), with 4 teeth, 0.49 cu. yd.
1шт.
Order bucket assembly from Machinery Price List.
1шт.
REF
INSTRUCTION
BUCKET, 30 inch (762 mm), with 4 teeth, 0.65 cu. yd.
1шт.
Order bucket assembly from Machinery Price List.
1шт.
REF
INSTRUCTION
BUCKET, 36 inch (914 mm), with 5 teeth, 0.76 cu. yd.
1шт.
Order bucket assembly from Machinery Price List.
1шт.
REF
INSTRUCTION
BUCKET, 42 inch (1067 mm), with 6 teeth, 0.92 cu. yd.
1шт.
Order bucket assembly from Machinery Price List.
1шт.
REF
INSTRUCTION
BUCKET, 24 inch (610 mm), with 4 teeth, 0.49 cu. yd., heavy duty, standard capacity
1шт.
Order bucket assembly from Machinery Price List.
1шт.
REF
INSTRUCTION
BUCKET, 30 inch (762 mm), with 4 teeth, 0.64 cu. yd., heavy duty, standard capacity
1шт.
Order bucket assembly from Machinery Price List.
1шт.
REF
INSTRUCTION
BUCKET, 36 inch (914 mm), with 5 teeth, 0.76 cu. yd., heavy duty, standard capacity, Includes: Ref. 1-9
1шт.
Order bucket assembly from Machinery Price List.
1шт.
1
125658A1
LATCH
BUSHING bucket, with locking collar, heavy duty, standard capacity
2шт.
2
125653A1
BUSHING
bucket, adjustable, heavy duty, standard capacity
1шт.
3
125657A1
PIN
dowel, special, bucket assembly, heavy duty, standard capacity
2шт.
4
125654A1
SHIM
plate mounting, bucket assembly, heavy duty, standard capacity
1шт.
5
125655A1
SHIM
plate mounting, bucket assembly, heavy duty, standard capacity
1шт.
6
125656A1
RETAINER
PLATE bushing, bucket assembly, heavy duty, standard capacity
1шт.
7
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
3шт.
8
326-832
BOLT,Hex, 1/2" - 13 x 2", Gr 8
Bucket assembly, heavy duty, standard capacity Hex, 1/2"-13 x 2", G8
3шт.
9
NSS
NOT SOLD SEPARAT
EDGE cutting, side see below2, bucket assembly, heavy duty, standard capacity
1шт.
10
125711A1
PLATE
EDGE cutting 1-1/4 (29) x 24 inch (610 mm) bucket, heavy duty, standard capacity
1шт.
10
125712A1
PLATE
EDGE cutting 1-1/4 (29) x 30 inch (762 mm) bucket, heavy duty, standard capacit
1шт.
10
125713A1
PLATE
EDGE cutting 1-1/4 (29) x 36 inch (914 mm) bucket, heavy duty, standard capacity
1шт.
10
125714A1
PLATE
EDGE cutting, reversible 1-1/4 (29) x 42 inch (1067 mm) bucket, heavy duty, standard capacity
1шт.
11
122665A1
TOOTH
standard point, bucket assembly, heavy duty, standard capacity
1шт.
See Figures 9-72 and 9-74 for point, pin and shank options.
1шт.
12
N14173
PIN,12.7mm OD x 76.2mm L
flex, point, bucket assembly, heavy duty, standard capacity
1шт.
See Figures 9-72 and 9-74 for point, pin and shank options.
1шт.
13
122667A1
BUCKET TOOTH SHANK
SHANK tooth also called an adapter
1шт.
See Figures 9-72 and 9-74 for point, pin and shank options.
1шт.
112985A1
EDGE, CUTTING
KIT side cutter blade 3 inch, bucket assembly, heavy duty, standard capacity, Includes: Ref. 14-17
1шт.
14
125922A1
CUTTER
BLADE sidecutter, left-hand 3 inch, bucket assembly, heavy duty, standard capacity
1шт.
15
125924A1
CUTTER
BLADE sidecutter, right-hand 3 inch, bucket assembly, heavy duty, standard capacity
1шт.
16
320-21440
CARRIAGE BOLT,#3, 7/8" - 9 x 2 1/2", Gr 8
BOLT plow, #3 head 7/8 NC x 2-1/2 inch, grade 8, bucket assembly, heavy duty, standard capacity
10шт.
17
232-41314
LOCK NUT,7/8"-9, GC
NUT, LOCK, , Bucket assembly, heavy duty, standard capacity 7/8"-9, GC
10шт.
19
125928A1
CUTTER
BLADE sidecutter, right-hand 4 inch, bucket assembly, heavy duty, standard capacity
1шт.
20
320-21448
CARRIAGE BOLT,#3, 7/8" - 9 x 3", Gr 8
BOLT plow, #3 head 7/8 NC x 3 inch, grade 8, bucket assembly, heavy duty, standard capacity
10шт.
21
232-41314
LOCK NUT,7/8"-9, GC
NUT, LOCK, , Bucket assembly, heavy duty, standard capacity 7/8"-9, GC
10шт.
22
112731A1
CATALOG
RIPPER frost with one tooth, not shown, bucket assembly, heavy duty, standard capacity
1шт.
Frost ripper art and parts list information to be provided at a later date.
1шт.
Выбрано товаров: 43
